Industrial monitor 5 Wire Resistive Touch Screen Panel 15 Inch

Size: 15"

Touch Think offers a full range of LCD TFT displays for professional industrial and applications. They can be used for indoor and outdoor applications also can perform perfectly under bright sunlight or harsh environments.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM

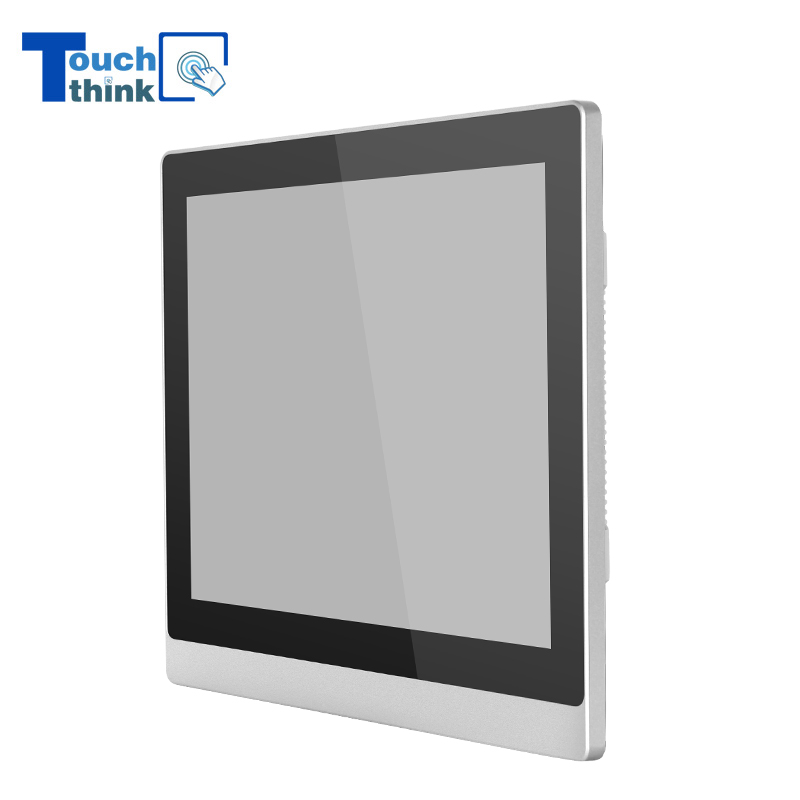

Industrial Monitor Resistive Touch Screen Panel 15"

  Touch Think 15-inch industrial-grade sunlight readable IP65 LCD TFT monitors, are designed for

use throughout a wide range of harsh indoor and outdoor applications. At all stages of the produc-

tion process, these LCD monitors are rigorously tested to ensure compliance with various industry

standards and are engineered to withstand the effects of severe environments such as dust, water

and dirt intrusion. These monitors perform perfect beyond ordinary commercial level monitors. This

industrial monitor with high bright and sunlight readable are ideal for use in any high ambient light

condition, and will provide the intensity and brilliance for application requires.

Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch Embedded

Features of Touch Think Industrial IP65 Monitors:

1. This monitor is suitable for light industrial applications and moderately rugged conditions.

2. Aluminum alloy casing, suitable for heavy and light industrial conditions.

3. True flat panel, compact design, suitable for limited-space device.

4. Fanless heat-dissipation design with low power consumption.

5. OSD for contrast ratio, brightness adjustment and other adjustments.

6. A variety of touch screen technology to meet multi applications: capacitive touch, resistive touch

    and non-touch screen for optional.

7. 1024×768 resolution, 300nits standard brightness. Higher brightness is available.

8. Support plug-and-play, easy-to-use for customers.

9. Standard VESA mount threaded hole pattern for universal mounting.

10. Industrial grade A, A+ level perfect LED backlight high definition screen.

Touch Think Industrial Monitor Customization Upgrade

Industrial monitor 5 Wire Resistive Touch Screen Panel 15"

Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch Embedded

Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch Embedded

Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch Embedded


















Screen parametersScreen size15 inch
ModelTPC150-M42
Resolution1024*768
Proportion4:3 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, service life ≥50000h
Display color

16.7M

Visual angle160/160 (178° full view angle customizable )
Brightness 400cd/m2 (high brightness customizable )
Touch-typeResistive (capacitive / mouse control for optional)
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticcontact 4KV-air 8KV (≥16KV can be customized)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (-30°C~80°C customizable)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian, etc.
O/I interface parametersSignal Interface DVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial Monitors are widely used in the following fields:

1. Industrial field control display;

2. Embedded in various devices as display devices;

3. As a display device in the host of telecommunications and network rooms;

4. Monitors for trains, subway stations, and ports;

5. Vehicle-mounted displays on train, subway, car;

6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;

7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.



Touch Think industrial monitors support OEM/ODM customization service.


Screen Customization

1. High-light screen: default with 400cd/m2, support customization up to 1500cd/m2.

2. Photosensitive head: support screen brightness automatically adjust based on ambient light.

3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.

5. High-resolution screen: higher resolution than standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items

1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
