Wall Mount All in One PC 10.4"

Size: 10.4

Touch Think industrial all-in-one tablet PC with IP65 rated water proof and dust-proof.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial panel pc


10.1 inch industrial panel pc


10.4 inch industrial panel pc


11.6 inch industrial panel pc


12 inch industrial panel pc


15 inch industrial panel pc


15.6 inch industrial panel pc


17 inch industrial panel pc


17.3 inch industrial panel pc


19 inch industrial panel pc


19.1 inch industrial panel pc


21.5 inch industrial panel pc

  • product description
  • Product parameters
  • Application
  • OEM/ODM

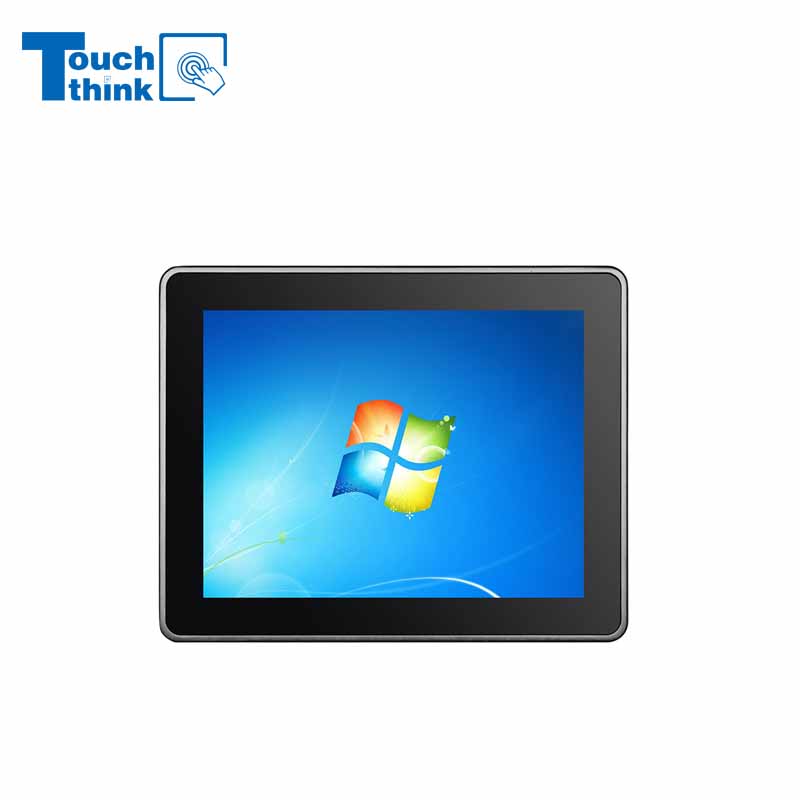

Industrial-grade Wall Mount All in One PC 10.4"

This Touch Think 4th edition of 10.4 inch panel PC provide Windows 7/8/10 OS is a perfect choice for indoor

outdoor application environments. They are designed to meet durability standards in harsh industrial conditions,

IP65 rated dust-proof and water-proof, also anti-vibration, anti-interference. Support interface customizable.


Highlight of Touch Think Industrial Panel PCs

● Display size: 10.4 inch.

● Definition: 1024*768.

● Capacitive or resistive touch screen.

● 10mm thickness for front bezel, impact-resistant.

● IP65 dust-proof and waterproof for front panel.

 Aluminum alloy durable housing, easy-to-maintain.

● Fanless heat dissipation design.

● Easy-to-use, support plug-and-play.

● Support Windows, Linux and Android operating system.

● CE, RoHS, CCC and ISO9001 quality certification system approved.

● Support desktop, embedded, VESA and wall-mounted installation methods.

● Sunlight readable LCD displays, well-performed under direct bright sunlight.

● Self-developed motherboard, more stable performance, low power consumption.

● Industrial aesthetic appearance, compact frame design, small size, wide picture display.

Wall Mount All in One PC 10.4"

Wall Mount All in One PC 10.4"

Wall Mount All in One PC 10.4"

Wall Mount All in One PC 10.4"

Wall Mount All in One PC 10.4"

Wall Mount All in One PC 10.4"

Wall Mount All in One PC 10.4"











Screen parametersScreen size10.4 inch
ModelTouchTEC-104A
Resolution1024*768
Proportion 4:3 square size screen
Motherboard parameters CPUintel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7)
Hard Disk32G SSD (Optional 64G SSD/500G HDD)
Memory 2G DDR3 (supports 8G DDR3)
Audio Integrated Audio Chip
NetworkIntegrated Gigabit LAN
Wireless network built-in wifi antenna, support wireless connection
Graphics Cards Integrated Graphics
System pre-installed windows7, support other version
Speakers available

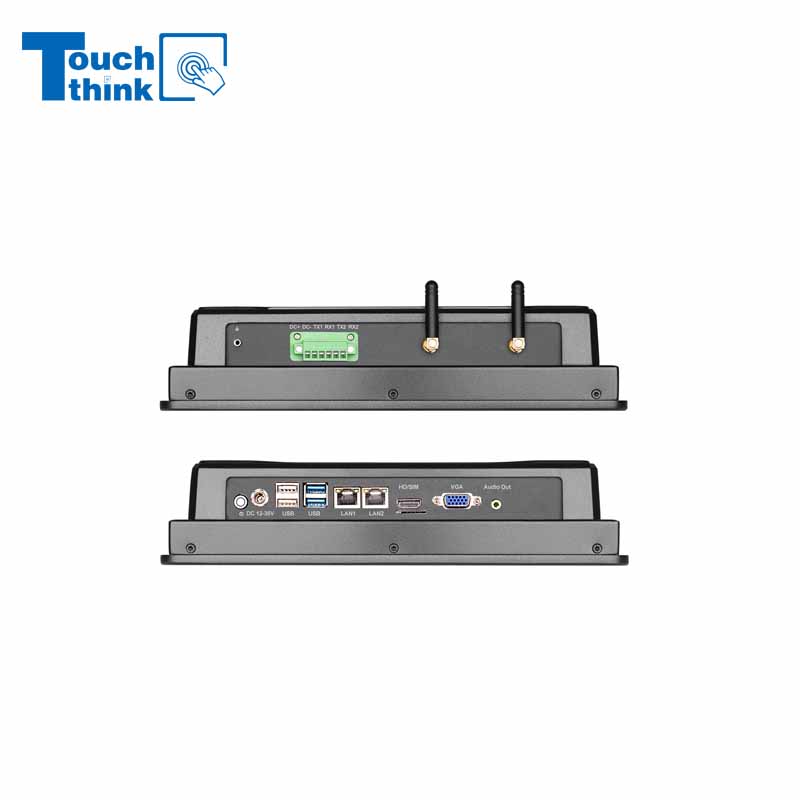

Interface parametersUSB interface8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1
Serial Interface8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol
WIFI connector WIFI antenna*1
Power InterfaceDC 12V*1
High-definition interfaceHDMI*1
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ-45*1
Audio InterfaceAudio I/O
Support extensionsMultiple industry interface support customization
Display parametersColor16.7M
Point distance 0.264mm
Screen Panel

 Industrial control panel

Contrast1000:1
Display brightness400cd/m2 (customizable high brightness above 400cd/m2)
View angle(H160 (V) 160, customizable wide viewing angle 178°
Backlight type LED backlit screen Lifetime ≥ 50000h
Gray-scale response time 5ms
Touch OptionalResistive/Capacitive/Infrared Touch Screen

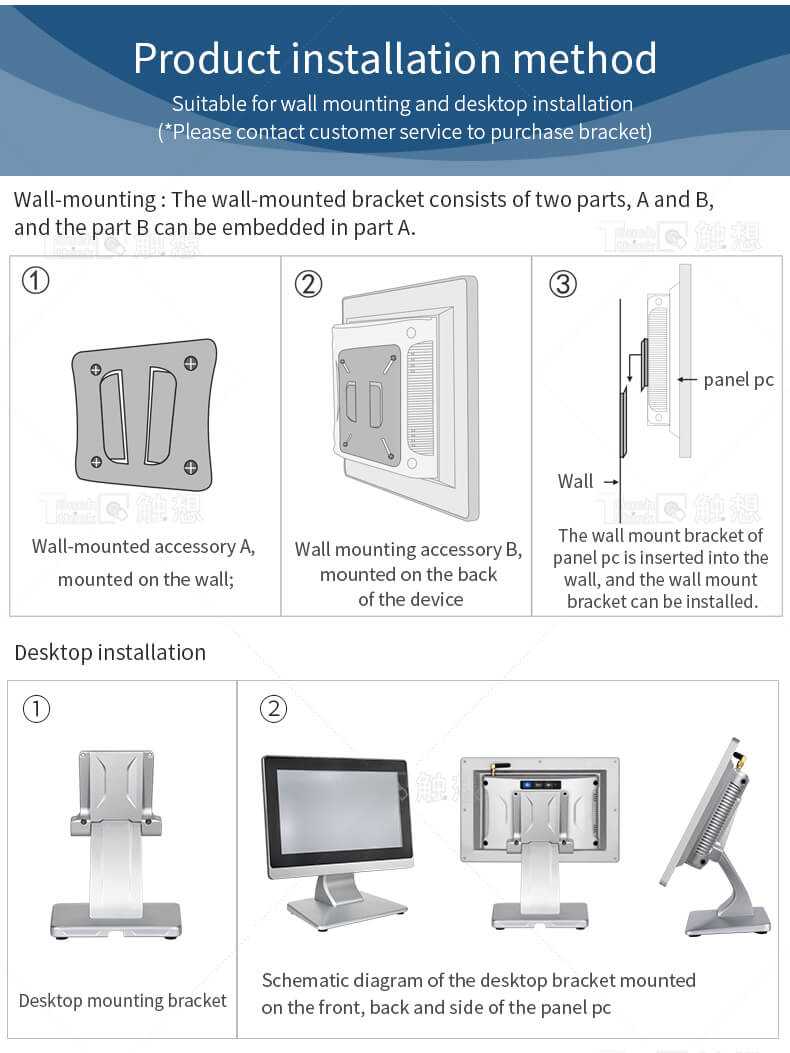

Installation methodEmbedded, desktop, wall-mounted, cantilever
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~60°C
Relative humidity0%-65% (without condensation)
MaterialFull body made of aluminum alloy material
Color Silver Black
Warranty PolicyOne year free warranty
Degree of protection Front panel IP65 dustproof and waterproof
Packing list Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card


Wall-mounted industrial all in one panel PCs are widely used in following applications:

Elevator

In recent years, the convenience brought by the Internet has changed people's way of life dramatically. People are not surprised by the information advertisement on the network, which leads to the highly subdivided advertising information. If enterprises want to advertise, intelligent devices are one of the best platforms to display ADs, so you may notice that there are kinds of big and small size of screens hang on everywhere, including the elevator.

Shopping Malls

The application of building wall-mounted all in one PC with touchscreen is not limited to the application of elevators, but also can be placed in various occasions and scenes, such as cinema and television city, retail stores, high-end apartments, office buildings and other applications. The effect of each occasion application is a breathtaking and targeted target group, in the same place, at different times, let the audience repeatedly contact. It is bound to have a profound memory of the advertising brand, and at the same time, it can make the brand spirit become a symbol at a higher level, thus enhancing brand added value.

Teaching Field

The general application of teaching touch-in-one machine is 55-70 inches in size and 84 inches in larger size. The application of teaching all-in-one machine with touch screen perfectly solves the problem of chalk dust pollution in class. And for small size of all in one panel PC, such as 7" ~21.5" screen, they can be used as part of intelligent campus system, such as in the school entrance and examination room gate for ID verification. The all-in-one design of the panel PC is simple and convenient to install and avoid the cumbersome wiring trouble. Teaching all-in-one PC makes teaching easier for teachers and students to learn more enthusiastically, which improves the efficiency of teaching and learning.

Query Field

At present, many communities have installed the community touch query machine, the machine size ranges from 15 inch to 21.5 inch. With the community touch query machine, resident can usually display the latest community announcements or news information to the masses on the one machine, and the resident can also handle some relatively simple business on the touch query machine, which not only solves the problem of staff commuting, but also avoids the contradiction caused by the emotions caused by manual service.

Commercial Field

Compared with the previous means of manual advertising propaganda, the touch advertising machine is more convenient and efficient. Businessmen can first make advertisements on other computers, and then send them to multiple touch advertising machines through terminals at the same time. The display content can be changed at any time, and the display content can be more diversified. Novel machines and diversified display contents are easy to attract passers-by's eyes and improve their attention, so as to achieve the purpose of expanding advertising effect and improving economic efficiency.

Compared with traditional TV screens, wall-mounted all-in-one panel PC abandons traditional wooden knots in design and workmanship, on the contrary, it is lighter and more energy-saving, and becomes more intelligent in function. Therefore, wall-mounted all-in-one panel PC with touch screen has become an effective way for enterprises to improve their marketing power.

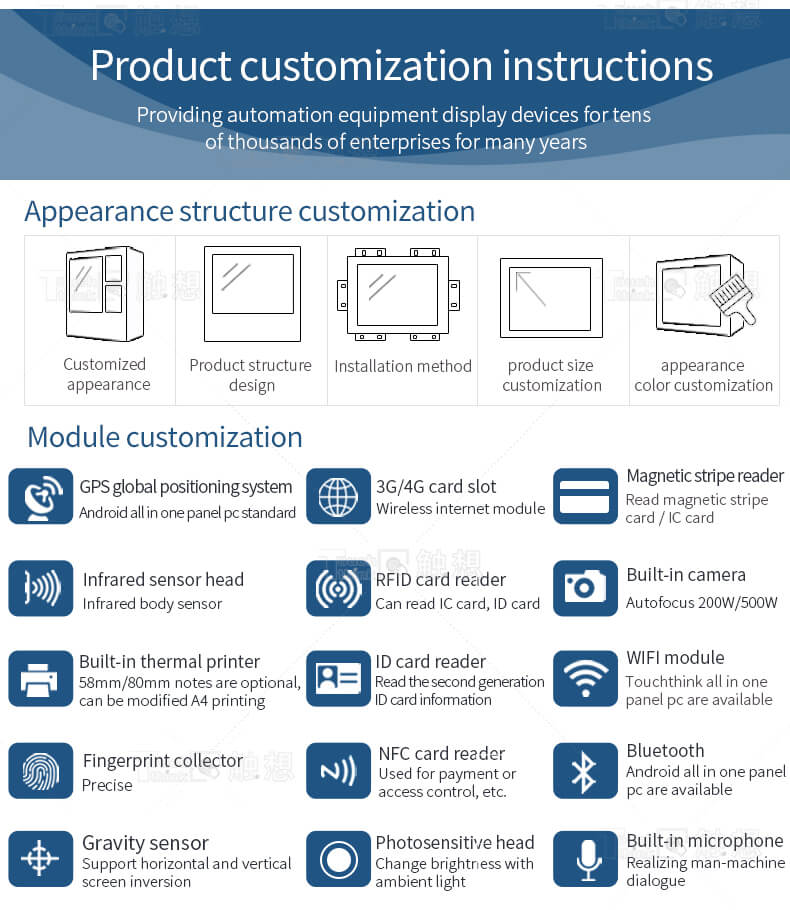

Screen Customization for Touch Think Industrial All-in-one Panel PC

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: industrial monitor, resistive touch screen, capacitive touch screen, IR touch screen.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen size for massive quantity orders.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.

Other Customization for Touch Think Industrial Monitors

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial monitors can be customized fully-sealed dust-proof and waterproof.
