Size: 10.1" ~ 27"
This IP65 wall-mounted industrial touch screen monitor is a powerful, reliable, and durable solution for industrial automation, especially in demanding environments. With waterproof construction, rugged design, flexible mounting, and long-term stability, it provides everything needed for modern HMI applications.
Product Color

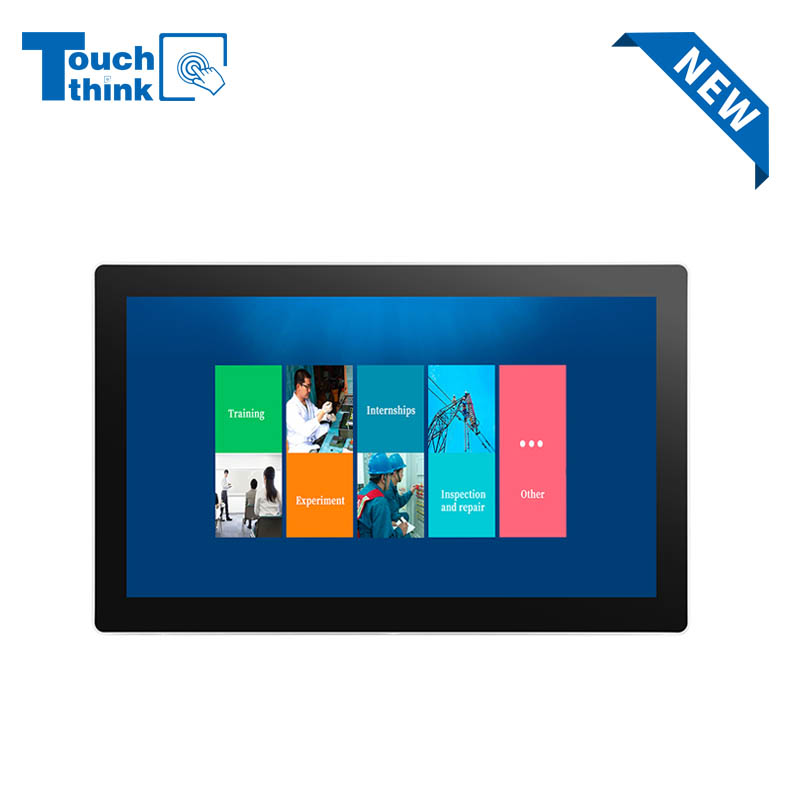

IP65 Wall-Mounted Industrial Touch Screen Monitor | Waterproof HMI Display
Product Model Quick Guide
| Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now! |
| TPC101-M29 | 10.1" | 1280*800 | 16:10 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC104-M29 | 10.4" | 1024*768 | 4:3 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC116-M29 | 11.6" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC120-M29 | 12" | 1024*768 | 4:3 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC133-M29 | 13.3" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC150-M29 | 15" | 1024*768 | 4:3 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC156-M29 | 15.6" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC170-M29 | 17" | 1280*1024 | 5:4 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC173-M29 | 17.3" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC185-M29 | 18.5" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC190-M29 | 19" | 1280*1024 | 5:4 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC215-M29 | 21.5" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC238-M29 | 23.8" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
| TPC270-M29 | 27" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
What Is an IP65 Wall-Mounted Industrial Touch Screen Monitor?
An IP65 industrial monitor is a rugged display designed to resist water spray, dust, oil, and environmental contaminants. The "IP65 "rating means:
6 = Completely dust-tight protection
5 = Resistant to water jets from any direction
When combined with wall-mounted installation, the monitor becomes a highly stable, space-saving HMI solution that can be securely attached to machinery, control panels, or walls in industrial facilities.
Key Features of an IP65 Wall-Mounted Waterproof HMI Display
1. IP65 Waterproof Front Panel
The sealed front bezel protects against water and cleaning chemicals, making it ideal for:
Food & beverage processing
Pharmaceutical production
Car washes
Outdoor or semi-outdoor installations
Operators can use the monitor even in wet or washdown environments without risk of damage.
2. Industrial-Grade Touch Technology
Depending on the application, the monitor can support:
Projected Capacitive Touch (fast, multi-touch, glove-friendly)
Resistive Touch (durable, works with wet hands, styluses, or gloves)
Non-touch: Mouse control.
These three options offer reliable performance, even in environments where dust, oil, or moisture are present.

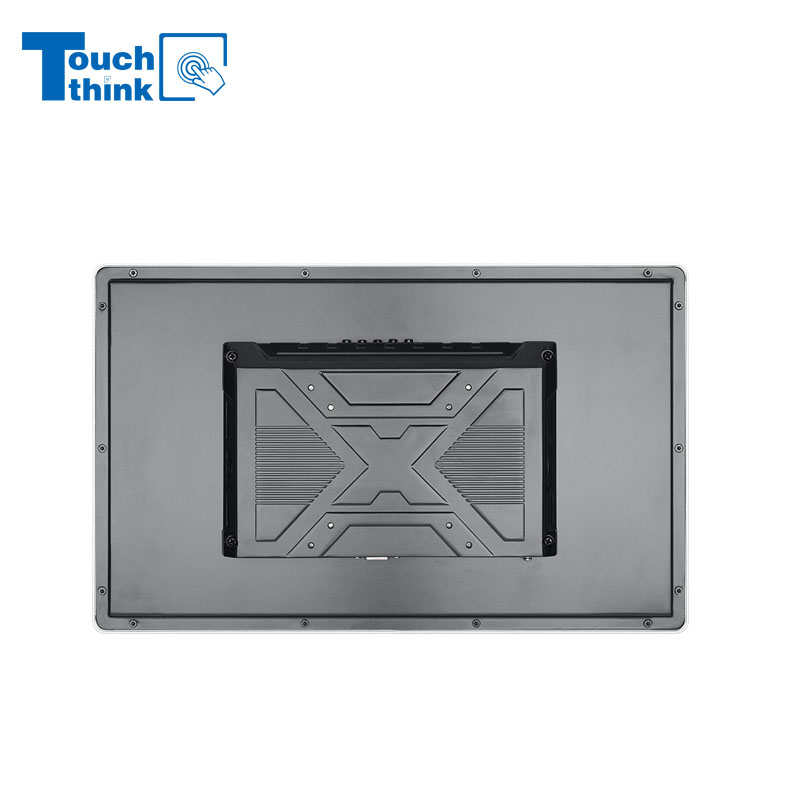

3. Rugged Housing for Harsh Conditions
The housing is typically made of:
- Aluminum alloy or stainless steel
- Anti-corrosion coated surfaces
- Waterproof sealing rings
- Fanless heat dissipation for silent and reliable operation
This robust structure protects against impact, vibration, and chemical exposure.

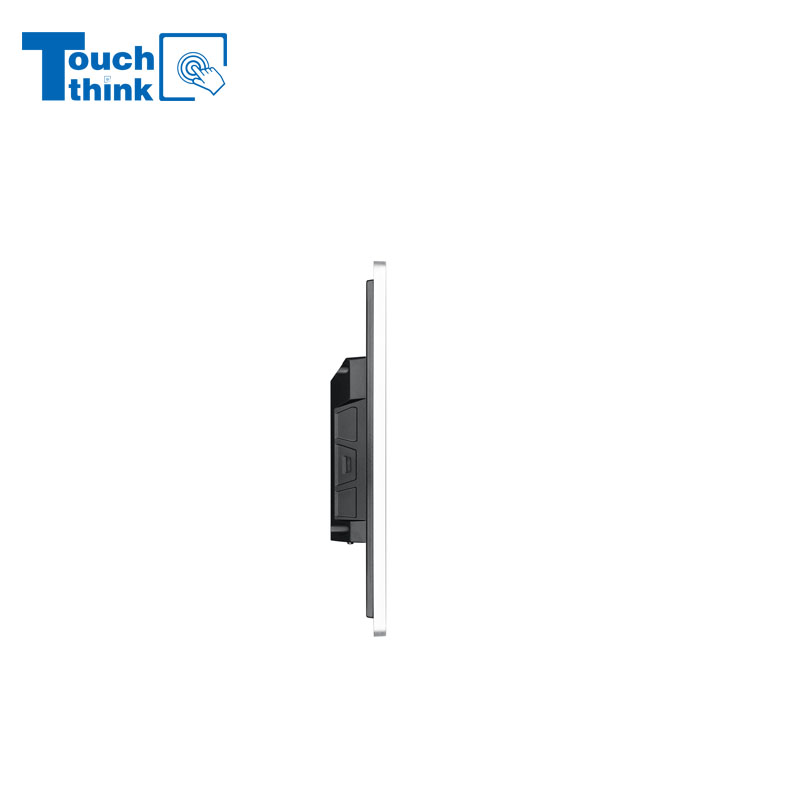

4. Flexible Wall-Mount Installation
The wall-mounted design provides:
- Clean, space-saving installation
- Secure mounting for machine control
- Easy viewing and operation
- VESA or customized mounting options
This makes it suitable for production lines, equipment cabinets, or operator workstations.
5. Multiple Screen Sizes and Interfaces
Industrial projects often require various size options. These Touch Think Z series IP65 wall-mounted displays typically come in:
10.1”, 10.4", 11.6", 12”, 13.3", 15”, 15.6", 17”, 17.3", 18.5", 19”, 21.5”, 23.8”, and 27".

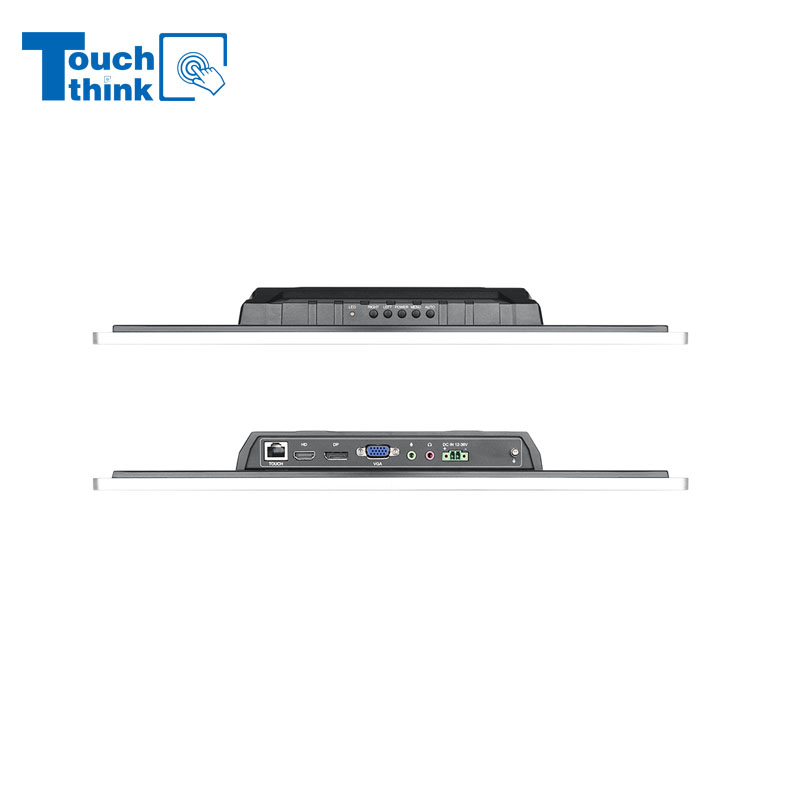

6. Common interfaces include:
HDMI / VGA / DP
USB for touch
RS232 / RS485 /RS422
LAN (for networked HMI solutions)
DC 12–36V wide power input
These interfaces ensure compatibility with PLCs, industrial PCs, embedded systems, and control machinery.
| I/Os Parameter | Touch interface | RJ45 port standard (defined as USB) |
| HDMI | Supports HDMI data input, maximum support of 1080P | |
| VGA | Support | |
| DP | Support | |
| DC Port | 1*DC2.1, support 12V-36V wide voltage power supply | |
| Earphone Jack | Standard 3.5mm port | |
| Audio Port | Audio I/O | |
| I/O Expansion | Support I/O customization for various industries | |
| Screen Parameters | Color | 16.7M |
| Panel Type | Industrial-grade | |
| Viewing Angle | 160°/160, full viewing angle 178° can be customized. | |
| Backlight Type | LED, lifetime ≥50000h | |
| Grayscale Response Time | 6.5ms | |
| Touch Screen Technology | Capacitive, resistive, and non-touch options | |
| Product Reliability | Working Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C | |
| Operating Humidity | 0% ~ 90% RH, non-condensing | |
| Power Parameters | Power Consumption | ≤35W |
| Power Input | DC 12V~36V | |
| Installation Options | Wall-mounted, desktop stand, VESA, ceiling-mounted | |
These monitors are widely used across industries, including:
Food & beverage processing plants
Pharmaceutical and medical facilities
Packaging and filling machines
Manufacturing and assembly lines
Energy, oil, and gas industries
Outdoor kiosks and terminals
Agriculture and environmental monitoring
Warehouse and logistics systems
Any environment that requires durability and reliability can benefit from an IP65 wall-mounted display.
