Industrial Monitor For Hazardous Area 21.5 inch

Size: 21.5"

Touch Think intelligent industrial touch screen monitor suit for wall mounting in industrial application and control, building automation touch control, and display solution.

Product Color

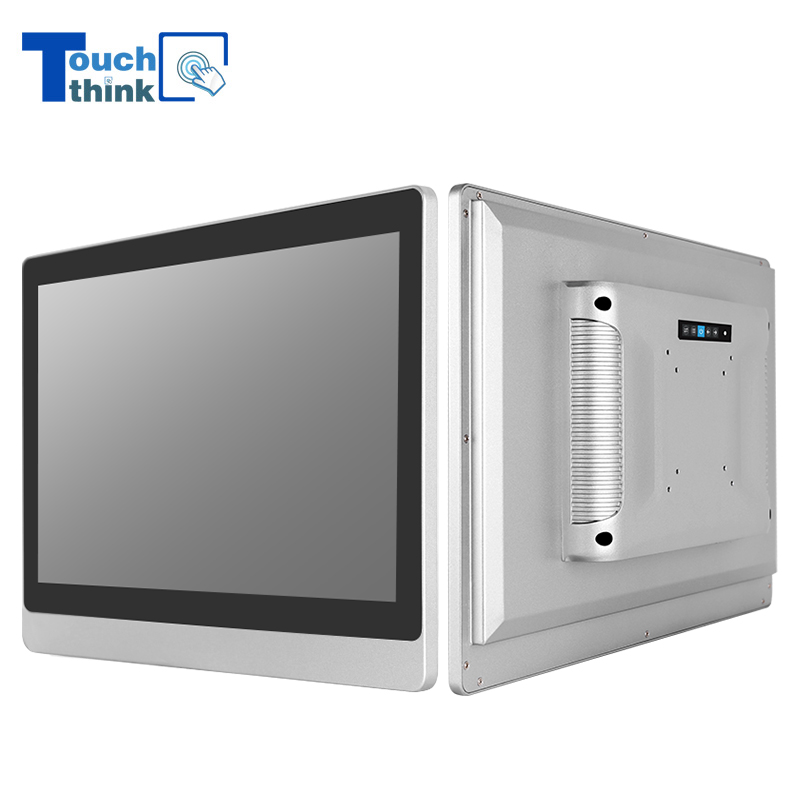

21.5" Industrial Monitor For Hazardous Area


Model: TPC215-M4


Touch Think industrial-grade LCD touch screen monitors offer high-performance capacitive, resistive, and mouse control screens. They are designed with true flat panels, the wall-mounted installation suitable for kinds of industrial fields and production line applications.



Touch Think Industrial Display Features


Touch Think 4th-GEN industrial displays designed with 10mm thickness front bezel, offer strong impact-resistant performance in harsh environments.

• Fully-enclosed aluminum alloy enclosure, rugged and robust, and offer excellent heat-dissipation than iron housing.

• IP65 rating dust-proof & waterproof for the front panel.

• Black or silver colors, support appearance customization.

Touch technology: capacitive touch screen, resistive touch screen, or non-touchscreen for different requirements.

• Thin narrow bezel design, exquisite craft aesthetic design, narrow frame with rounded corners, back key panel, exquisite arc side, pre-installed waterproof speaker hole, 10mm thickness front panel, well impact resistant.

• Fanless cooling system provides excellent heat dissipation and mute running environments.

• Back button panel, easy debugging, the industrial monitor support VGA, HDMI, DVI, etc. Offer automatic identification signal channel.

• Self-developed industrial-grade display drive board, quality is well-guaranteed.

• Support wide temperature and wide voltage operation, adopt the famous brand of power management chip design, the wide voltage reaches 12-24V. Ensure industrial monitors perform stably under harsh environments.

• Industrial monitors support long standby time and stable performance, adopt original professional hardware, support 7*24 hours long-time running without interruption.

• For all aspects of quality, customers will get a better user experience. The industrial monitor support anti-jamming, compliance with EMC/EMI standard. Shockproof up to GB2423 standards.

Besides the wall mount, TouchThink industrial monitors support multi-mount, like desktop, VESA, panel mount, embedded, etc.


  • product description
  • Product parameters
  • Application
  • OEM/ODM


Touch Think Industrial Wall-mounted Monitors


Industrial Monitor For Hazardous Area 21.5 inch

Industrial Monitor For Hazardous Area 21.5 inch


Industrial Monitor For Hazardous Area 21.5 inch

Industrial Monitor For Hazardous Area 21.5 inch

Industrial Monitor For Hazardous Area 21.5 inch




Screen parametersScreen size21.5 inch
ModelTPC215-M4
Resolution1920*1080
Proportion16:9 wide screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (customizable high brightness)
Touch typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticcontact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterprooffront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.


These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


We support OEM/ODM customization service for global customers, please fell free to contact us for details.
