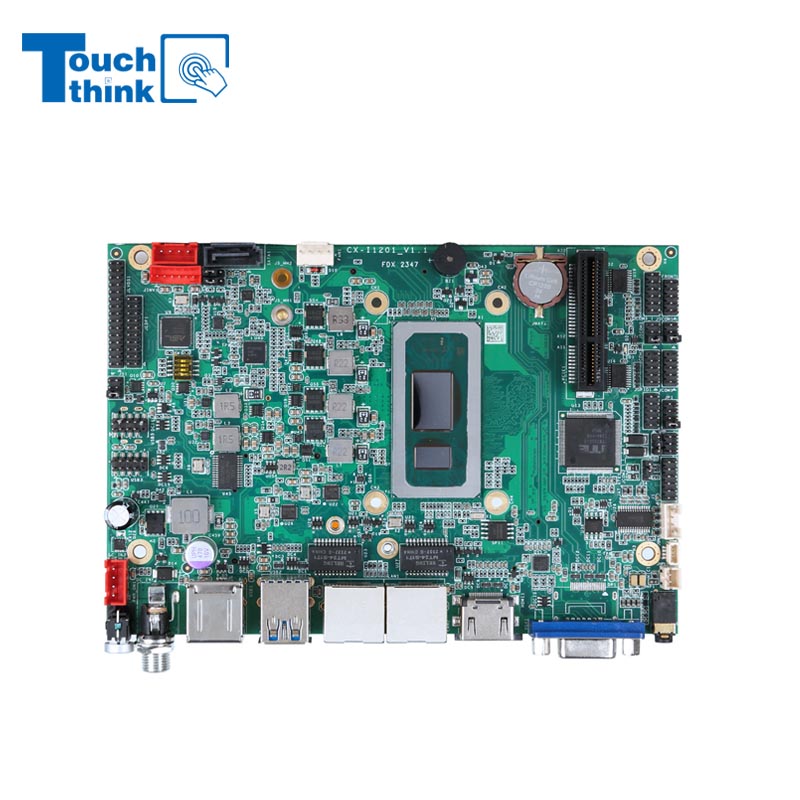

Intel Core i3-1215U Industrial Motherboards with Multi-Expansion Slots

Size: 160mm*110mm*27mm

Model CX-12U01/I3-1215U Industrial motherboard features the Intel Core i3-1215U processor and multi-expansion slots offer a compelling combination of performance, flexibility, and durability. Designed to meet the rigorous demands of industrial applications.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Model: CX-12U01/I3-1215U




Overview



Industrial motherboards equipped with the Intel Core i3-1215U processor represent a new benchmark in industrial computing. Combining robust performance, energy efficiency, and extensive connectivity options, these motherboards are designed to meet the diverse needs of modern industrial environments. The inclusion of multiple expansion slots, such as PCIe, M.2 B key for 4G/5G modules, and M.2 E key for wireless Wi-Fi and Bluetooth, enhances their versatility and capability, making them an ideal choice for various industrial applications.




Key Features



1. Efficient Computing Power:



Intel Core i3-1215U Processor: Featuring a 12th Gen Intel architecture, the i3-1215U offers a balance of performance and energy efficiency. With a base clock speed of 1.2 GHz and the ability to turbo boost up to 4.4 GHz, it delivers reliable performance for a wide range of industrial tasks.

Multi-Threading Capability: Enhanced multi-threading performance ensures efficient handling of multiple tasks and processes simultaneously.



2. Graphics and Multimedia:



Integrated Intel UHD Graphics: Supports high-resolution displays and provides the graphical power needed for visual data processing and real-time monitoring in industrial applications.



3. Durability and Reliability:



-20℃~70℃ Wide Temperature Range: Engineered to operate efficiently in extreme temperature conditions, ensuring consistent performance in harsh industrial environments.

Rugged Design: Built with industrial-grade components to withstand shock, vibration, and other physical stresses typical in industrial settings.



4. Versatile Expansion Slots:



PCIe Slots: Multiple PCIe slots for additional expansion, allowing for customization and future upgrades.

M.2 B Key Slot: Specifically designed for 4G/5G modules, enabling advanced mobile connectivity solutions crucial for IoT and remote monitoring applications.

M.2 E Key Slot: Provides connectivity for wireless Wi-Fi and Bluetooth modules, ensuring robust and flexible wireless communication capabilities.



5. Comprehensive Connectivity:



Multiple I/O Ports: Includes a variety of I/O options such as USB 3.2, HDMI, DisplayPort, and legacy ports, facilitating seamless integration with various industrial devices and systems.



6. Security Features:



Intel Hardware Shield: Provides robust hardware-level security, protecting against cyber threats and ensuring the integrity of critical industrial operations.




Highlights



Energy Efficiency: The i3-1215U’s architecture is optimized for low power consumption, making it ideal for applications where energy efficiency is crucial.



Scalability and Flexibility: Designed to scale with the growing needs of industrial applications, offering multiple expansion options to enhance functionality and performance.



Long-Term Availability and Support: Ensures consistent supply and support, making it a reliable choice for long-term industrial projects.



Conclusion



Industrial motherboards featuring the Intel Core i3-1215U processor and multi-expansion slots offer a compelling combination of performance, flexibility, and durability. Designed to meet the rigorous demands of industrial applications, these motherboards provide the robust and versatile solution needed to drive innovation and efficiency in industrial operations. Whether in automation, embedded systems, telecommunications, or healthcare, embrace the future of industrial computing with the powerful and adaptable Intel i3-1215U-based motherboards.








Hardware ConfigurationCPUIntel Core i3-1215U, Main frequency: 1.2GHz, Max. turbo frequency: 4.4GHz, Six-Core and 8 threads
GPUIntel Iris Xe Graphics 64
RAM
1*NB-DDR4, support 2133/2400/2666/2933/3200MHz, up to 32GB
Hard Disk1*SATA3.0
1*M.2
Operating SystemWindows 10/11
Ubuntu 20.04/22.04
Redhat 8.7
Debian 12.2
Linux-Mint
Anti-SurgeSupport
GPSExternal GPS (optional)
RTCSupport
Timing On-OffSupport
SpeakerBuilt-in dual-channel: 4R/10W, or 8R/5W

I/O PortsUSB2.02*USB2.0 + 4*USB2.0 on board
Type-C2*Type-C
USB3.02*USB3.0 + 2*Type-C on board can be converted to 2*USB3.0
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
GPIO8*GPIO (input/output)
PCIe1*PCIe 4X
I/O ExpansionSupport customization

Display FunctionsLVDSSupport 1920*1080 60Hz output
EDPMax. resolution supports 4096*2304 120Hz output
VGASupport 1920*1080 60Hz output
HDMIMax. resolution supports 4096*2304 60Hz output

NetworkingLAN2*10M/100M/1000M adaptive Ethernet
4G/5G1*M.2 B key 3042 for 4G, or 3052/3042 for 5G
WIFI & Bluetooth1*M.2 E Key for wireless WIFI and BT5.0; Dual-band 2.4/5GHz

Product ReliabilityWorking Temperature-20°C ~ 70°C
Storage Temperature-30°C ~ 80°C
Operating Humidity5% ~ 95% RH, non-condensing

PowerPower InputDC 12V~36V



Applications



1. Industrial Automation:



Control Systems: Powers programmable logic controllers (PLCs) and supervisory control and data acquisition (SCADA) systems, providing reliable performance for automation tasks.

Robotics: Facilitates advanced robotics applications with precise control and real-time data processing capabilities.



2. Embedded Systems:



IoT Gateways: Acts as the core for IoT devices and gateways, enabling efficient data collection, processing, and communication in industrial IoT networks.

Human-Machine Interfaces (HMI): Supports sophisticated interfaces for seamless interaction between humans and machines.



3. Telecommunications:



Mobile Connectivity: With the M.2 B key slot for 4G/5G modules, these motherboards enable robust mobile connectivity solutions for remote monitoring and control applications.

Wireless Communication: The M.2 E key slot for Wi-Fi and Bluetooth modules ensures reliable wireless communication, essential for modern industrial setups.



4. Healthcare Technology:



Medical Devices: Provides the computational power needed for various medical devices and diagnostic equipment.

Patient Monitoring: Ensures continuous and reliable monitoring of patient data in healthcare environments.
