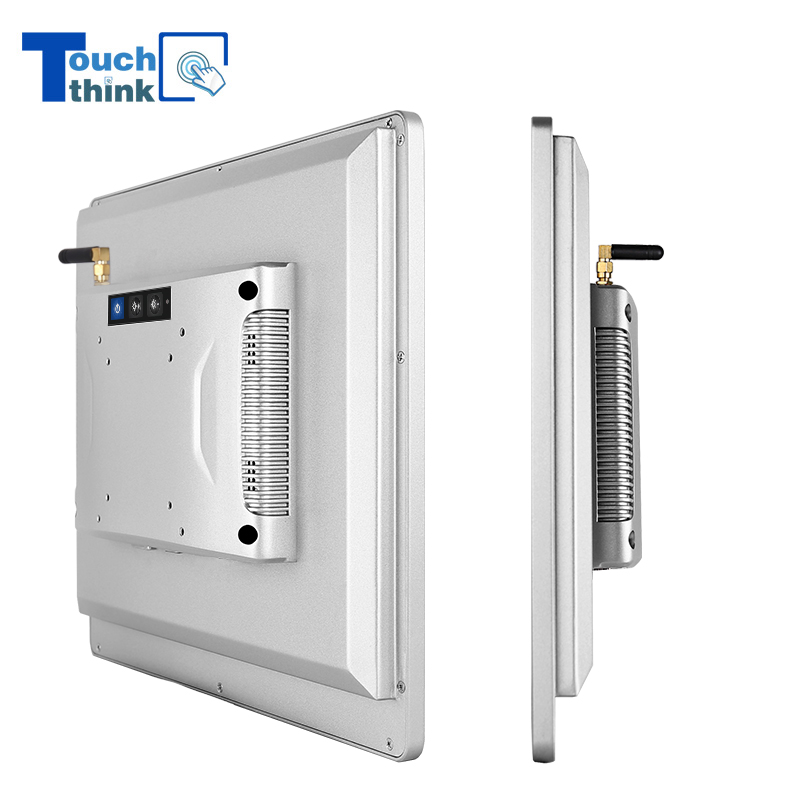

Android Industrial Tablet PC 19.1 inch USB/LAN/COM/mini-PCIe

Size: 19.1"

19.1-inch industrial Android panel PC produced for harsh industrial environments. It is made from industrial-grade components and is ideal for various complex applications such as industrial control sites, digital signage, school information display systems, outdoor kiosks, transportation scheduling, multimedia advertising, and many others.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Android Industrial Tablet PC 19.1"


Model: TPC191-A4


Touch Think industrial tablet PCs are mostly used in industry for a long time running without interruption, such as production line automation control, monitoring devices, network security system, public service system, transportation system, etc. They perform stable operations in harsh environments. For the industrial tablet PC, in addition to the stability feature, they are dust-proof, water proof, anti-vibration, anti-moisture, anti-high temperature, multi-slot, and support interfaces expansion.



Touch Think Industrial Android PC Features


● Adopt to Aluminium alloy shell, good mechanical properties, high heat dissipation.

● Support long-time and all-weather running, up to 365days*24 hours and without stop.

● The thickness of all in one panel PCs’ front panel can be 3mm, 10mm, or true flat panel.

● All the industrial panel PCs are in compliance with IP65 waterproof and dust-proof standards.

● Triple protection for the whole industrial monitor: explosion-proof, flameproof, and moisture-proof.

● It adopts industrial control HD LCD screen + LED backlight screen, highlight picture, perfect color display.

● Anti-interference design to meet EMI standards. The Android industrial computer is suitable for complex industrial environments.

● The industrial panel PCs with Android systems support capacitive touch screens and non-touchscreenSuitable for various industrial environments and terminal devices.

● Special design for DC power port with anti-shedding, and support DC cable optional.

● All Touch Think series industrial Android panel PCs support multi-installation types, such as wall-mount, embedded, desktop and cantilever.

● Shock resistance standard for monitor reach GB2423, it can be well-protected during transportation and working on the sea.

● The working temperature range for the Android panel PC is -20~70 Celsius degree, (-4 ~158 Fahrenheit degree), humidity range is 10%~90%.

● The anti-static level of contact is 4KV, supporting customized MAX 16KV for industrial monitors.

● Provide standard I/O interface: VGA, HDMI, DVI, automatic identification signal channel, also support other customized multi interfaces.

● Two standard colors are black and silver for Touch Think Android panel PC, but we provide appearance color customization service for customers.






Display ParametersSize19.1"
Resolution1440x900
Screen Ratio16:10
Brightness250~300 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle89/89/89/89 (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options








Motherboard Model SelectionJWS64
JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-A
System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHz
Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4
Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)
Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)
SATA////Support/
Operating SystemAndroid 6.0Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0

Android 7.1 / 9.0 / 11 / Ubuntu18.04 /

 Debian10.0 / Linux4.4

Android 7.1/9.0/11,

Linux 4.4 / Ubuntu 18.04 / Debian 10

Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11Android 13.0








NetworkingEthernet1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet
4GOptional. Based on the 4G module selection
5G

/

/////
WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5G
BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0








Display FunctionLVDSSupport 1920*1080 60Hz output
EDP/1920*1080 60Hz output
MIPISupport 1920*1080 60Hz output
Mipi Camera30pin FPC interface, support 1300W Camera
HDMI OutputHDMI 2.0, support 4K 3840*2160 60Hz outputHDMI 2.1, support 8K 7680*4320 60Hz output
HDMI Input/HDMI Input, 24-pin FPC custom interface/HDMI Input, 24-pin FPC custom interface//
Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC
I/O PortsMICRO USB1*MICRO USB (OTG)/////
USB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 (including OTG*1) + USB2.0*6 on boardUSB2.0*5 on boardUSB2.0*1 + USB2.0*5 on boardUSB2.0*4 on boardUSB2.0*1 + USB2.0*4 on board
USB 3.0//USB3.0*2 (including OTG*1)USB3.0*1(OTG)USB3.0*2 (including OTG*1)
USB3.0*1(OTG)
RS2323*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalRS232*2RS232*2RS232*2RS232*2
RS485 / (Unless install RS232 to RS485 converter)RS485*1RS485*1RS485*1RS485*1
TTL3*RS232/TTL mutual conversion1*RS232, 2*TTL/RS232 optionalTTL*2TTL*2TTL*2TTL*2
GPIO3*GPIO output, 1*GPIO input, and 1*ADC portGPIO*7 (input/output)GPIO*8 (input/output)GPIO*8 (input/output)GPIO*12 (input/output)GPIO*6 (input/output)
SIM SlotSupportSupportSupportSupportSupportSupport
TF SlotSupportSupportSupportSupportSupportSupport
CAN////SupportSupport
Speaker3.5mm standard Jack
MICSupportSupportSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Available








PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC
Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A

MechanicalDimension455.5*328.2*60.8mm
EnclosureAluminum alloy housing
Cooling SystemFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -20°C ~ 70°C
Storage Temp -30°C ~ 80°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65








This 19.1" android panel PC is made from industrial-grade components and is ideal for various complex applications such as industrial control sites, digital signage, school information display systems, outdoor kiosks, transportation scheduling, multimedia advertising, and many others.


Touch Think industrial monitors support customization services such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.


Contact us now to start your OEM/ODM projects!
