19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof

Size: 19.1"

Big display size like this 19.1" industrial LCD monitor (19" widescreen monitor) often used on multiple types of equipment, such as kiosk machines, industrial CNC, laser equipment, test or Lab equipment as the HMI to realize the touch control and display functions.

Product Color



19.1" Industrial Rugged Monitor With IP65 Protection For Heavy-duty Applications


Model: TPC191-M5


Touch Think 5th-GEN industrial monitors are designed for heavy-duty environments to use, Options include sunlight readable displays, LED backlights, Windows/Android/Linux/Raspberry Pi/Ubuntu compatibility, capacitive or resistive touch screens, multiple interface inputs & outputs, and more.


原文

Product Features


• 1440x900 high resolution, 16 : 10 aspect ratio

• IP65 rated dust and water resistance

• Standard 400cd/m2, support 1000cd/m2 with long-life LED backlight

• Wide viewing angle IPS (In-Plane Switching) LCD panel

• Automatic backlight adjustment through a built-in ambient light sensor

• Single-point resistive & projected capacitive Multi-point touch screen

• Optical bonding, anti-fingerprint, and anti-reflective coating

• Supports 12 ~ 24V DC, anti-falling off design for DC ports

• High-Performance Image and Video Signal Processor

• Last input and power setting memory

• Built-in waterproof speaker

• Plug-and-Play function

• VESA 75/100mm mounting holes on rear cover

• Heavy-duty connector with connector locking

• Ruggedized Aluminum alloy casing

• OSD function

• FCC, CE, ROHS compliant

• 3 Year/36-month warranty


  • product description
  • Product parameters
  • Application
  • OEM/ODM



TPC191-M5 - 1440x900 Pixels TFT/LCD Touchscreen Monitor Industrial-Grade


19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof

19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof

19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof

19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof

19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof




Rugged Industrial Monitor - Product Model Quick Guide


ModelLCD DisplayResolutionAspect RatioTouch Screen TypeGet A Quote Now!
TPC070-M-QD7"1024*600
16:9Capacitive / Resistive / Non-touchInquiry
TPC080-M-QD8"
1024*7684:3Capacitive / Resistive / Non-touchInquiry
TPC101-M510.1"1280*80016:10Capacitive / Resistive / Non-touchInquiry
TPC104-M510.4"1024*7684:3Capacitive / Resistive / Non-touchInquiry
TPC116-M511.6"1920*108016:9Capacitive / Resistive / Non-touchInquiry
TPC120-M512"1024*7684:3Capacitive / Resistive / Non-touchInquiry
TPC150-M515"1024*7684:3Capacitive / Resistive / Non-touchInquiry
TPC156-M515.6"1920*108016:9Capacitive / Resistive / Non-touchInquiry
TPC170-M517"1280*10245:4Capacitive / Resistive / Non-touchInquiry
TPC173-M517.3"1920*108016:9Capacitive / Resistive / Non-touchInquiry
TPC190-M519"1280*10245:4Capacitive / Resistive / Non-touchInquiry
TPC191-M519.1"1440*90016:10Capacitive / Resistive / Non-touchInquiry
TPC215-M521.5"1920*108016:9Capacitive / Resistive / Non-touchInquiry
TPC238-M523.8"1920*108016:9Capacitive / Resistive / Non-touchInquiry



Screen parametersScreen size19.1 inch
ModelTPC191-M5
Resolution1440*900
Proportion16:10 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160° (178° full view angle customizable)
Brightness 350cd/m2 (high brightness customizable)
Touch-typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (≥16KV can be customized)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy

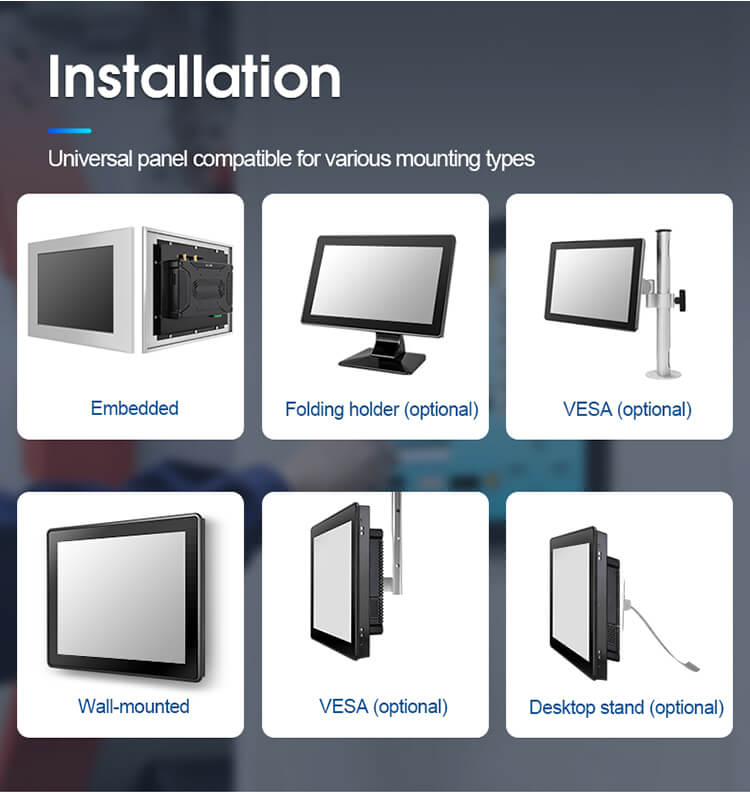

Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian, etc.
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output




19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof


Industrial Automation


● Industrial process control

● Production automated equipment

● CNC equipment

● Digital cutting equipment

● Laser machines

● Industrial Robots



19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof


Commercial Self-Service Equipment


● Commercial self-service kiosks (ATM, vending machines, self-printing machines, self-photo booths, etc)

● Smart access control recognition machines

● Electric vehicle charging pile







19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof


Smart City Service Equipment


● Smart parcel lockers








19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof

Medical Equipment


● Self-service printing machines

● Self-service appointment machines

● Self-service payment machines

● Medical imaging equipment

● Medical mobile carts








19.1 Inch Industrial Outdoor Touchscreen Monitor 1000nits High Brightness Explosion Proof
