Size: 11.6"
This industrial Android tablet is great for instant transmission of data in the field. The vibrant display makes for easy use and viewability in direct sunlight. The anti-interference, shock resistance and IP ratings allow it to endure harsh environments to complete critical tasks.
Product Color

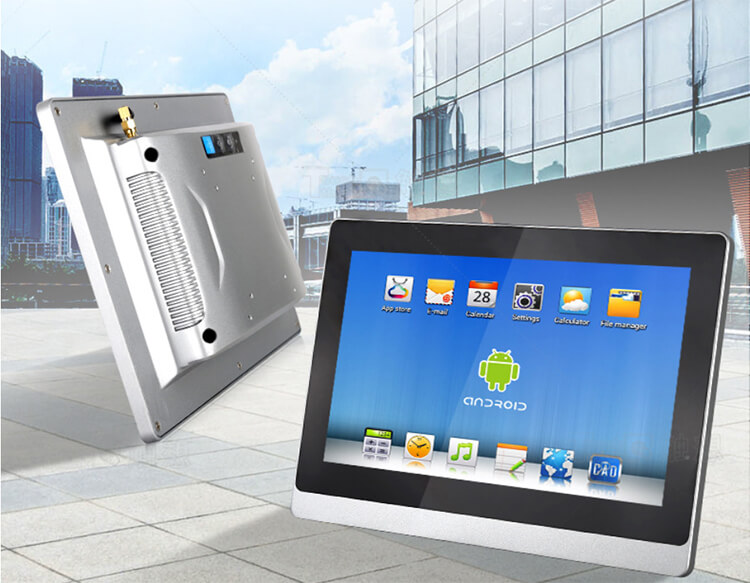

Rugged Android Tablets For Industrial Applications 11.6-inch
Model: TPC116-A4
This rugged Android tablet PC is great for the instant transmission of data in the field. The vibrant display makes for easy use and viewability in direct sunlight environments. The anti-interference, shock resistance, and IP65 ratings allow it to endure harsh environments to complete critical tasks.
Unlike a general commercial touch computer, an industrial tablet PC has strong shock-proof, moisture-proof, dust-proof, heating-resistant, and waterproof performance, and is equipped with multi-slots, easy for I/O port expansion to suit the complex industrial environmental features. It is the best platform for various other applications in the fields of industrial control, traffic control, environmental protection control, and automation. Rugged Android tablet PCs are mostly used in the modern industry. They are often used to operate under special circumstances or run for a long time without interruption, like production line automation equipment, data exchange in a telecommunication room, monitoring equipment, enterprise Network security servers, a navigation system, etc. They must operate continuously and steadily for a long time without any interruption. Otherwise, it will cause huge losses, so the stability of the industrial computer system used is particularly strict.
Industrial Rugged Android Tablet PC Features
● 16:9 widescreen with 1920*1080 HD
● 11.6" sunlight viewable industrial screen display with PCAP capacitive touch screen, 220~300 nits, support high nits.
● Android 12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 operating system was available.
● IP65 dustproof and waterproof certified for the front panel.
● Panel mount/wall-mount/VESA 75/VESA100/stand/tabletop mount/embedded mount.
● CE, FCC, ROHS, ISO approved.
● Supports plug-and-play, OSD function button.
Touch Think Android Industrial Tablet PC
| Display Parameters | Size | 11.6" | |||||
| Resolution | 1920x1080 | ||||||
| Screen Ratio | 16:9 | ||||||
| Brightness | 220~300 nits (Optional high brightness) | ||||||
| Contrast Ratio | 1000:1 | ||||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
| Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | / | / | Support | / | |
| Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||||
| 5G | / | / | / | / | / | / | |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||||
| EDP | / | 1920*1080 60Hz output | |||||
| MIPI | Support 1920*1080 60Hz output | ||||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||||
| HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | |||
| I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / |
| USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
| TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | Support | Support | |
| CAN | / | / | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||||
| MIC | Support | Support | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||||
| I/O Expansion | Available | ||||||
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 305.9*211.2*48.5mm | |||||
| Enclosure | Aluminum alloy housing | ||||||
| Cooling System | Fanless | ||||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||||
| Storage Temp | -30°C ~ 80°C | ||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
| IP rating | Front IP65 | ||||||
warehouse management
construction
field workforce
ports management
manufacturing
food processing
public safety
electronic ticketing
industrial computing
industrial robotics
testing equipment
embedded system
forklift applications
power supply distribution cabinet
Touch Think industrial tablets support OEM/ODM customization service even for one piece.
Rugged Android Tablet Screen Customization
1. High-light screen: default with 400cd/m2, support customization up to 1500cd/m2.
2. Photosensitive head: support screen brightness automatically adjusts based on ambient light.
3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.
4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.
5. High-resolution screen: higher resolution than standard LCD screen can be customized.
6. Screen size: standard display size range is 7 inch to 21.5 inches, other size is available.
7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.
Other Rugged Android Tablet Customization Items
1. Appearance customization: support appearance and product color design, sample customization.
2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.
3. LOGO customization.
4. System software: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Wide voltage: 12V-24V.
7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.
8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.
9. Installation methods: support different installation methods for different applications.
