Size: 10.1"
Touch Think 10.1-inch industrial Android panel PC supports Android 5.1 / 6.0 / 7.1 versions, offering high compatibility with a variety of software systems in lots of industrial equipment.
Product Color
10.1" Android Industrial Panel Computer with Factory Price
Model: TPC101-A2

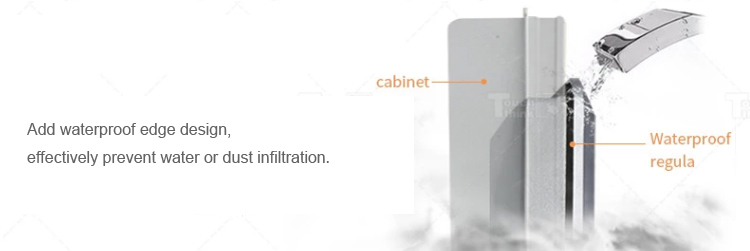

Touch Think Android industrial panel PCs are designed to perfect running under harsh conditions and can be placed into extremely high or low temperature industrial environments. They support sunlight readable for outdoor terminals and self-service devices for 24 hours*7 days. The standard industrial Android Panel PC offers two colors: black and silver, but we support customized colors. IP65-rated water-proof and dust-proof industrial tablet PC, perfect for outdoor devices.
Android Industrial Panel PC
The industrial Android panel PC adopts Android 6.0, HMI interface function, and offers HDMI*1+USB*4+COM*3, it meets the demand for a multitude of ports requirements, customized microphone, 4G + WiFi module, and the basic problem of human-computer voice interaction is solved.
Functional Module Customization
It supports an auto-focus camera and infrared sensor, which is good for acquiring information from on-site, providing a convenient human-computer interaction platform.
Multitude Ports Customization
HDMI*1+USB*4+COM*3 meets multi-ports expansion requirements. The Industrial Android all-in-one PCs are widely used in bank systems, cinemas, restaurants, and other service industries.
| Display Parameters | Size | 10.1" | ||||||
| Resolution | 800x1280 / 1280x800 | |||||||
| Screen Ratio | 16:10 | |||||||
| Brightness | 300 nits (Optional high brightness) | |||||||
| Contrast Ratio | 1000:1 | |||||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | |||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
| Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
| System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
| Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
| Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
| Operating System | Android 6.0 | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1 / 9.0 / 11 / Ubuntu18.04 / Debian10.0 / Linux4.4 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | Android 12 / Linux 5.10 / Debian11 / Ubuntu 20.04 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet |
| 4G | Optional. Based on the 4G module selection | |||||||
| 5G | / | / | / | / | / | / | Support M.2 5G module interface | |
| WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
| Display Function | LVDS | Support 1920*1080 60Hz output | ||||||
| EDP | / | 1920*1080 60Hz output | 4K 3840*2160 output | |||||
| MIPI | Support 1920*1080 60Hz output | |||||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | |||||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | ||||||
| HDMI Input | / | HDMI Input, 24-pin FPC custom interface | / | HDMI Input, 24-pin FPC custom interface | / | / | HDMI 2.0, support 4K 3840*2160 60Hz input | |
| Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||
| I/O Ports | MICRO USB | 1*MICRO USB (OTG) | / | / | / | / | / | |
| USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*5 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | USB2.0*5 on board | |
| USB 3.0 | / | / | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | USB3.0*4 (including OTG*1) | |
| RS232 | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | RS232*2 | RS232*1; RS232/TTL*2 (optional) | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | RS485*1 | RS485*1 | ||
| TTL | 3*RS232/TTL mutual conversion | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | TTL*2 | TTL*1; RS232/TTL*2 (optional) | |
| GPIO | 3*GPIO output, 1*GPIO input, and 1*ADC port | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | ||
| SIM Slot | Support | Support | Support | Support | Support | Support | ||
| TF Slot | Support | Support | Support | Support | Support | Support | ||
| CAN | / | / | / | / | Support | Support | ||
| Speaker | 3.5mm standard Jack | |||||||
| MIC | Support | Support | Support | Support | Support | Support | ||
| Audio Port | 3.5mm earphone jack, support input/output | |||||||
| I/O Expansion | Available | |||||||
| Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 293.6*193.6*48.5mm | ||||||
| Enclosure | Aluminum alloy housing | |||||||
| Cooling System | Fanless | |||||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -20°C ~ 70°C | ||||||
| Storage Temp | -30°C ~ 80°C | |||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
| IP rating | Front IP65 | |||||||
10.1-inch industrial Android tablet PCs are widely used in industrial equipment, medical equipment, transportation tools, and touch screen kiosk solutions.
We offer ODM/OEM customization service for global clients, please contact us for details.
