Size: 12"

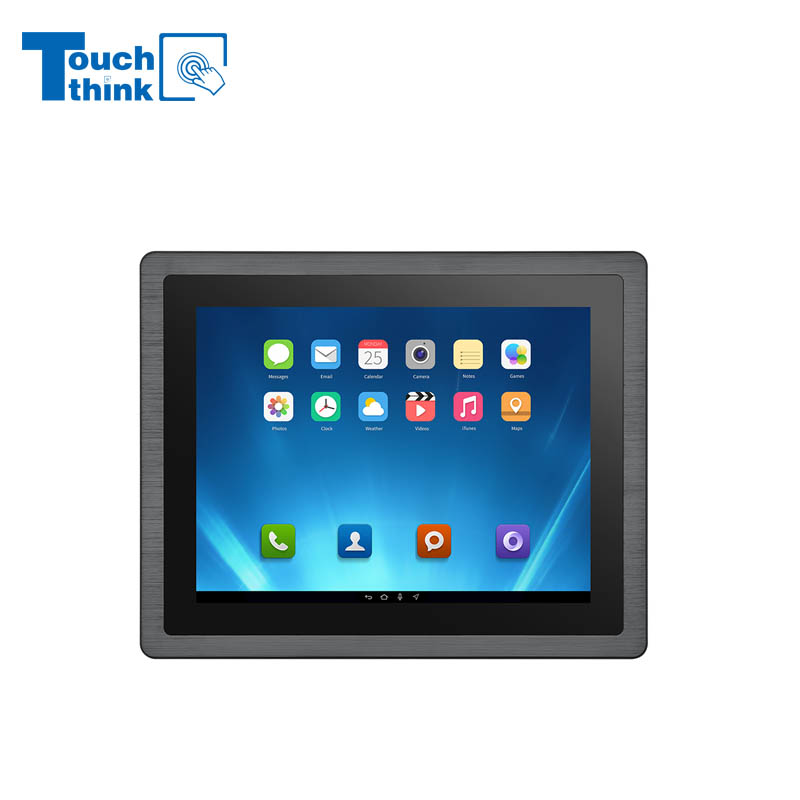

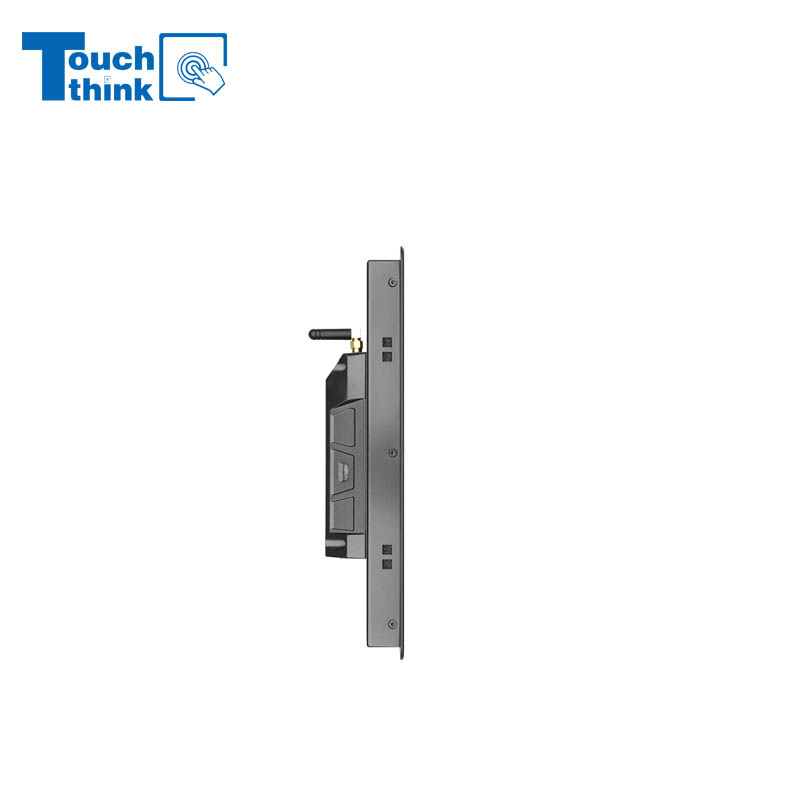

The 12 inch Industrial Panel PC with Android or Linux preinstalled, support up to 16GB RAM, and 256GB storage, and combines high-performance hardware, flexible OS options, and rugged design. Its ready-to-deploy configuration allows businesses to shorten installation times while ensuring stable, 24/7 operation in demanding environments.
Product Color
Model: TPC120-A28
For factories, warehouses, and automation projects, a powerful and flexible industrial panel computer is essential. The 12 inch Industrial Panel PC with Android or Linux preinstalled, support up to 16GB RAM, and 256GB storage delivers the performance and reliability needed for modern Industry 4.0 applications.
Preinstalled Android or Linux for Quick Deployment
This rugged panel PC ships with your choice of Android or Linux operating systems, allowing you to deploy critical applications immediately. Whether you need Android for app-based control or Linux for advanced industrial software, this preconfigured system reduces setup time and ensures a smooth start.
High-Performance Hardware
With 16GB of DDR memory and a fast 256GB solid-state drive, the 12 inch panel PC offers responsive multitasking and ample storage for data logging, HMI dashboards, and real-time analytics. The SSD provides reliable performance in vibration-prone environments, outperforming traditional hard drives.
Rugged 12 Inch Touchscreen Display
The 12 inch industrial-grade touchscreen is built for continuous 24/7 operation. Its high-brightness panel delivers clear visuals in both indoor and semi-outdoor settings, while the capacitive multi-touch interface ensures precise control even with gloved hands—ideal for factory floors and industrial kiosks.
Versatile Connectivity and Expansion
Multiple I/O ports—including USB, RS-232/422/485, and dual Gigabit Ethernet—make integration with PLCs, sensors, barcode scanners, and IoT devices straightforward. Optional Wi-Fi and 4G/5G modules support cloud connectivity and remote monitoring, key to smart manufacturing and edge computing.
Rugged, Industrial-Grade Design
Built to withstand dust, vibration, and wide temperature fluctuations, the fanless aluminum housing ensures silent, maintenance-free operation. This durability makes it perfect for factory automation, logistics, energy management, and kiosk deployments.
| Display Parameters | Model | TPC120-A28 | |
| Size | 12" | ||
| Resolution | 1024*768 | ||
| Aspect Ratio | 4:3 | ||
| Contrast | 1000:1 | ||
| Display Color | 16.7M | ||
| Brightness | 500cd/㎡ (Optional high brightness) | ||
| Visual Angle | 89°/89°/89°/89° (L/R/U/D) | ||
| Backlight Type | LED backlight screen, service life ≥ 50000H | ||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||
| Motherboard Model Selection | CX3568-Z | CX3588-Z | |
| System Architecture | CPU | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.4GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | ARM Mali-G52 MP2 | ARM Mali G610 MP4 | |
| Memory (DDR) | 2GB (4/8GB optional) | 8GB (16GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 64GB (256GB optional) | |
| SATA | / | / | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options) |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.3 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |
| EDP | Support 1920*1080 60Hz output | ||
| MIPI | Support 1920*1080 60Hz output | ||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | ||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |
| HDMI Input | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC |
| I/O Ports | MICRO USB | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | |
| USB 3.0 | USB3.0*2 (including OTG*1) | USB3.0*2（including OTG*1) | |
| RS232 | RS232*3 | RS232*3 | |
| RS485 | RS485*3 | RS485*3 | |
| TTL | TTL*2 | TTL*2 | |
| GPIO | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | |
| TF Slot | Support | Support | |
| CAN | CAN*1 | CAN*1 | |
| Speaker | 3.5mm standard Jack | 3.5mm standard Jack | |
| MIC | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | |
| Power | Power Input | DC 12~36V | DC 12~36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | ||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | |
Smart Factory Automation – Real-time control and monitoring of production lines.
Warehouse & Logistics – Inventory management and order fulfillment with cloud-based WMS.
Energy & Utilities – Reliable HMI for power distribution and substation monitoring.
Kiosk & Retail Systems – Interactive displays requiring high uptime and secure storage.
