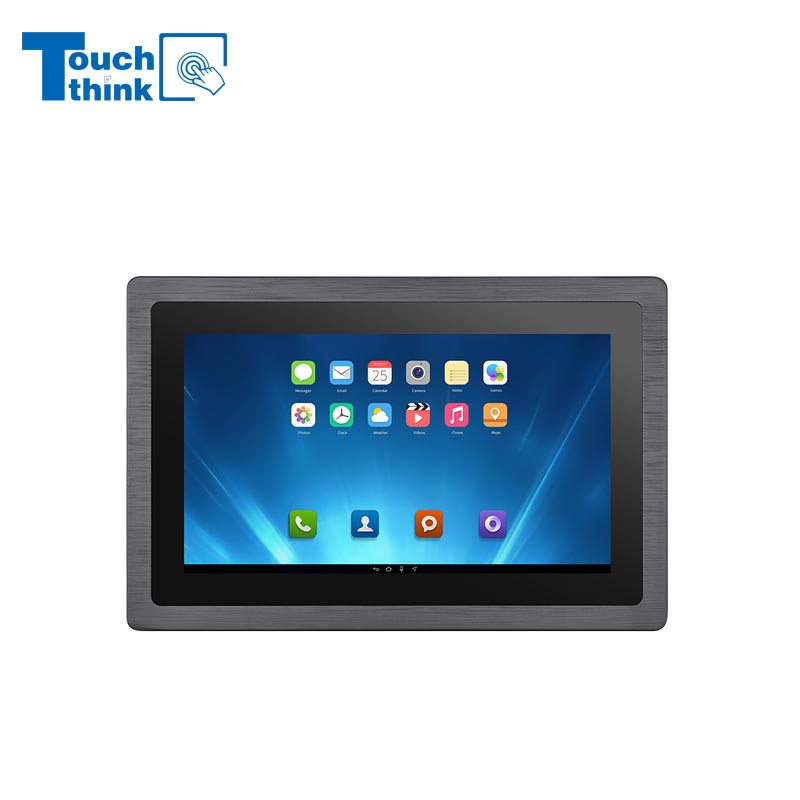

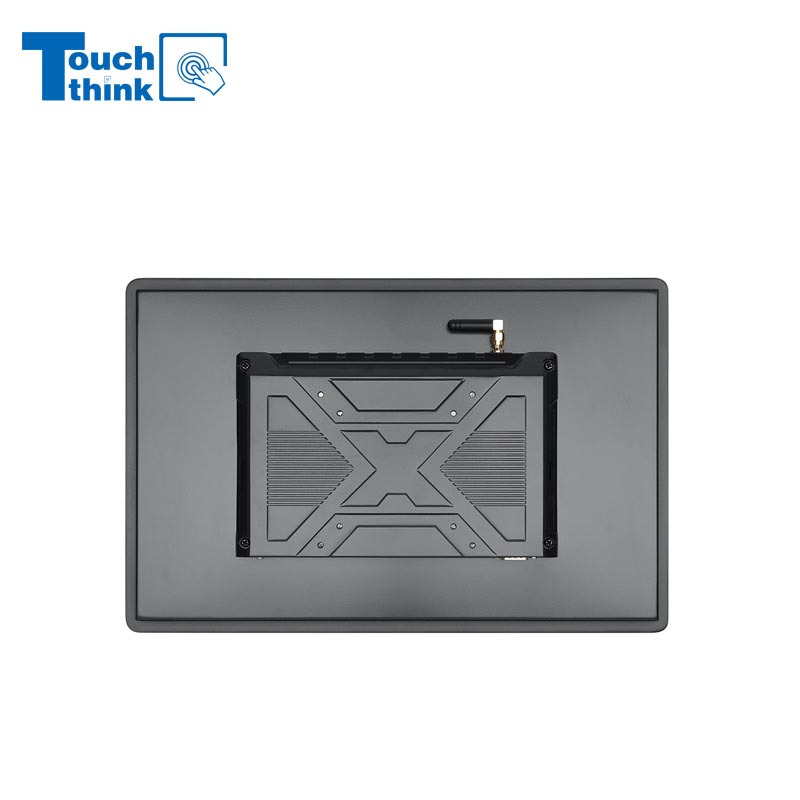

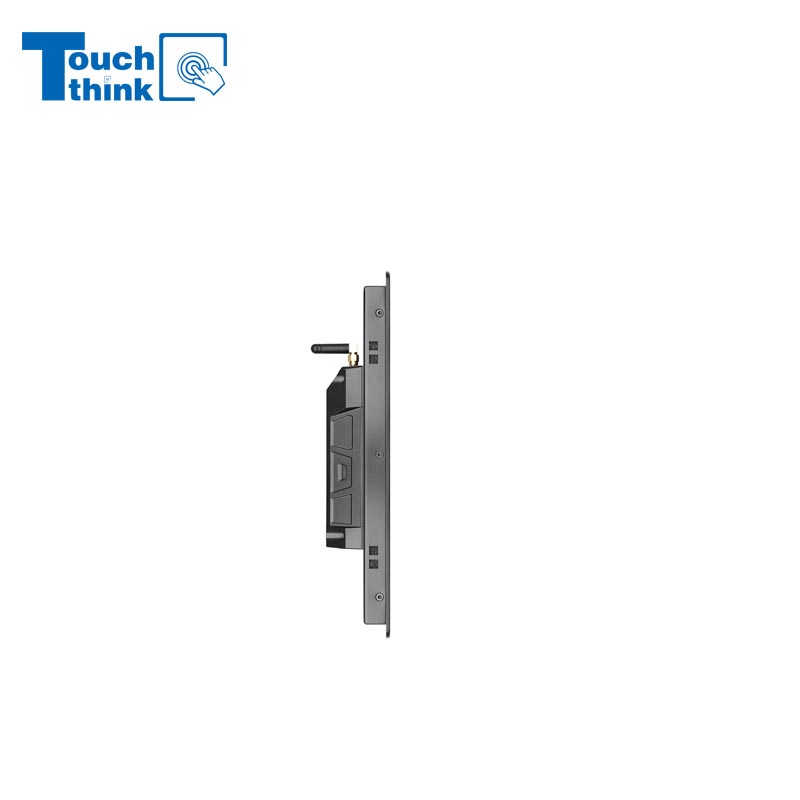

13.3 inch Android Panel PC IP65 Rated 4G LTE Connectivity Touch All in One Computer for Warehouse Management Systems

Size: 13.3"

The 13.3 inch Android Panel PC with IP65 rating and 4G connectivity is the ultimate solution for warehouse management systems. Its rugged design, wireless connectivity, and intuitive touchscreen interface enable real-time inventory control, improved accuracy, and greater operational efficiency.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Model: TPC133-A28


Efficient warehouse operations require rugged, connected, and user-friendly technology. The 13.3 inch Android Panel PC, featuring an IP65-rated design, 4G LTE connectivity, and a responsive touchscreen, is built to streamline warehouse management systems (WMS) and keep logistics running smoothly.



Rugged IP65 Protection for Harsh Environments



Warehouses are tough on equipment, with dust, moisture, and temperature variations. This industrial Android panel PC meets IP65 standards, ensuring complete protection against dust and water spray. Its durable construction makes it ideal for cold storage, loading docks, and high-traffic warehouse areas.



13.3 Inch High-Resolution Touch Display



The 13.3 inch touchscreen provides a bright, sharp display for easy data visualization and real-time inventory tracking. Operators can quickly navigate WMS applications, scan barcodes, and manage orders using projected capacitive (PCAP) touch technology—even when wearing gloves.



Built-In 4G Connectivity



Reliable connectivity is critical for fast-moving warehouse operations. With integrated 4G LTE, this Android all-in-one computer maintains continuous communication with cloud-based WMS software, ERP systems, and IoT sensors. Whether on the shop floor or across a large facility, staff can access real-time data without relying solely on Wi-Fi.



Android OS for Flexible Integration



Running on the Android operating system, this industrial panel PC supports a wide range of warehouse and logistics applications. Businesses can easily deploy custom apps, barcode scanning tools, or inventory management platforms to meet specific workflow requirements.



Multiple Mounting Options and I/O Interfaces

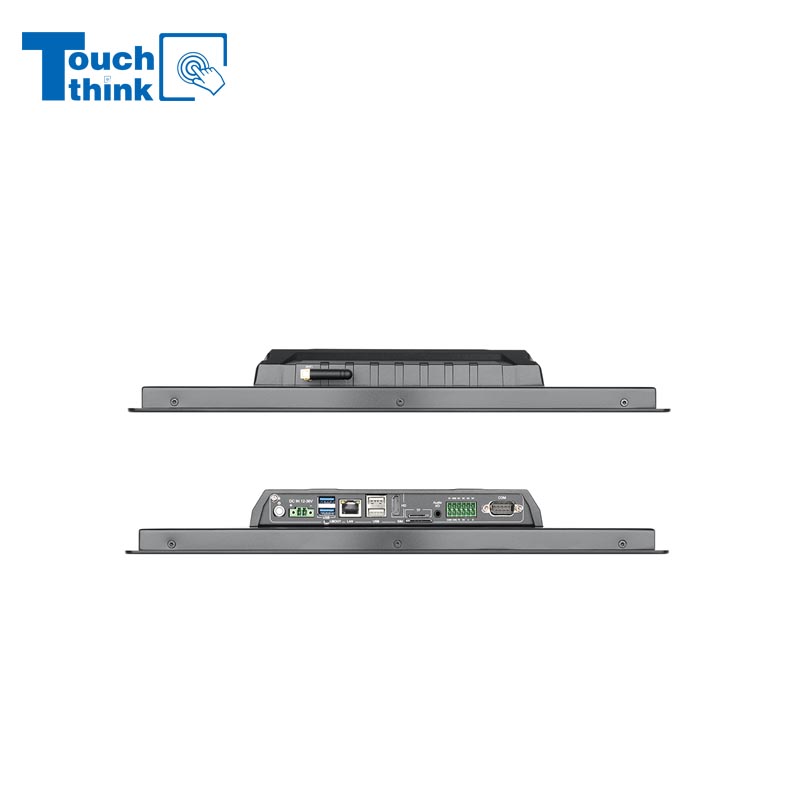

The compact all-in-one design supports panel, VESA, and wall mounting, allowing quick installation in forklifts, workstations, or warehouse control centers. Rich I/O ports—including USB, RS-232, and Ethernet—simplify integration with barcode scanners, RFID readers, and label printers.



The 13.3 inch Android Panel PC with IP65 rating and 4G LTE connectivity is the ultimate solution for warehouse management systems. Its rugged design, wireless connectivity, and intuitive touchscreen interface enable real-time inventory control, improved accuracy, and greater operational efficiency.



For businesses looking to upgrade their warehouse technology, this Android all-in-one computer offers a dependable, future-ready platform for Industry 4.0 logistics.










Display ParametersModelTPC133-A28
Size13.3"
Resolution1920*1080
Aspect Ratio16:9
Contrast1000:1
Display Color16.7M
Brightness400cd/㎡ (Optional high brightness)
Visual Angle89°/89°/89°/89° (L/R/U/D)
Backlight TypeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options




Motherboard Model SelectionCX3568-ZCX3588-Z
System ArchitectureCPURK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.4GHz
Core ArchitectureCortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPUARM Mali-G52 MP2ARM Mali G610 MP4
Memory (DDR)2GB (4/8GB optional)8GB (16GB optional)
Storage (eMMC)32GB (64/128/256GB optional)64GB (256GB optional)
SATA//
Operating SystemAndroid 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11




NetworkingEthernet1*1000M (2*1000M Ethernet options)1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options)
4GOptional. Based on the 4G module selectionOptional. Based on the 4G module selection
WIFIWIFI6, Dual-band 2.4/5GHzWIFI6, Dual-band 2.4/5GHz
BluetoothBT5.3BT5.3




Display FunctionLVDSSupport 1920*1080 60Hz output
EDPSupport 1920*1080 60Hz output
MIPISupport 1920*1080 60Hz output
Mipi Camera30-pin FPC interface, supports 1300W Camera
HDMI OutputHDMI 2.0, support 4K 3840*2160 60Hz outputHDMI 2.1, support 8K 7680*4320 60Hz output
HDMI Input//
Touch FunctionTouch InterfaceUSB/IICUSB/IIC
I/O PortsMICRO USB//
USB 2.0USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on boardUSB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board
USB 3.0USB3.0*2 (including OTG*1)
USB3.0*2(including OTG*1)
RS232RS232*3RS232*3
RS485RS485*3RS485*3
TTLTTL*2TTL*2
GPIOGPIO*12 (input/output)GPIO*6 (input/output)
SIM SlotSupportSupport
TF SlotSupportSupport
CANCAN*1CAN*1
Speaker3.5mm standard Jack3.5mm standard Jack
MICSupportSupport
Audio Port3.5mm earphone jack, supports input/output3.5mm earphone jack, supports input/output
I/O Expansion Available Available




PowerPower InputDC 12~36VDC 12~36V
Adapter24V / 2.5A24V / 2.5A




MechanicalEnclosureAluminum alloy housingAluminum alloy housing
Cooling SystemFanlessFanless
MountingDesktop, wall-mounted, VESA75/100mm, ceiling-mounted




Product ReliabilityWorking Temp -10°C ~ 60°C -10°C ~ 60°C
Storage Temp -20°C ~ 70°C -20°C ~ 70°C
Ambient Humidity20% - 95% (relative humidity non-condensing)20% - 95% (relative humidity non-condensing)
IP ratingFront IP65Front IP65



Key Applications in Warehouse Management



1. Inventory Tracking: Real-time stock updates with cloud-based WMS software.

2. Order Fulfillment: Fast, accurate picking and packing with mobile connectivity.

3. Asset Monitoring: Seamless data exchange with RFID and IoT devices.

4. Logistics Coordination: Continuous communication across large facilities.
