Size: 10.1"
Touch Think 10.1 inch industrial touch screen AIO panel PC with the thin front bezel, excellent for embedded mount in industrial applications. It equipped with a highly integrated industrial-grade motherboard, offering a powerful platform for use in machine construction.

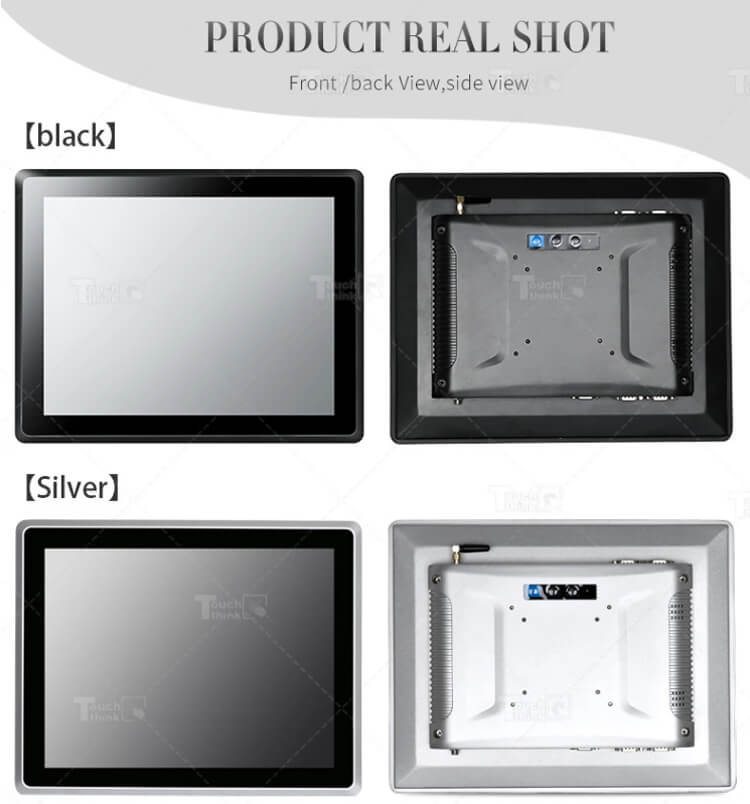

Product Color
10.1" Fanless Industrial Touch Screen All In One HMI Panel PC
Model: TPC101-W2
Touch Think industrial multi-touch all-in-one panel PCs are produced with durable and reliable industrial-grade quality. Supports Windows 7/10/11, and Ubuntu, Centos (7.4/7.8) / Redhat7.4 / Debian7.0. supporting multi-language menu. Offering OEM/ODM customization service for global customers even for one unit. We have offered a number of one-stop solutions for customers from domestically and abroad in the industry of IoT, automation, intelligent terminal devices, etc.
Touch Think Industrial All-in-One PC Features
• Standardized interfaces for hardware & software, support multi-interface customization.
• Expandable HMI solutions with multiple configurations for the access control system, such as face recognition, identity authentication, etc.

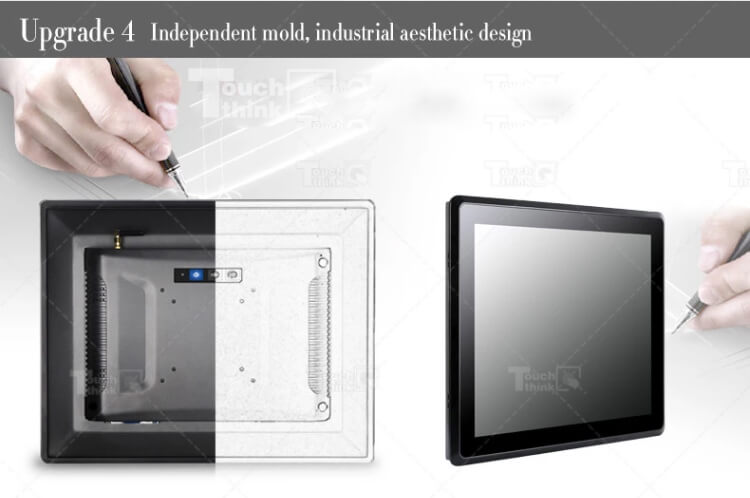

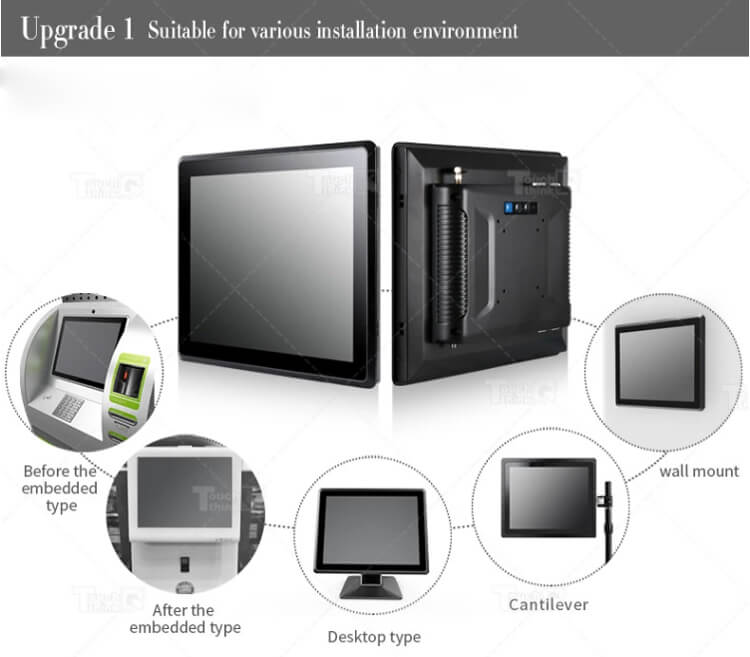

• The front frame is made of aluminum alloy with arc chamfer, general design, suitable for desktop, wall-mounted, embedded, and other installation methods (VESA, panel mount).

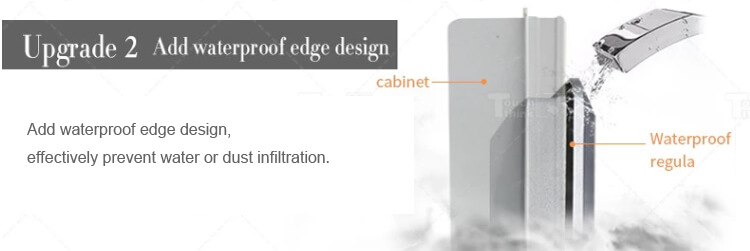

• Waterproof edge design to effectively prevent water and dust infiltration, and good shock and vibration relief effect, which improves the product practicability and makes it more consistent with the cabinet.
• Adopt the industrial-grade components, quad-core, and four-thread, excellent performance in lightning protection, anti-static, and anti-surge.

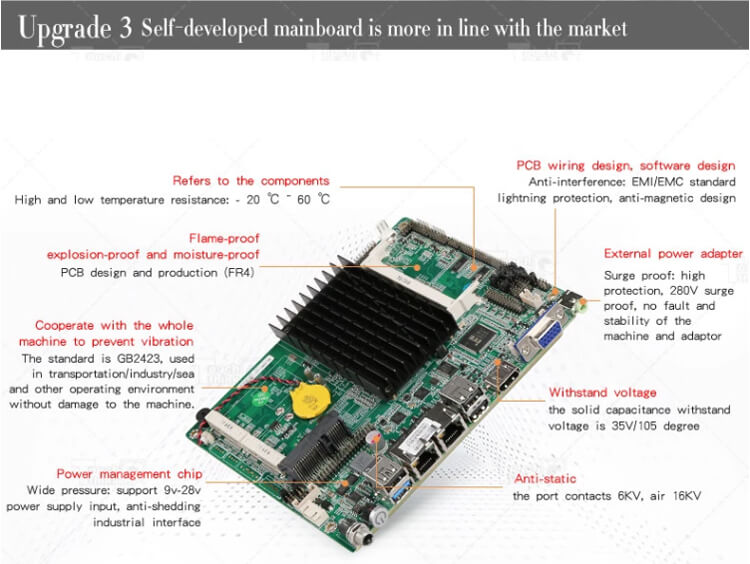

• PCB in the self-developed industrial mainboard uses environment-friendly materials to prevent fire, explosion, and dampness. Prolong the industrial panel PC's span life.

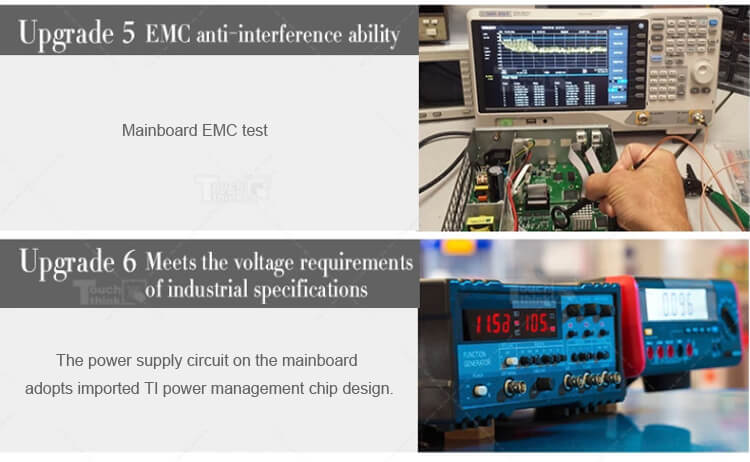

• The mainboard adopts an anti-interference electronic components design, and the anti-interference of the industrial tablet PC reaches the EMI/EMC standard.
• The power supply circuit on the mainboard adopts an imported TI power management chip design, the power input voltage reaches 9-28 V, which meets various voltage requirements of industrial specifications.
10.1" Industrial Touch Panel PC
Display Parameters | Size | 10.1" | |||||
Resolution | 1280*800 | ||||||
Screen Ratio | 16:10 | ||||||
Brightness | 400 nits (Optional high brightness) | ||||||
Contrast Ratio | 1000:1 | ||||||
Viewing Angle | 85/85/85/85 (L/R/U/D) | ||||||
Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
Motherboard Model Selection | CL-J1900B | CX-J4125-A | CX-J6412 | CX-12U01 | CX-12U01 | CX-12U01 | |
i3-1215U | i5-1235U | i7-1255U | |||||
System Architecture | CPU | Intel Celeron J1900 Quad-Core 2.0GHz | Intel Celeron J4125 Quad-Core 2.0GHz | Intel Celeron J6412 Quad-Core 2.0GHz | Intel Core i3 1215U 1.2GHz | Intel Core i5 1235U 1.3GHz | Intel Core i7 1255U 1.7GHz |
Architecture | Intel Bay Trail | Intel Gemini Lake Refresh | Intel Elkhart Lake | Intel Alder Lake | |||
GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 | |
Memory | DDR3 8GB | DDR4 4/8GB | DDR4 8/16GB | DDR4 32GB | |||
Storage | 16GB (optional: 32/64/128/256/512GB) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 64/128GB SSD (optional: 256GB/512GB SSD, 1T/2T HDD) | |||
SATA | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | |||
MSATA | 1*MSATA | 1*MSATA | 1*MSATA | / | |||
M.2 | / | / | 1*M.2 | 1*M.2 | |||
Operating System | Win 7/10 | Win 10/11 | Win 10/11 | Win 10/11 | |||
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | / | ||||||
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6 | Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6 | / | |||||
Networking | Ethernet | 2*10M/100M/1000M adaptive Ethernet | |||||
4G | Support | ||||||
5G | / | / | / | M.2 5G | |||
WIFI | Dual-band 2.4/5GHz | ||||||
Bluetooth | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | |||
Display Function | LVDS | Support 1920*1080 60Hz output | |||||
EDP | Supports 3840*2160 60Hz output | Supports 4096*2160 60Hz output | Supports 4096*2304 120Hz output | ||||
VGA | Support 1920*1080 60Hz output | ||||||
HDMI | Supports 3840*2160 30Hz output | Supports 4096*2160 30Hz output | Supports 4096*2304 60Hz output | ||||
Touch Function | Touch Interface | USB | USB | USB | USB | ||
I/O Ports | USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*2 on board | USB2.0*2 + USB2.0*4 on board | ||
Type-C | / | / | / | 2*type-c | |||
USB 3.0 | / | USB3.0*2 | USB3.0*2 | USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C) | |||
RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion) | ||||||
RS485 | 1*RS232/RS422/RS485 mutual conversion | ||||||
RS422 | 1*RS232/RS422/RS485 mutual conversion | ||||||
TTL | / | / | / | / | |||
GPIO | GPIO*8 (input/output) | ||||||
SIM Slot | 1*SIM Slot + 1*SIM Slot on board | ||||||
MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | / | |||
Speaker | 4PIN on board supports 8Ω5W | Built-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier | |||||
MIC | Support | Support | Support | Support | |||
Audio Port | 3.5mm earphone jack, support input/output | ||||||
I/O Expansion | Support | ||||||
Power | Power Input | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | ||
Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 4A | |||
Mechanical | Dimension | 293.6*193.6*48.5mm | |||||
Enclosure | Aluminum alloy housing | ||||||
Cooling System | Fanless | Fanless | Fanless | Fanless | |||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -10°C ~ 60°C | |||||
Storage Temp | -20°C ~ 70°C | ||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
IP rating | Front IP65 | ||||||
Touch Think industrial panel PCs are suitable used in industrial automation, Internet of things, industrial robots, factory production lines,. etc.
We offer OEM and ODM service for your massive orders items.
