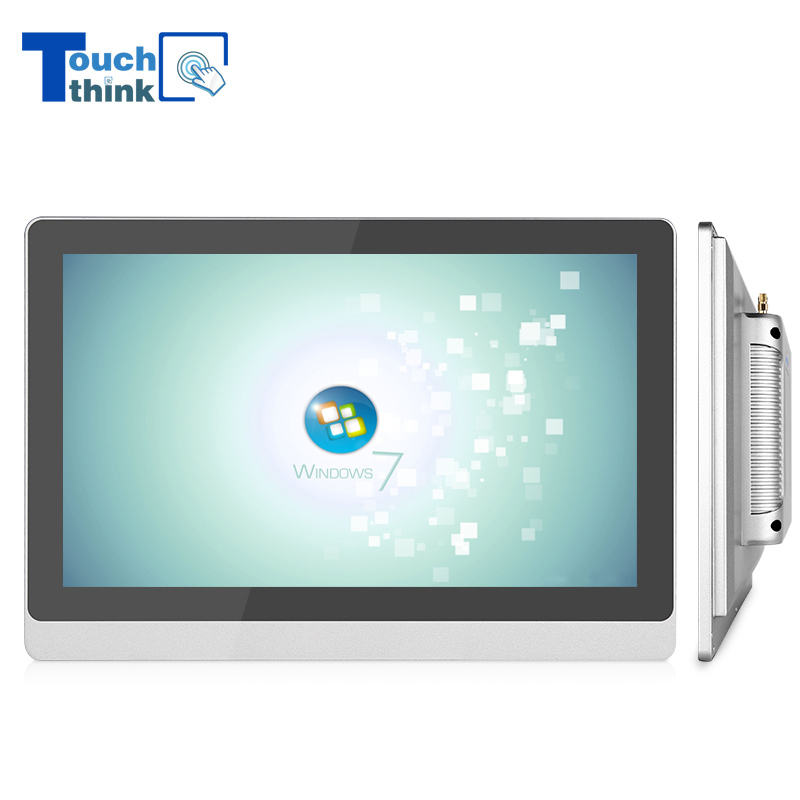

IP65 Protection 19.1 inch Industrial Panel PC with Intel Celeron J1900 High Brightness Panel PC

Size: 19.1"

This 19.1" industrial panel PC equipped with industrial mainboards, excellent for embedded computing solutions for digital signage, retail, healthcare, hospitality, medical equipment, and industrial automation.

Product Color

  • product description
  • Product parameters
  • Application

IP65 Protection 19.1 inch Industrial Panel PC with Intel Celeron J1900

Model: TPC191-W42

•  LCD display: 19.1-inch

•  Resolution: 1440*900

•  Aspect ratio: 16:10 widescreen

•  CPU: Celeron J1900, quad-core, fanless, 2.0Ghz by default (upgradable)

•  RAM: 2G DDR3 (4/8/16G optional)

•  Memory: 64G SSD (128/256G optional)

•  Operting system: Windows 7 / 8 / 10 / 10 Pro, Linux, Ubuntu

•  Touch technology: Capacitive (Resistive / Non-touch optional)

Built for industrial applications. The 19.1” LCD touch screen panel PC utilizes the P-CAP touch control and can be configured with different RAM, SSD, and I/O interfaces. It also features a 24/7 long time wide temperature operation, and wide voltage input, enabling remote control and monitoring, allowing for even more flexibility to communicate with wide area networks.

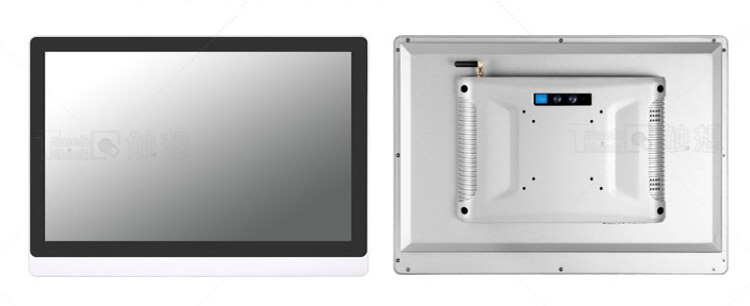

Touch screen 19.1" industrial tablet PC with X86 Architecture is designed to operate under harsh and complex industrial conditions. IP65 rating is dust-proof and waterproof for the front panel. Its10mm thickness for the bezel, strong impact resistance. They are also designed to withstand vibration and shock. To ensure the products are safe during shipment. The panel PC is designed with a fanless heat-dissipation system, without noise during operation. Easy-to-install and easy maintenance for the operator. Offer single-point resistive touch screen. excellent for industrial harsh environments.

IP65 Protection 19.1 inch Intel Celeron J1900

Touch Think Industrial Panel PC Features

● 19.1-inch LCD display with 16:10 aspect ratio and long service-life LED backlight.

● Fanless heating-dissipation design and with Intel® Celeron® processor J1900.

● IP65-rated for the front bezel, and dust-proof for the whole panel pc.

● Multiple interfaces are provided to meet different applications.

● Easy-to-maintain design for memory and storage.

● Supports desktop stand, wall mount, panel mount, VESA arm, and embedded mount.

● Aluminum alloy housing for better thermal dissipation and reliability.

● Ambient light sensors to increase or decrease screen brightness automatically.

● Three-year warranty

● Touch Think offers multiple functional module customization services.

Screen parametersScreen size19.1 inch
Proportion 16:10 widescreen
Motherboard parameters CPUIntel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7)
Hard Disk32G SSD (Optional 64G SSD/500G HDD)
Memory 2G DDR3 (supports 8G DDR3)
Audio Integrated Audio Chip
NetworkIntegrated Gigabit LAN
Wireless network built-in wifi antenna, support wireless connection
Graphics Cards Integrated Graphics
System pre-installed windows7, support other version
Speakers available
Interface parametersUSB interface8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1
Serial Interface8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol
WIFI connector WIFI antenna*1
Power InterfaceDC 12V*1
High-definition interfaceHDMI*1
Extended displayVGA*1, support for synchronous dual display and differential display
Network interfaceRJ-45*1
Audio InterfaceAudio I/O
Support extensionsMultiple industry interface support customization
Display parametersColor16.7M
Point distance 0.264mm
Screen Panel

 Industrial control panel

Display brightness400cd/m2 (customizable high brightness above 400cd/m2)
View angle(H160 (V) 160, customizable wide viewing angle 178°
Backlight type LED backlit screen Lifetime ≥ 50000h
Gray-scale response time 5ms
Touch OptionalResistive/Capacitive/Infrared Touch Screen
Installation methodEmbedded, desktop, wall-mounted, cantilever
Other parametersPower12V-5A Professional External Power Adapter
Power consumption ≤60W
Working temperature-10°C~60°C
Storage temperature-20°C~60°C
Relative humidity0%-65% (without condensation)
MaterialFull body made of aluminum alloy material
Color Silver Black
Warranty PolicyOne year free warranty
Degree of protection Front panel IP65 dustproof and waterproof
Packing list Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card

Touch Think offers a full line of industrial panel PC with front IP65 approved in sizes from 7" to 23.8". They are ideal for demanding applications including factory, machinery building, medical, retail, transportation, marine, and building automation. Supports PLC/HMI/SCADA applications and improves the efficiency of machine manufacturing.

Touch Think industrial monitors support customization services such as logo, appearance, color, installation methods, I/O ports, high brightness, viewing angle, touchscreen types, etc.

Contact us now to start your OEM/ODM projects!
