Size: 8"
The touch panel computer fit most manufacturing scenario with all in one design, industrial grade motherboard and fanless heating-dissipation constructure to meet extreme temperature, vibration and shock tolerance.
Product Color

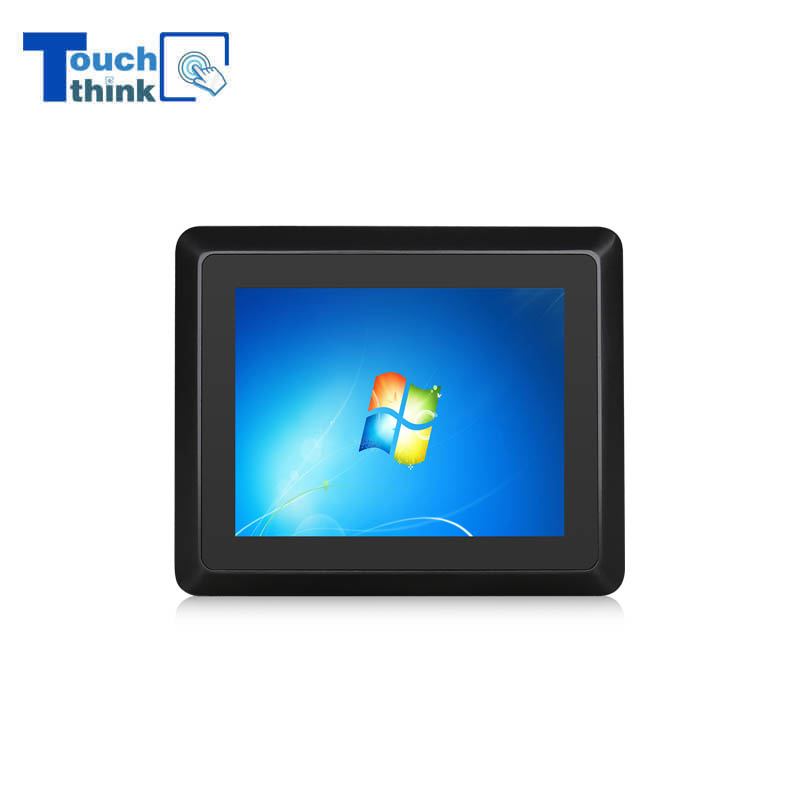

Industrial Touch Screen Panel PC All in One Linux / Windows 8 Inch
Model: TPC080-W-QD
This industrial panel PC with a touch screen is designed with good-looking and thin front bezels, only 7mm, well for embedding into the cabinet, console, and other equipment. It comes with 4 / 5-wire resistive or ten-point capacitive touch screens, also offers a non-touchscreen for some customers. And screen customization options such as explosion-proof, anti-glare, 178° full viewing angle, high resolution, TFT panels and high brightness, wide temperature, and wide voltage operation. With flexible I/O and high reliability for machine automation, factory automation, and other harsh indoor or outdoor applications.
Product Features
● 8-inch LCD monitor
● Capacitive & resistive options
● Powered by Intel® Celeron®J1900 processor
● Fanless design, low power consumption
● IP65 front-panel dust/waterproof protection
● Suitable for PLC / HMI / SCADA applications
● Support Charts, Alarm, Data Log, Scheduler, Report, VNC, OpenVPN, FTP, etc.
● Supports PCI-E (x1) and PCI expansion
Industrial Panel PC - Product Model Quick Guide
| Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now! |
| TPC070-W-QD | 7" | 1024*600 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC080-W-QD | 8" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC101-W2 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC104-W2 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC116-W2 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC120-W2 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC150-W2 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC156-W2 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC170-W2 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC173-W2 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC190-W2 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC191-W2 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC215-W2 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC238-W2 | 23.8" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| Screen parameters | Screen size | 8 inch |
| Model | TPC080-W-QD | |
| Resolution | 1024*768 | |
| Proportion | 4:3 square screen | |
| Motherboard parameters | CPU | Intel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual-core, optional Intel H81 equipped with Core i3/i5/i7) |
| Hard Disk | 32G SSD (Optional 64G SSD/500G HDD) | |
| Memory | 2G DDR3 (supports 8G DDR3) | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | Pre-installed with Windows7, support Win8/Win10 | |
| Speakers | Available | |
| Interface parameters | USB interface | 8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1 |
| Serial Interface | 8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol | |
| WIFI connector | WIFI antenna*1 | |
| Power Interface | DC 12V*1 | |
| High-definition interface | HDMI*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O | |
| Support extensions | Multiple industry interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 800:1 | |
| Display brightness | 400cd/m2 (customizable high brightness above 400cd/m2) | |
| View angle | (H160 (V) 160, customizable wide viewing angle 178° | |
| Backlight type | LED-backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Resistive/Capacitive/Mouse Control | |
| Installation method | Embedded, desktop, wall-mounted, VESA | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Full body made of aluminum alloy material | |
| Color | Silver / Black | |
| Warranty Policy | Three-year warranty in all, one year for free | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |
Our industrial tablet PCs are suitable for universal use, such as healthcare devices, building automation, industrial automation, industry 4.0, IOT, commercial terminals, POS system, fleet management, logistics and warehouse management,. etc.
If you need advice for your special application, do not hesitate to contact our technical sales or support. We will find the right solution together.
We support kinds of customization service, please feel free to contact us for details.
