Size: 17"
TPC170-W4 is a 17-inch industrial touchscreen panel PC comes with a 10mm front bezel, ideal for industrial sites and special applications. This industrial panel PCs offer industrial intelligent touch control & display solutions for many smart manufacturing and processing operations. They're built to highly reliably withstand long-term operation.
Product Color

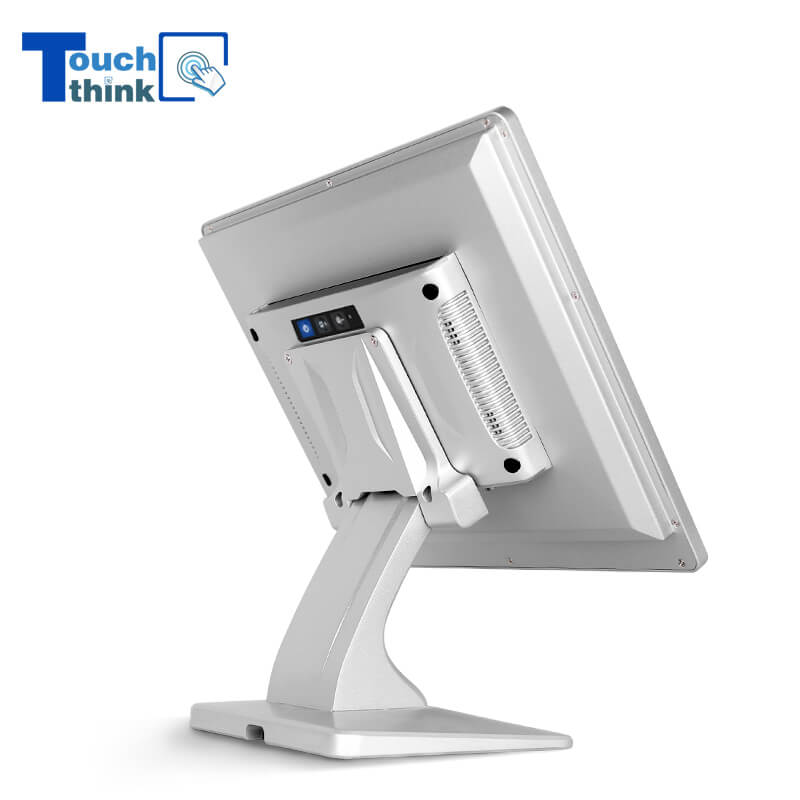

Rugged Design Aluminum Fanless Industrial Touch Screen Panel PC 17-inch
Model: TPC170-W4
Touch Think provides thousands of solutions for industrial automation, AI, IoT, commercial smart terminal, etc for the global market. The newest designed fourth-generation industrial all-in-one-panel PCs support the Windows system. And they are designed to work under harsh industrial conditions for a long time. Touch Think also offers multi customization services in terms of appearance, screen size, screen types, and function module.
The TPC170-W4 is engineered for continuous operation in demanding industrial environments. Its rugged aluminum chassis and fanless thermal design eliminate moving parts, reducing maintenance requirements and improving long-term reliability.
The 17-inch 5:4 display provides an optimized viewing area for industrial software interfaces, SCADA dashboards, machine monitoring applications and production management systems. The front IP65 protection effectively resists dust, oil mist and water splashes commonly found in factory environments.
Supporting multiple Intel processor platforms, the system offers flexible computing performance for applications ranging from basic HMI control to advanced industrial data processing.
Rugged Aluminum Construction
The CNC-machined aluminum housing improves structural strength and heat dissipation performance while protecting internal components.
Fanless Cooling Architecture
Passive cooling technology minimizes dust accumulation and significantly reduces maintenance requirements.
Wide Voltage Input
Supports 12V to 36V DC input for integration with industrial control cabinets and equipment power systems.
Flexible Mounting Options
Supports desktop stand, wall mounting, VESA installation and ceiling-mounted for various equipment designs.
Industrial-Grade Expandability
Multiple serial ports, USB interfaces, dual Gigabit Ethernet and optional wireless communication modules provide extensive connectivity.
Q1: Is this industrial panel PC suitable for 24/7 operation?
Yes. The fanless architecture and industrial-grade components are designed for continuous operation in demanding environments.
Q2: Does the panel PC support outdoor installation?
The front panel is rated IP65 for protection against dust and water splashes. High-brightness displays and wider operating temperature ranges can be customized for semi-outdoor deployments.
Q3: Which operating systems are supported?
Depending on the selected processor platform, the system supports Windows 10, Windows 11, Ubuntu, Debian, CentOS and other Linux distributions.
Q4: Can I customize interfaces and screen brightness?
Yes. Touch Think provides customization services including screen brightness, touch technology, I/O interfaces, wireless communication modules and enclosure modifications.
| Display Parameters | Size | 17" | |||||
| Resolution | 1280*1024 | ||||||
| Screen Ratio | 5:4 | ||||||
| Brightness | 250~300 nits (Optional high brightness) | ||||||
| Contrast Ratio | 1000:1 | ||||||
| Viewing Angle | 85°/85°/80°/70° (L/R/U/D) | ||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
| Motherboard Model Selection | CL-J1900B | CX-J4125-A | CX-J6412 | CX-12U01 | CX-12U01 | CX-12U01 | |
| i3-1215U | i5-1235U | i7-1255U | |||||
| System Architecture | CPU | Intel Celeron J1900 Quad-Core 2.0GHz | Intel Celeron J4125 Quad-Core 2.0GHz | Intel Celeron J6412 Quad-Core 2.0GHz | Intel Core i3 1215U 1.2GHz | Intel Core i5 1235U 1.3GHz | Intel Core i7 1255U 1.7GHz |
| Architecture | Intel Bay Trail | Intel Gemini Lake Refresh | Intel Elkhart Lake | Intel Alder Lake | |||
| GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 | |
| Memory | DDR3 8GB | DDR4 4/8GB | DDR4 8/16GB | DDR4 32GB | |||
| Storage | 16GB (optional: 32/64/128/256/512GB) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD) | |||
| SATA | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | |||
| MSATA | 1*MSATA | 1*MSATA | 1*MSATA | / | |||
| M.2 | / | / | 1*M.2 | 1*M.2 | |||
| Operating System | Win 7/10 | Win 10/11 | Win 10/11 | Win 10/11 | |||
| Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | / | ||||||
| Centos7.4/7.8/7.9; Redhat7.4; Debian11.6 | Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6 | / | |||||
| Networking | Ethernet | 2*10M/100M/1000M adaptive Ethernet | |||||
| 4G | Support | ||||||
| 5G | / | / | / | M.2 5G | |||
| WIFI | Dual-band 2.4/5GHz | ||||||
| Bluetooth | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | |||
| Display Function | LVDS | Support 1920*1080 60Hz output | |||||
| EDP | Supports 3840*2160 60Hz output | Supports 4096*2160 60Hz output | Supports 4096*2304 120Hz output | ||||
| VGA | Support 1920*1080 60Hz output | ||||||
| HDMI | Supports 3840*2160 30Hz output | Supports 4096*2160 30Hz output | Supports 4096*2304 60Hz output | ||||
| Touch Function | Touch Interface | USB | USB | USB | USB | ||
| I/O Ports | USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*2 on board | USB2.0*2 + USB2.0*4 on board | ||
| Type-C | / | / | / | 2*type-c | |||
| USB 3.0 | / | USB3.0*2 | USB3.0*2 | USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C) | |||
| RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion) | ||||||
| RS485 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| RS422 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| TTL | / | / | / | / | |||
| GPIO | GPIO*8 (input/output) | ||||||
| SIM Slot | 1*SIM Slot + 1*SIM Slot on board | ||||||
| MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | / | |||
| Speaker | 4PIN on board supports 8Ω5W | Built-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier | |||||
| MIC | Support | Support | Support | Support | |||
| Audio Port | 3.5mm earphone jack, support input/output | ||||||
| I/O Expansion | Support | ||||||
| Power | Power Input | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | ||
| Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 4A | |||
| Mechanical | Dimension | 383.3*340.7*61.9mm | |||||
| Enclosure | Aluminum alloy housing | ||||||
| Cooling System | Fanless | Fanless | Fanless | Fanless | |||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -10°C ~ 60°C | |||||
| Storage Temp | -20°C ~ 70°C | ||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
| IP rating | Front IP65 | ||||||
Smart Manufacturing
Monitor production lines, visualize process data and control automated equipment through intuitive touch operation.
CNC Machinery
Integrate directly with CNC controllers, machine tools and industrial gateways to provide stable operation under vibration and continuous workloads.
Industrial Automation Systems
Deploy as HMI terminals for PLC communication, equipment monitoring and process visualization.
Warehouse Automation
Display logistics information, equipment status and inventory management interfaces in distribution centers and smart warehouses.
Energy Management
Operate as local monitoring terminals for electrical cabinets, environmental monitoring systems and industrial energy management platforms.
Screen Customization for Touch Think Industrial All-in-one Panel PCs
1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.
2. Photosensitive head: customize the screen brightness automatically based on ambient light.
3. All perspective: standard 160°, 178° WVA customized.
4. Touch screen: resistive touch screen, capacitive touch screen, IR touch screen, or mouse control.
5. High-resolution screen: customize higher resolution than a standard LCD screen.
6. Screen size: support to the customized screen.
7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.
Other Customizations for Touch Think Industrial All-in-one Panel PCs
1. Appearance customization: support appearance design, sample customization.
2. Working temperature: standard temp is -10~+60°C, we can customize wider working temp: -30~+80°C.
3. LOGO customization.
4. System software customization: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Wide voltage: 9V-36V.
7. Special materials: for special occasions.
8. IP grade: The industrial PCs can be customized fully-sealed dust-proof and waterproof.
