Industrial Touch Screen Monitors With IP65 Protection 10.4 inch

Size: 10.4"

This 10.4" industrial touch screen monitor built with an ultra-thin 3mm front bezel, perfect for the embedded mount in the industrial automation application, and its IP65 dust/water-proof protection, wide temperature operation, anti-shock, and anti-electromagnetic interference offering a reliable guarantee for heavy-duty applications.

Product Color

Industrial Touch Screen Monitors With IP65 Protection 10.4 inch Display


This Touch Think 10.4-inch ultra-slim industrial touch screen monitor with IP65 rated dust-proof and waterproof for the front panel and adopts a capacitive or resistive touch screen technology, also supports mouse control (Non-touch screen). It can be used in indoor/outdoor applications. Offers flexible multi-signal inputs including VGA, DVI-D, and HDMI, etc


Touch Think Industrial Touch Screen Monitor Features


• Aluminum alloy housing, antioxidant, good heating- dissipation.

• 3mm thin front bezel design monitors, suitable for embedding into the cabinet in various applications.

• Adopts industrial A+ quality screen, long service life for LED backlight LCD screen,

• Triple protection from flame-proof, explosion-proof, and dust-proof for the whole monitor.

• Adopt industrial-grade inner components to ensure 24*7 long-term running without interruption.

• sunlight-readable screens for kinds of outdoor devices, i.e, self-service equipment, express cabinet, ATM, etc.

• Compliance with EMI / EMC anti-interference standard.

• OEM/ODM customization services for I/O interfaces.

• Wide working temperature: -10~60°C for harsh conditions.


  • product description
  • Product parameters
  • Application
  • OEM/ODM


Touch Think Industrial Touch Screen Monitor Display


Industrial Touch Screen Monitors With IP65 Protection 10.4 inch

Industrial Touch Screen Monitors With IP65 Protection 10.4 inch

Industrial Touch Display Monitor IP65 10.4"

Industrial Touch Screen Monitors With IP65 Protection 10.4 inch

Industrial Touch Display Monitor IP65 10.4"

Industrial Touch Display

All industrial touch screen monitors are designed well-performed in harsh environments.

Industrial Touch Display Monitor IP65 10.4"

Industrial Touch Screen Monitors With IP65 Protection 10.4 inch

Industrial Display


Touch Think Industrial Monitors Application


Industrial Monitor









Screen parametersScreen size10.4 inch
ModelTPC104-M2
Resolution1024*768
Proportion4:3 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160° (178° full viewing angle is customizable)
Brightness 400cd/m2 (high brightness customizable)
Touch typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever, VESA
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian

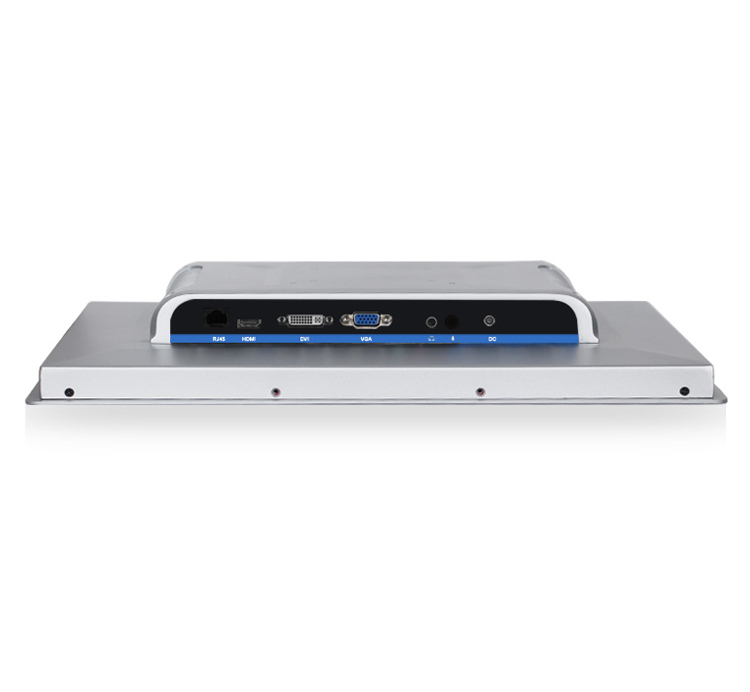

O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


This 10.4-inch industrial LCD monitor suited used in projects such as industrial equipment automation display panels, indoor or outdoor touch screen kiosks, instrumentation panel displays, self-service booths, and ATM machines. The sturdy aluminum alloy housing is milled from a CNC machine and maintains high quality throughout the whole process.



FAQ of Industrial Monitor:


1. What is the difference between LCD and LCM?

-  LCD: Liquid Crystal Display LCD; LCM: Liquid Crystal Module LCD module (including components).


2. What happens when the working temperature is lower than the working temperature specified by an industrial LCD monitor?

-  The response time is slow, the contrast is affected, the service life of the cold cathode backlight tube is sharply shortened, and the backlight may not be lit.


3. What happens when the working temperature is higher than the working temperature specified by an industrial LCD monitor?

-  The response time of the display screen is shortened and the contrast is affected. Some IC noise will increase, DC-DC conversion will drift, a polarizer will be affected.


4. Is the front surface of the industrial LCD monitor screen vulnerable to scratch?

-  The hardness of the front surface of the LCD screen is generally 3H, which is very easy to be scratched with sharp tools.




We offer OEM/ODM customization service for global customers, please contact us for details.
