Size: 15.6"
This industrial capacitive & resistive touch screen monitor is IP65 rated and wide temperature & wide voltage operation available, making it ideal for harsh industrial environments.
Product Color
15.6" Industrial LCD Display Monitor With HDMI, DVI, VGA & AV Inputs
Model: TPC156-M5
This industrial capacitive & resistive touch screen monitor is IP65 rated and has wide temperature & wide voltage operation available, making it ideal for harsh industrial environments. Also provides a wide viewing angle, providing clear, vivid color images with consistent and accurate colors from all viewing angles, and its stable and fast response times offer an excellent operation experience for users.
Product Features
• 1920x1080 high resolution, 16 : 9 aspect ratio
• IP65 / NEMA4X rated dust and water resistance
• Standard 350cd/m2, support 600cd/m2 with long-life LED backlight
• Wide viewing angle IPS (In-Plane Switching) LCD panel
• Automatic backlight adjustment through a built-in ambient light sensor
• Single-point resistive & projected capacitive Multi-point touch screen
• Optical bonding, anti-fingerprint, and anti-reflective coating
• Supports 12 ~ 24V DC, anti-falling off design for DC ports
• High-Performance Image and Video Signal Processor
• Last input and power setting memory
• Built-in waterproof speaker
• Plug-and-Play function

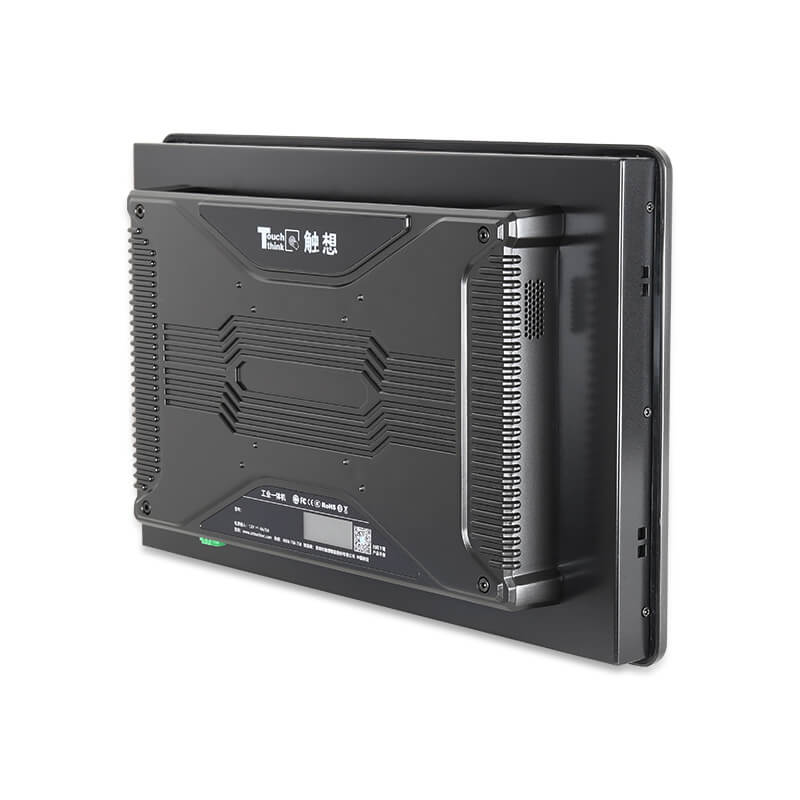

• VESA 75/100mm mounting holes on rear cover
• Heavy-duty connector with connector locking
• Ruggedized Aluminum alloy casing
• OSD function
• FCC, CE, ROHS compliant
• 3 Year/36-month warranty
Touch Think Industrial LCD Monitor With Touch Screen
Product Model Quick Guide
| Model | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now! |
| TPC101-M5 | 10.1" | 1280*800 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC104-M5 | 10.4" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC116-M5 | 11.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC120-M5 | 12" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC150-M5 | 15" | 1024*768 | 4:3 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC156-M5 | 15.6" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC170-M5 | 17" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC173-M5 | 17.3" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC190-M5 | 19" | 1280*1024 | 5:4 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC191-M5 | 19.1" | 1440*900 | 16:10 | Capacitive / Resistive / Non-touch | Inquiry |
| TPC215-M5 | 21.5" | 1920*1080 | 16:9 | Capacitive / Resistive / Non-touch | Inquiry |
| Screen parameters | Screen size | 15.6 inch |
| Model | TPC156-M5 | |
| Resolution | 1920*1080 | |
| Proportion | 16:9 square screen | |
| Gray-scale response time | 5ms | |
| Panel Type Industrial | Control A style TFT | |
| Point distance | 0.264mm | |
| Contrast | 800:1 | |
| Backlight type | LED, use length≥50000h | |
| Display color | 16.7M | |
| Visual angle | 160/160° (178° full view angle customizable) | |
| Brightness | 350cd/m2 (high brightness customizable) | |
| Touch-type | Resistive / capacitive / mouse control | |
| Number of touches | ≥ 50 million times | |
| Other parameters | Power Supply | 4A External Power Adapter |
| Power Performance | 100-240V, 50-60HZ | |
| Input voltage | 12-24V | |
| Anti-static | Contact 4KV-air 8KV (≥16KV can be customized) | |
| Power | ≤48W | |
| Anti-vibration | GB2423 standard | |
| Anti-interference | EMC|EMI anti-electromagnetic interference | |
| Dustproof and waterproof | Front IP65 dustproof and waterproof | |
| Housing Material | Black/Silver, Aluminum Alloy | |
| Installation method | Embedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame. | |
| Ambient temperature | <80%, non-condensable | |
| Working temperature | -10°C～60°C (customizable -30°C～80°C) | |
| Language menu | Chinese, English, German, French, Korean, Spanish, Italian, Russian, etc. | |
| O/I interface parameters | Signal Interface | DVI, HDMI, VGA |
| Power connector | DC with ring attachment (optional DC terminal block) | |
| Touch interface | USB | |
| Other interfaces | Audio input and output |
Touch Think industrial Monitors are widely used in the following fields:
1. Industrial field control display;
2. Embedded in various devices as display devices;
3. As a display device in the host of telecommunications and network rooms;
4. Monitors for trains, subway stations, and ports;
5. Vehicle-mounted displays on train, subway, car;
6. Rugged or military standard displays are generally used in harsh outdoor environments, military vehicles, and warships;
7. Embedded into the advertising machine, which is widely applied to elevators, public places, and commercial office buildings of living quarters.
Touch Think industrial monitors support OEM/ODM customization service.
Screen Customization
1. High-light screen: default with 350cd/m2, support customization up to 1500cd/m2.
2. Photosensitive head: support screen brightness automatically adjusts based on ambient light.
3. Screen viewing angle: default with 160°, but all perspectives 178° WVA can be customized.
4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen, and non-touchscreen.
5. High-resolution screen: higher resolution than standard LCD screen can be customized.
6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.
7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.
Other Customization Items
1. Appearance customization: support appearance and product color design, sample customization.
2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.
3. LOGO customization.
4. System software: compatible with all software requirements.
5. I/O ports customization: support adding more ports according to your demands.
6. Wide voltage: 12V-24V.
7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.
8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof, and waterproof can be customized.
9. Installation methods: support different installation methods for different applications.
