Customized Industrial Panel Computer IP65 Waterproof Touch PC 17.3 Inch

Size: 17.3"

The 17.3-inch industrial touchscreen all-in-one PC based on the X86 platform, offers Win 7/8/10 for different applications.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

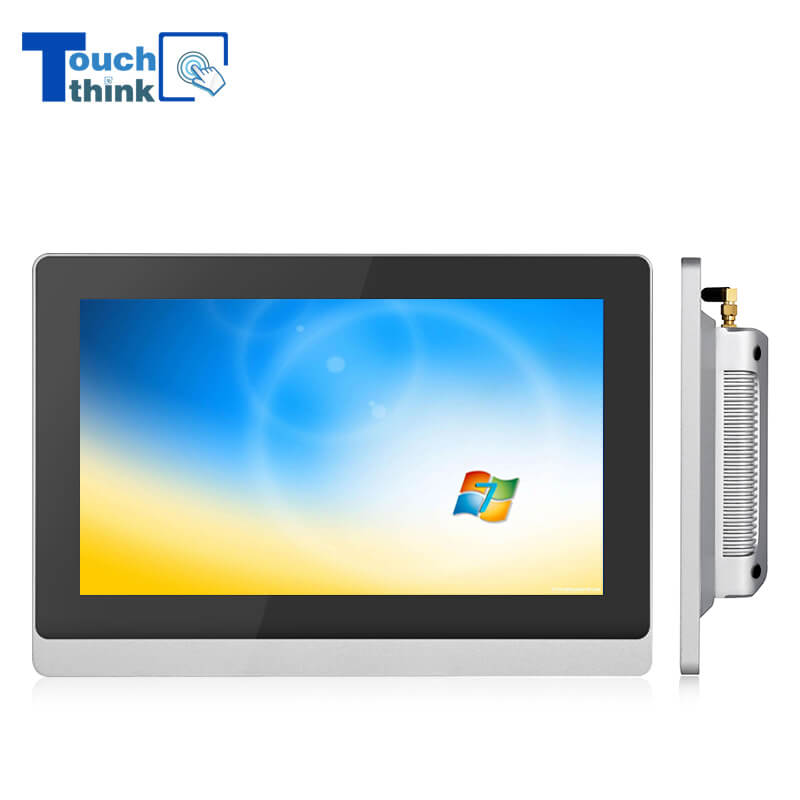

Customized Industrial Panel Computer with IP65 Waterproof All In One PC 17.3-inch


Model: TPC173-W4


Touch Think newest fourth-generation industrial all-in-one panel PC with a Windows system, designed with fanless heating dissipation, and lower working noise, which well-prolonged its service life. These all-in-one touch PCs can be installed in a wide range of environments due to their variety of mounting styles, such as wall mount, desktop, VESA arms, panel mount, and embedded.



Industrial Touch Screen Panel PC Features


1. Touch Think series industrial all-in-one panel PCs support multiple installation types, such as wall-mount, embedded, desktop, and VESA

2. Two standard colors: black and silver for the panel PC, but we provide appearance color customization service for customers.

3. All the industrial panel PCs are in compliance with IP65-rated waterproof and dustproof standards.

4. Working temperature range for industrial panel PC is -10~60 Celsius degrees.

5. Support long-time and all-weather running, up to 24/7 hours and without interruption.

6. The thickness of the front bezel is 10mm, well impact resistant.

7. Aluminium alloy shell, good mechanical properties, better performance for heat-dissipation.

8. It adopts industrial control HD LCD screen + LED backlight screen, highlights picture, and perfect color display.

9. Support resistive touch screen, capacity touch screen, IR touch, and mouse control.

10. Standard I/O interface: VGA, HDMI, DVI, automatic identification signal channel, support I/O expansion.

11. We choose very trustworthy express companies to ship industrial panel PCs to our clients.




Functional Module OEM / ODM


Manufacturer Customized Industrial Computer IP65 Waterproof All In One Pc 17.3"




Display ParametersSize17.3"
Resolution1920*1080
Screen Ratio16:9
Brightness400 nits (Optional high brightness)
Contrast Ratio600:1
Viewing Angle85°/85°/60°/80° (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options






Motherboard Model SelectionCL-J1900B
CX-J4125-ACX-J6412

CX-12U01

CX-12U01CX-12U01
i3-1215Ui5-1235Ui7-1255U
System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
MSATA1*MSATA1*MSATA1*MSATA/
M.2//1*M.21*M.2
Operating SystemWin 7/10Win 10/11

Win 10/11

Win 10/11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6

Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6

/






NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
4GSupport
5G

/

//M.2 5G
WIFIDual-band 2.4/5GHz
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)






Display FunctionLVDSSupport 1920*1080 60Hz output
EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
VGASupport 1920*1080 60Hz output
HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
Touch FunctionTouch InterfaceUSBUSBUSBUSB
I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0/USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
TTL////
GPIOGPIO*8 (input/output)
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
MICSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Support






PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension427.7*285.4*67.4mm
EnclosureAluminum alloy housing
Cooling SystemFanlessFanlessFanlessFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -10°C ~ 60°C
Storage Temp -20°C ~ 70°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65


































Touch Think industrial computers are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.

These industrial computers are suitable for desktop, wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.

In addition to the above areas, they are used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.




OEM/ODM Services for Touch Think Industrial Panel PCs


Screen Customization Service

1. High brightness screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspectives: standard 160°, 178° wide viewing angle customized.

4. Touch screen: capacitive touch screen PC, resistive touch screen panel PC, IR touch screen.

5. High-resolution screen: customize higher resolution than a standard LCD screen.

6. Screen size: support to the customized screen.

7.  Others: dust-proof, water-proof, explosion-proof, anti-glare, electromagnetic screen.


Other Customization Service


1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -10~60°C, we can customize wide temp: -20~70°C.

3. LOGO customization.

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Special materials: for special occasions.

7. IP grade: The industrial monitors can be customized fully sealed dust-proof and waterproof.
