Size: 21.5
This 21.5" medical computer designed with 7/24 for continuous operation. Featuring Celeron J1900 Quad-core processor, fanless, and aluminum alloy housing optimized for low power consumption. Standard with PCAP multi-touch (10 pt), WiFi, Bluetooth, and desktop, VESA mounting.
Product Color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”

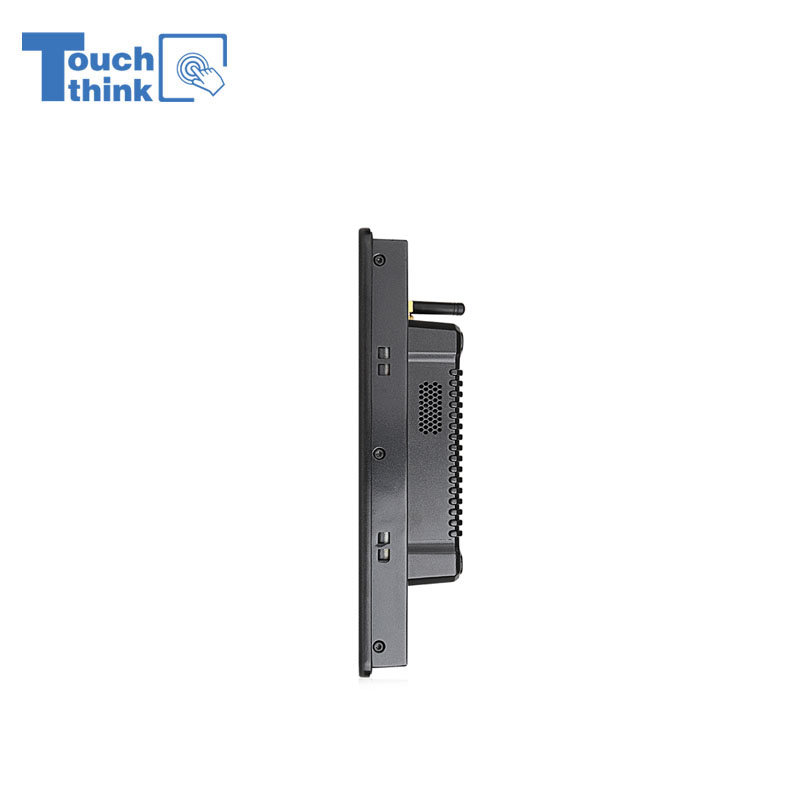

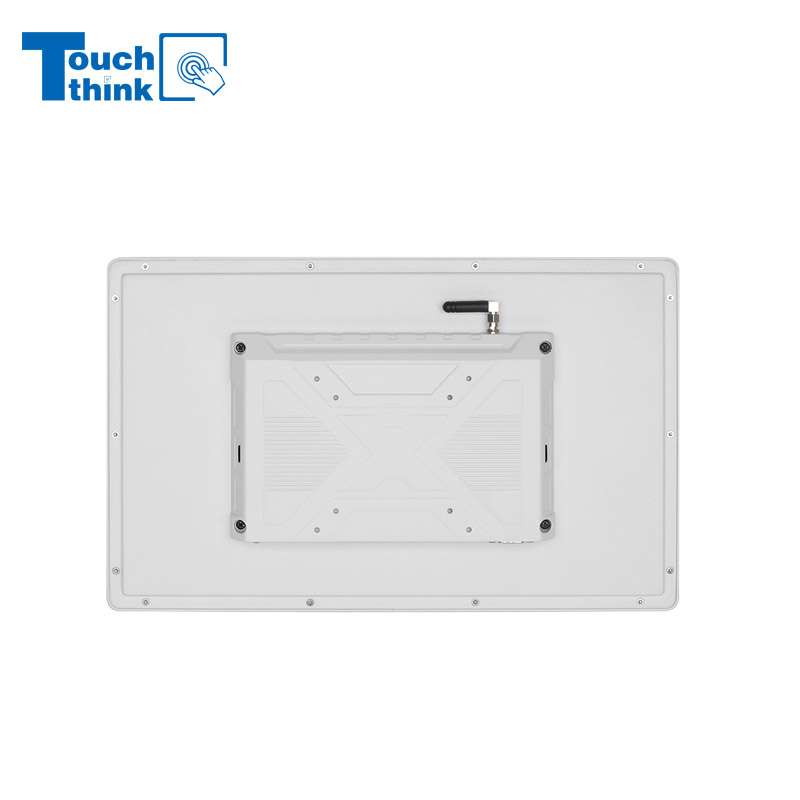

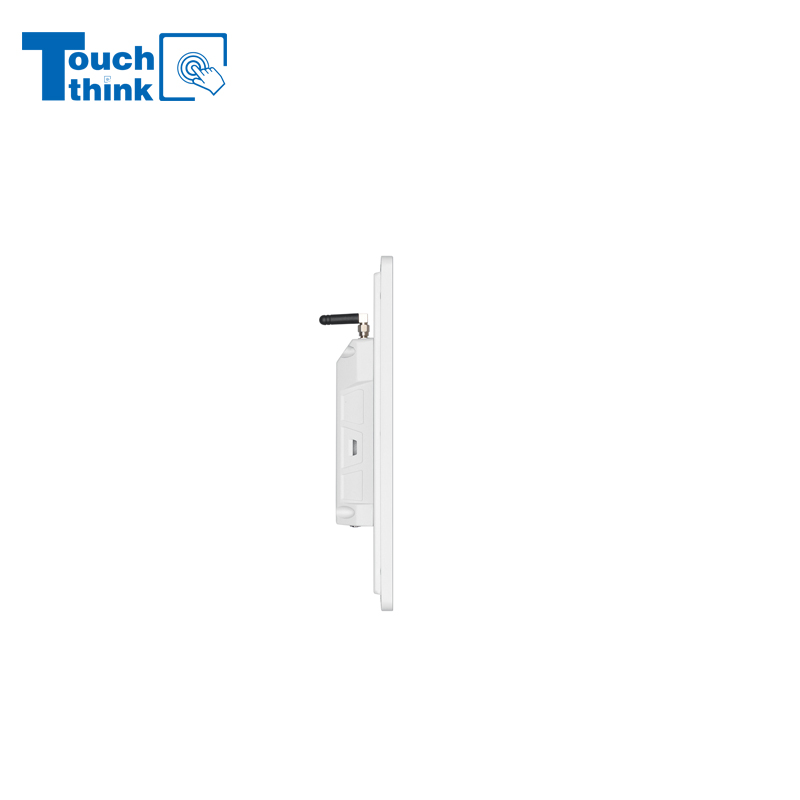

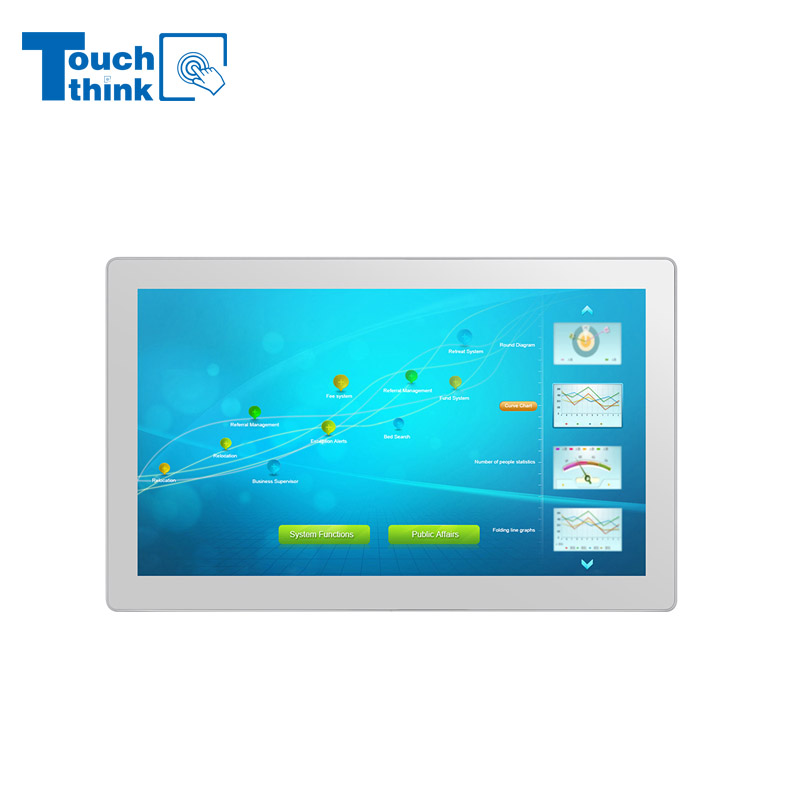

21.5" Widescreen Medical Grade Computer with Fanless and Android OS
This Touch Think 21.5 inch medical grade computer with Android operating system runs on an Intel
Celeron J1900 Quad-core processor and chipset, 21.5 inch display with 16:9 widescreen displays high
quality image and wide viewing angle for user in operating arenas, at nursing stations, bedside or other
point-of-care locations within the clinic or hospital.The system is highly compatible and offers abundant
choices for high speed I/O connector, and provide user-friendly osd function key on panel. The medical
grade computer housed in aluminum alloy casing, and 10mm front bezel, it's strong Antioxidant capaci-
tive and heat-dissipation performance. This All in one panel PC offer multi-point capacitive touchscreen
or non-touch screen. What's more, it support multiple popular function modules in market, such as NFC,
camera, Bluetooth 4.0, RFID, WLAN, etc.
Details of Touch Think Industrial Android Panel PC
● 21.5" full flat TFT LCD with projected capacitive touch control, aspect ratio is 16:9, 1920x1080.
● Fanless design, no noise operation with low power consumption.
● Wide range DC support (12 ~ 24 VDC).
● Supports dual displays.
● IP65-rated dust-proof and water proof for front panel.
● Embedded Intel® processor, quad core Celeron® J1900 1.5GHz onboard.
● Supports VESA 75, wall-mounted, embedded, desktop stand, open frame.
● True flat: easy-to-clean, true flat surface is more than just an elegant and stylish appearance.
They are easy to clean and maintain. No clogged dust on edges.
● We choose trustworthy logistic company to delivery your products
Touch Think Functional Module Customization Service
| Screen Parameter | Screen Size | 21.5 inch |
| Type | TPC215-A4 | |
| Resolution | 1920*1080 | |
| Aspect Ratio | 16:9 widescreen | |
| Motherboard Parameter | CPU | Default with A64 Cortex-A53 Quad-Core 64 Bits 1.5GHz (RK3399 Cortex-A9 Quad-Core 1.6GHz, or RK3288 Cortex-A17 Quad-Core 1.8GHz optional ) |
| Hard disk | 8G EMMC ( 4G/16G/32G/64G optional ) | |
| RAM | 2GB DDR3 ( 4G/8G optional ) | |
| ROM | 2KB EEPROM | |
| Operating System | Android 6.0 (support other version) | |
| Decoding Resolution | Support 1080P | |
| Play Mode | Support timing, circulation, and broadcast mode | |
| Network format | 3G, 4G, Ethernet, support wifi, Wireless peripherals | |
| Picture format | Support BMP、JPEG、PNG、GIF | |
| RTC | Support（The mixed cell） | |

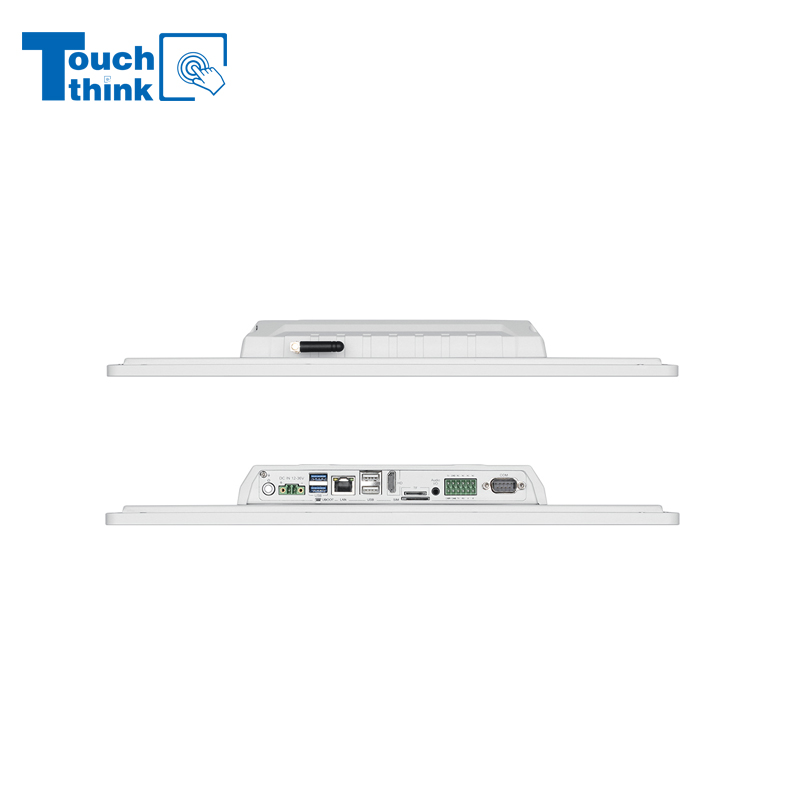

| Ports Parameter | USB port | USB2.0 (OTG）*1，USB2.0(HOST) * 1 |
| COM port | 8"-10.4"：COM*1，other size：COM*2，Default RS232 protocols, 422/485 protocols optional | |
| WIFI port | WIFI antenna*1 | |
| Power port | DC 12V*1 | |
| HDMI port | HDMI*1 | |
| Card slot | SIM card slot*1，TF card slot*1 | |
| Lan port | RJ-45*1 | |
| Audio port | Audio I/O | |
| Support extended | Multiple industry interfaces support customization | |
| LCD screen Parameter | Color | 16.7M |
| Dot pitch | 0.264mm | |
| TFT | Industrial A standard screen TFT panel | |
| Contrast | 1000:1 | |
| Luminance | 400cd/m2 (High brightness can be customized above 400cd/m2) | |
| Visual Angel | (H160(V)160，Customizable WVA 178° | |
| Backlight | LED backlight life≥50000h | |
| Response time | 5ms | |
| Touch option | Capacitive/Mouse Control | |
| Installation ways | Embedded、Desktop、Wall mount、Cantilever type | |
| Others | Power adapter | 12V-5A Professional external power adapter |
| Power Dissipation | ≤60W | |
| Operation Temperature | -10℃～60℃ (14°F~140°F) | |
| Storage Temperature | -20℃～60℃ | |
| Relative Humidity | 0%-65% (non-condensing) | |
| Material | Full aluminum alloy material | |
| Color | Silver/Black | |
| Warranty Policy | The whole machine is guaranteed free for one year | |
| IP grade | IP65 for the front bezel | |
| Packing list | Industrial Android Panel PC/install fittings/Power Cable/Power Adapter/Driver CD/Instruction Book/Warranty Card |
