Size: 21.5"
Touch Think 21.5-inch industrial panel PC with an Android system for diverse applications in several industries. Powered by RK3568 processors with flexible, reliable, and long-term support in fanless ultra-slim chassis design.
Product Color

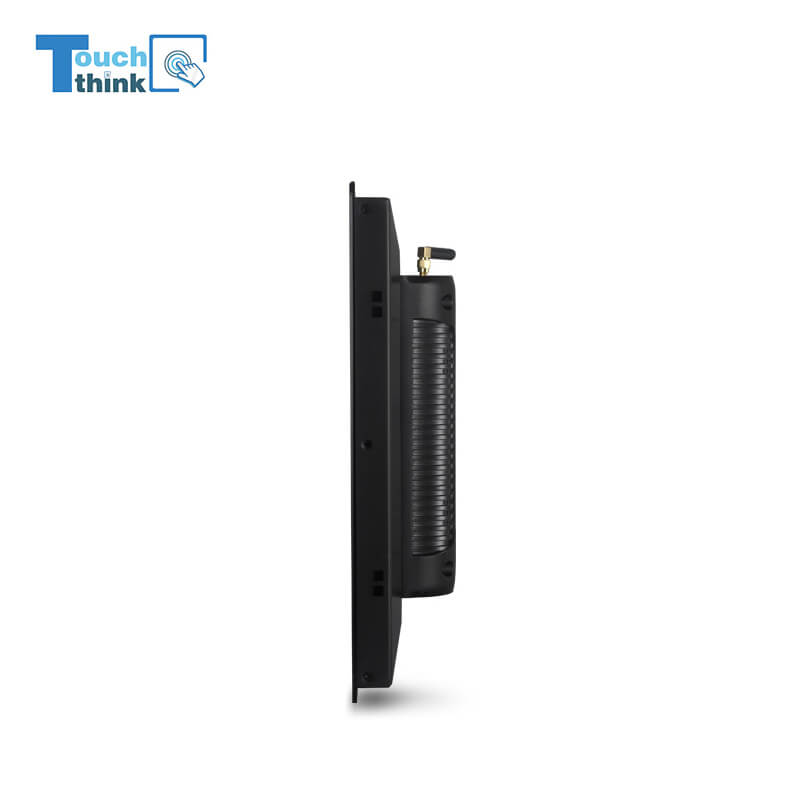

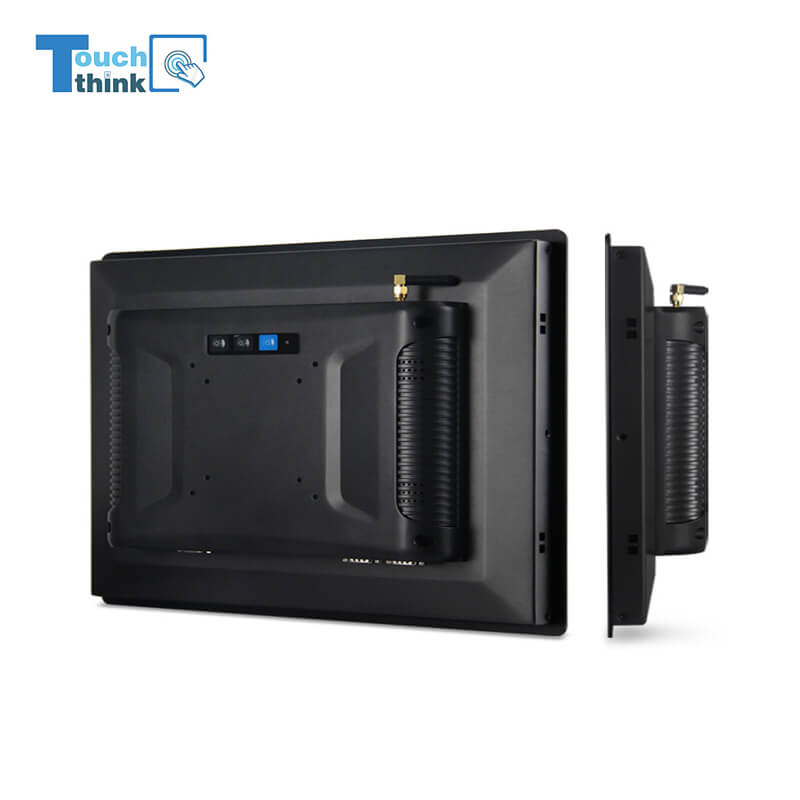

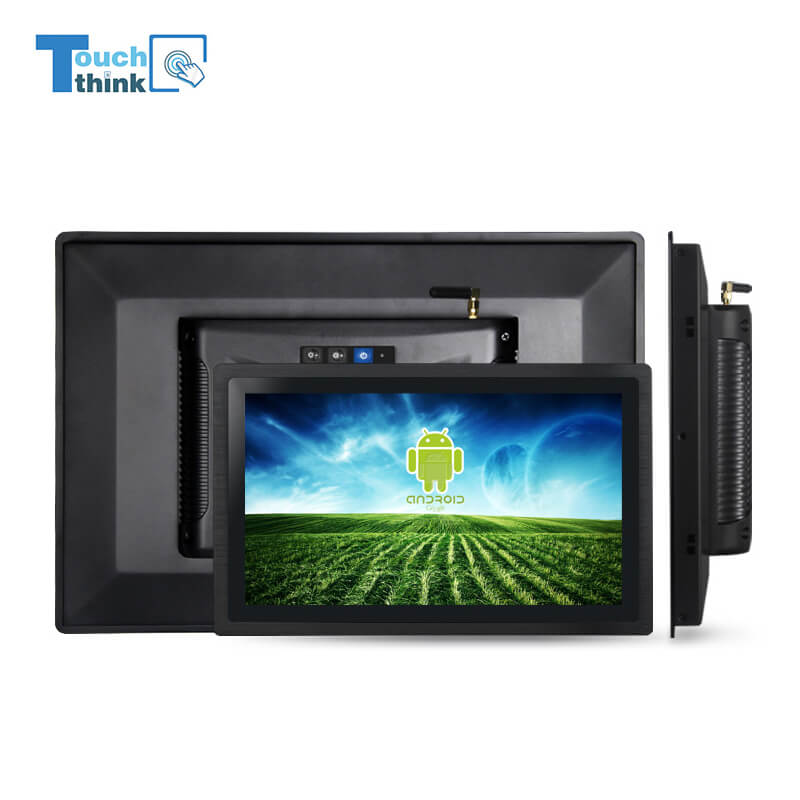

21.5" Industrial Panel PC with Android OS
Model: TPC215-A19
This 21.5" industrial panel PC support multiple installation including embedded, panel mount, wall-mounted, desktop, and VESA mount. It is designed for harsh environments. Presents 1920*1080 HD resolution with delicate graphic performance.
Product Features
● 21.5” 1920 x 1080 with multi-point P-CAP touchscreen.
● Equipped with RK3288/RK3399/RK3568/RK3588 CPU options
● Memory: 4/8/16/32GB options
● Storage: 16/32/64/128/256GB options
● Robust Aluminum alloy housing, and fanless design for low power consumption.
● Front IP65 for protection against dust & water.
● Abundant I/Os, supports expansion.
● Support multiple functional modules(NFC/RFID, barcode, camera, printing, etc.)
● Perfect for use in harsh environments where equipment has to deal with vibrations, weather conditions, and extreme temperatures.
Display Parameters | Size | 21.5" | |||
| Resolution | 1920x1080 | ||||
| Screen Ratio | 16:9 | ||||
| Brightness | 250~300 nits (Optional high brightness) | ||||
| Contrast Ratio | 1000:1 | ||||
| Viewing Angle | 89/89/89/89 (L/R/U/D) | ||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||
| Motherboard Model Selection | JWS3288-I | CX3399-A | CX3568-A | CX3588-A | |
| System Architecture | CPU | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz |
| Core Architecture | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | Mali-T764 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | |
| Memory (DDR) | 2GB (4GB optional) | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | |
| Storage (eMMC) | 16GB (32/64/128/256GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | |
| SATA | / | / | Support | / | |
| Operating System | Android 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0 | Android 7.1/9.0/11, Linux 4.4 / Ubuntu 18.04 / Debian 10 | Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11 | Android 13.0 | |
| Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet |
| 4G | Optional. Based on the 4G module selection | ||||
| 5G | / | / | / | / | |
| WIFI | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | |
| Bluetooth | BT5.0 | BT5.0 | BT5.2 | BT5.0 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |||
| EDP | 1920*1080 60Hz output | ||||
| MIPI | Support 1920*1080 60Hz output | ||||
| Mipi Camera | 30pin FPC interface, support 1300W Camera | ||||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |||
| HDMI Input | HDMI Input, 24-pin FPC custom interface | HDMI Input, 24-pin FPC custom interface | / | / | |
| Touch Function | Touch Interface | USB | USB/IIC | ||

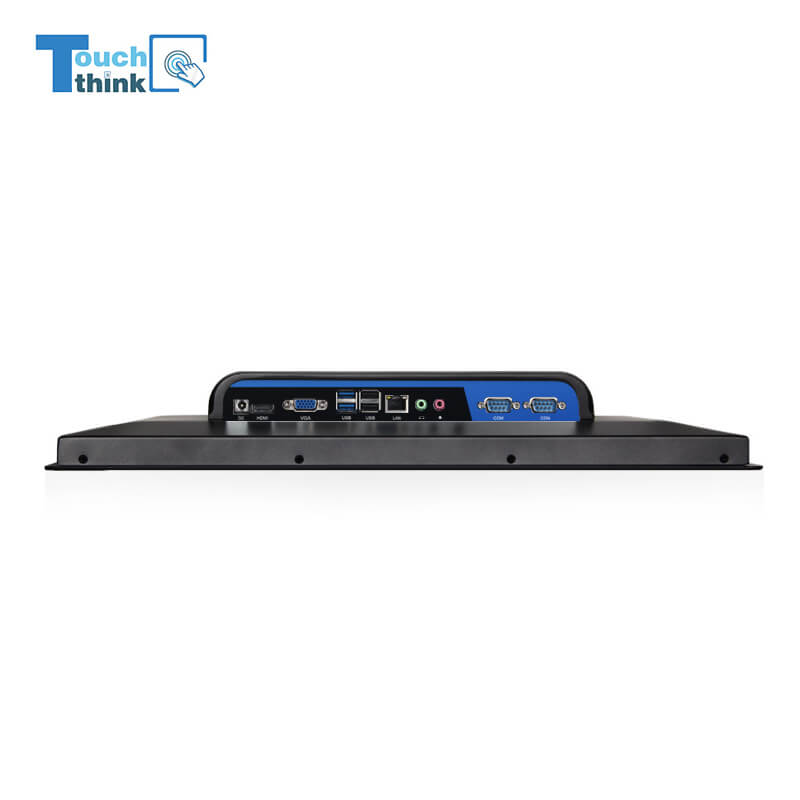

| I/O Ports | MICRO USB | / | / | / | / |
| USB 2.0 | USB2.0*2 (including OTG*1) + USB2.0*6 on board | USB2.0*1 + USB2.0*5 on board | USB2.0*4 on board | USB2.0*1 + USB2.0*4 on board | |
| USB 3.0 | / | USB3.0*1（OTG) | USB3.0*2 (including OTG*1) | USB3.0*1（OTG) | |
| RS232 | 1*RS232, 2*TTL/RS232 optional | RS232*2 | RS232*2 | RS232*2 | |
| RS485 | / (Unless install RS232 to RS485 converter) | RS485*1 | RS485*1 | RS485*1 | |
| TTL | 1*RS232, 2*TTL/RS232 optional | TTL*2 | TTL*2 | TTL*2 | |
| GPIO | GPIO*7 (input/output) | GPIO*8 (input/output) | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | Support | Support | |
| TF Slot | Support | Support | Support | Support | |
| CAN | / | / | Support | Support | |
| Speaker | 3.5mm standard Jack | ||||
| MIC | Support | Support | Support | Support | |
| Audio Port | 3.5mm earphone jack, support input/output | ||||
| I/O Expansion | Available | ||||
| Power | Power Input | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC |
| Adapter | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Dimension | 524.04*315.51*65.5mm | |||
| Enclosure | Aluminum alloy housing | ||||
| Cooling System | Fanless | ||||
| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||
Product Reliability | Working Temp | -20°C ~ 70°C | |||
| Storage Temp | -30°C ~ 80°C | ||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||
| IP rating | Front IP65 | ||||
This industrial panel PC is suitable for universal use, such as vehicles, medical kiosks, industrial automation, IOT, commercial terminals, warehouse management, etc.
If you need advice for your special application, do not hesitate to contact our technical sales or support. We will find the right solution together.
We support kinds of customization services, please feel free to contact us for details.
