All Weather Android Tablet PC for Public Service Terminals 15.6"

Size: 15.6"

Touch Think Android panel PCs are built with rugged electronic components and fanless cooling systems for heating-dissipation to protect internal components from dust and other particles. Ultra-thin front panel is perfect for embeddeding into cabinets. Excellent for public self-service terminal devices.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

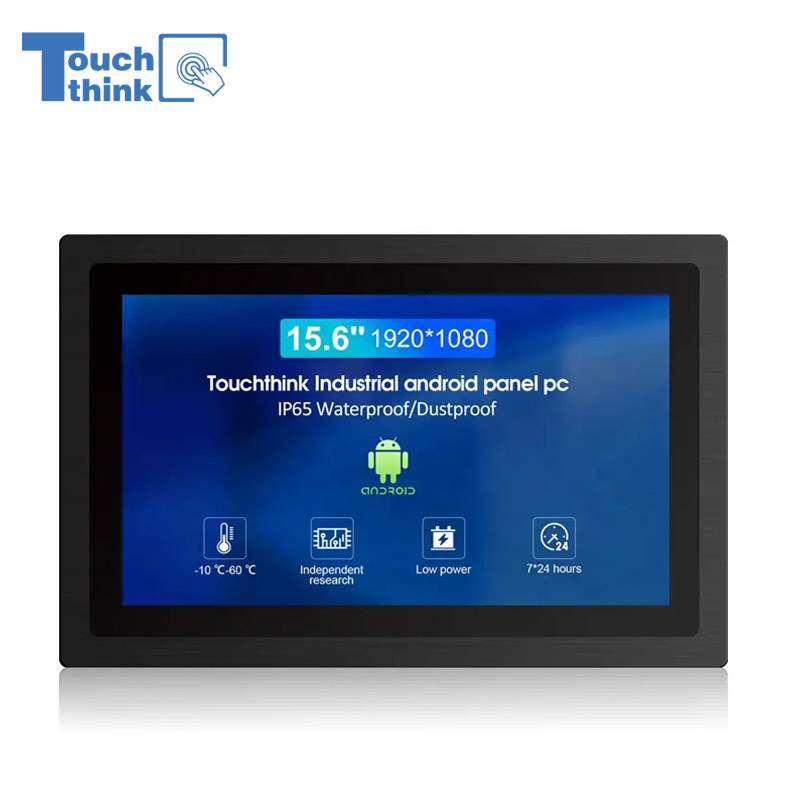

All-Weather Android Tablet PC for Public Service Terminals


Model: TPC156-A19


Touch Think Android panel PCs are built with rugged electronic components. They are a great computing solution when customers' project requires the PC to be embedded into cabinet and equipment. This 4th generation of Touch Think Android operating system industrial-grade panel computers are designed to withstand harsh conditions and to be placed into extreme environments for 7/24 operation. What's more, they have fanless cooling systems for heating-dissipation to protect internal components from dust and other particles. The front panel is designed with IP65-rated dust and is waterproof for long service life.



Touch Think Android All-in-one Panel PC Features


● 15.6" widescreen with 16:9 true flat-panel touch screen panel

● Wide Range Power Input; Wide voltage operation

● IP65 Protected Front Bezel

● Fanless design for heat dissipation to protect internal components from dust

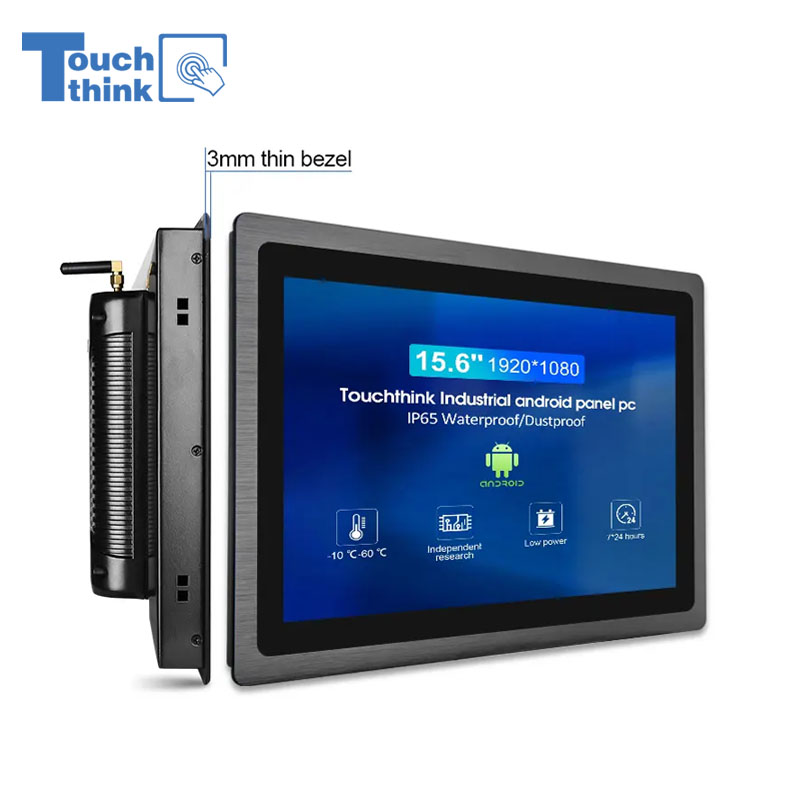

● 10mm seamless enclosure design, perfectly embedded into cabinet

● Support 3G, 4G, Bluetooth, WIFI function module

● Multitude expansion ports according to different application

● Provide SDK mainboard for second development and self-programming for APP

● Support Customization Service for Functional Module




Product Model Quick Guide


ModelLCD DisplayResolutionAspect RatioTouch Screen Type
Get A Quote Now!
TPC101-A1910.1"1280*80016:10Capacitive / Non-TouchInquiry
TPC104-A1910.4"1024*7684:3Capacitive / Non-TouchInquiry
TPC116-A1911.6"1920*108016:9Capacitive / Non-TouchInquiry
TPC120-A1912"1024*7684:3Capacitive / Non-TouchInquiry
TPC121-A19
12.1"1280*80016:10Capacitive / Non-TouchInquiry
TPC133-A1913.3"1920*108016:9Capacitive / Non-TouchInquiry
TPC150-A1915"1024*7684:3Capacitive / Non-TouchInquiry
TPC156-A1915.6"1920*108016:9Capacitive / Non-TouchInquiry
TPC170-A1917"1280*10245:4Capacitive / Non-TouchInquiry
TPC173-A1917.3"1920*108016:9Capacitive / Non-TouchInquiry
TPC185-A1918.5"1920*108016:9Capacitive / Non-TouchInquiry
TPC190-A1919"1280*10245:4Capacitive / Non-TouchInquiry
TPC191-A1919.1"1440*90016:10Capacitive / Non-TouchInquiry
TPC215-A1921.5"1920*108016:9
Capacitive / Non-TouchInquiry
TPC238-A1923.8"1920*108016:9Capacitive / Non-TouchInquiry







Display Parameters
Size15.6"
Resolution1920x1080
Screen Ratio16:9
Brightness300 nits (Optional high brightness)
Contrast Ratio800:1
Viewing Angle89/89/89/89 (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options






Motherboard Model SelectionJWS3288-ICX3399-ACX3568-ACX3588-A
System ArchitectureCPURK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHz
Core ArchitectureCortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
GPUMali-T764Mali-T860 MP4Mali-G52 2EEMali G610 MP4
Memory (DDR)2GB (4GB optional)2/4GB2GB (4/8GB optional)4GB (8/32GB optional)
Storage (eMMC)16GB (32/64/128/256GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)
SATA//Support/
Operating SystemAndroid 7.1 / 10.0 / Linux4.4 / Ubuntu18.04 / Debian10.0

Android 7.1/9.0/11,

Linux 4.4 / Ubuntu 18.04 / Debian 10

Android 12 / Linux5.10 / Ubuntu 20.04 / Debian 11Android 13.0






NetworkingEthernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet

1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet
4GOptional. Based on the 4G module selection
5G////
WIFIDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5G
BluetoothBT5.0BT5.0BT5.2BT5.0






Display FunctionLVDSSupport 1920*1080 60Hz output
EDP1920*1080 60Hz output
MIPISupport 1920*1080 60Hz output
Mipi Camera30pin FPC interface, support 1300W Camera
HDMI OutputHDMI 2.0, support 4K 3840*2160 60Hz outputHDMI 2.1, support 8K 7680*4320 60Hz output
HDMI InputHDMI Input, 24-pin FPC custom interfaceHDMI Input, 24-pin FPC custom interface//
Touch FunctionTouch InterfaceUSBUSB/IIC

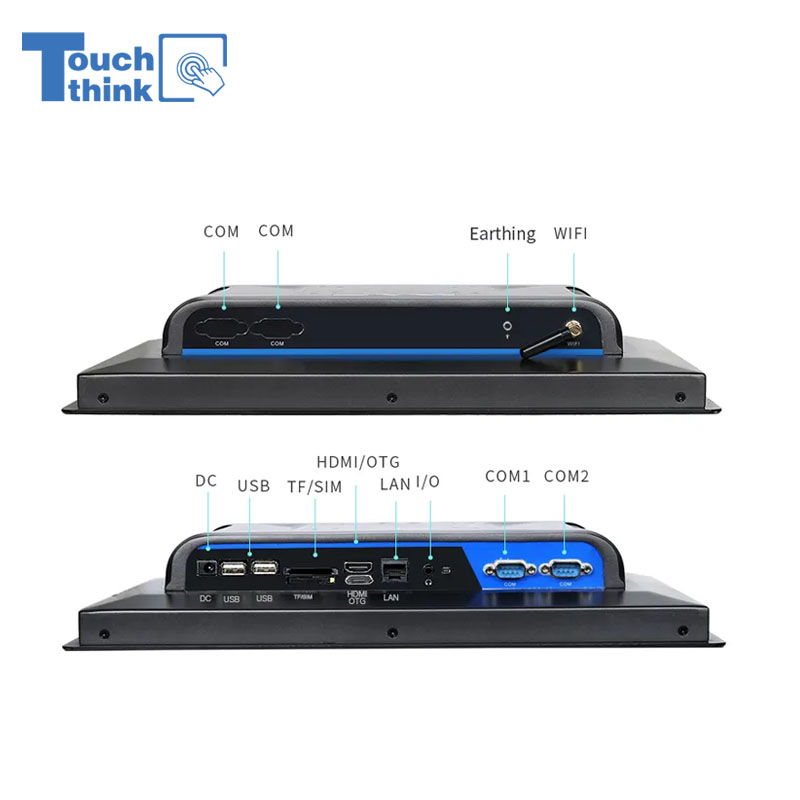

I/O PortsMICRO USB////
USB 2.0USB2.0*2 (including OTG*1) + USB2.0*6 on boardUSB2.0*1 + USB2.0*5 on boardUSB2.0*4 on boardUSB2.0*1 + USB2.0*4 on board
USB 3.0/USB3.0*1(OTG)USB3.0*2 (including OTG*1)
USB3.0*1(OTG)
RS2321*RS232, 2*TTL/RS232 optionalRS232*2RS232*2RS232*2
RS485 / (Unless install RS232 to RS485 converter)RS485*1RS485*1RS485*1
TTL1*RS232, 2*TTL/RS232 optionalTTL*2TTL*2TTL*2
GPIOGPIO*7 (input/output)GPIO*8 (input/output)GPIO*12 (input/output)GPIO*6 (input/output)
SIM SlotSupportSupportSupportSupport
TF SlotSupportSupportSupportSupport
CAN//SupportSupport
Speaker3.5mm standard Jack
MICSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Available






PowerPower Input12V DC12-36V DC12-36V DC12-36V DC
Adapter12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A

MechanicalDimension391.55*240.98*47.9mm
EnclosureAluminum alloy housing
Cooling SystemFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -20°C ~ 70°C
Storage Temp -30°C ~ 80°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65






Industrial all-in-one panel PCs have a wide range of applications, covering various industrial automation, such as environmental monitoring automation, intelligent transportation automation, equipment and machinery manufacturing automation, power automation, telecom monitoring automation, steel industry automation, building automation, factory automation and so on. Specifically, there are the following application areas:


1. In the industrial production sites, it can be embedded in the machine, cabinet or placed on the operating table to display the operation interface.

2. Industrial panel PC in digital hospital is used as bedside service terminal and outpatient service terminal to improve the service and management level of hospital.

3. Used in telecommunications, power, multimedia, national defense, automation equipment, manufacturing and other fields, as man-machine interface, client terminal, control terminal, etc.

4. As media (advertising) broadcasters or information-checking terminals in banks, shopping malls, hotels, railway stations, buses, subway stations, parks and other public places. As digital signage and advertising machines on elevators in residential areas, public places, commercial office buildings and so on.

5. Industrial panel PC can also be used as home service terminal in high-end districts to realize intercommunication, sending message, cost inquiry, commodity ordering, household appliances management, temperature and humidity control, etc.


Touch Think Industrial All-in-One Panel Pc OEM/ODM Items:

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: industrial monitor, resistive touch screen, capacitive touch screen, IR touch screen.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.

Other Customization for Touch Think Industrial AiO Panel PCs

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial monitors can be customized fully-sealed dust-proof and waterproof.
