Industrial All In One Tablet PC Intel Core Processor 12 inch

Size: 12"

This 12-inch industrial panel PC is built with an Aluminum alloy cast, and an Intel Celeron J1900/J4125/J6412 processor for option, designed for extremely harsh dust, vibration, shock, heat, and cold harsh and complex environments.

Product Color

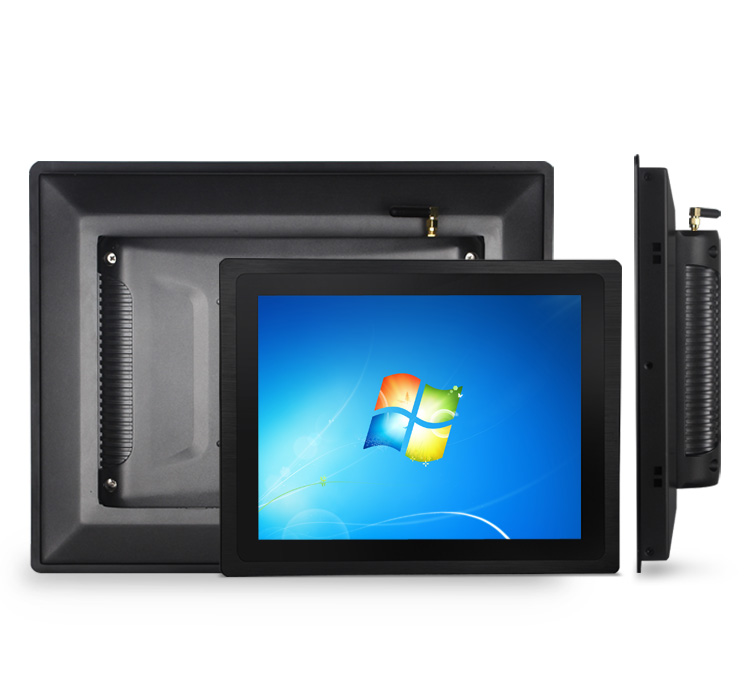

12" Industrial All-in-One Panel PC with Intel Core Processor


Model: TPC120-W2


Touch Think 12-inch all-in-one industrial panel PC is the perfect industrial panel PC for various applications in different sizes of spaces. They can be fixed in the production line device with anti-vibration. They are supported to work well for outdoor devices and terminal types of equipment.



Product Features


● This industrial all-in-one PC adopts an Aluminum alloy enclosure, better heat dissipation than iron materials.

● IP65-rated waterproof and dustproof for the front panel, well-performed in harsh environments.

● Industrial-grade A, A+ LED screen, offering a perfect image for users.

● Wide working temperature: -10°C~60°C.

● Low consumption, a benefit for customers’ cost-efficiency.

● Automatic power-on function.

● Power supply: 12V~36V.

● Support long-time running with no interruption for 7 days * 24 hours.

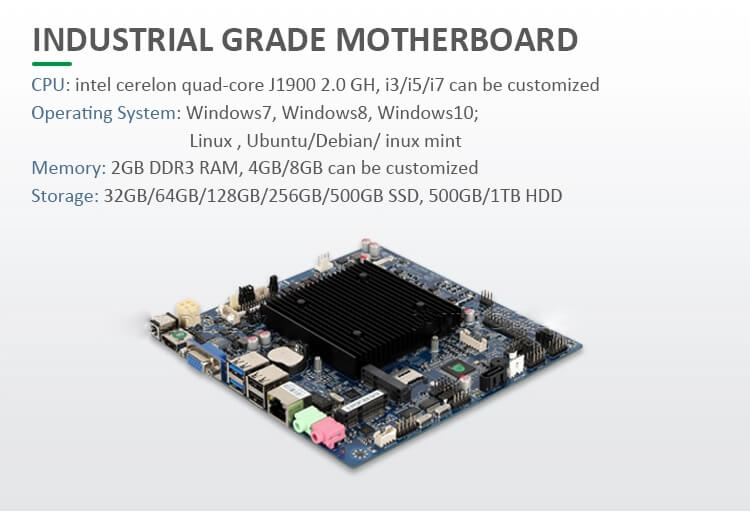

● Industrial-grade mainboards, high performance in harsh industrial environments.

● Intel CPU, Windows 7/10/11, Ubuntu/CentOS options.

● EMI / EMC / Flame-proof / Damp proof / Anti-static / Anti-surge performance in harsh industrial sites.


  • product description
  • Product parameters
  • Application
  • OEM/ODM


Touch Think 12-inch Industrial All-In-One Panel PC


Product Model Information

Capacitive Touch Panel PC: TPC120-W1

Resistive Touch Panel PC: TPC120-W2

Non-Touch (Mouse Control) Panel PC: TPC120-W20


Fanless Panel PC

industrial PC

touch screen all in one pc

touch panel PC

Industrial tablet PC




Related Knowledge Expansion


What are the differences between industrial panel PCs and commercial tablets?


The differences between industrial tablets and commercial tablets are as follows:

1. Different Application Environments

Industrial tablets are literally easy to understand as being used in industrial environments, and the industrial environments normally refer to dusty, humid, and harsh environments, which need very strict requirements for industrial tablets, but commercial tablets are not suitable for running in such harsh environments.


2. Different Performance

In order to adapt to various harsh environments, industrial tablets are mostly in compliance with IP** waterproof and dust-proof level, Touch Think series industrial panel PC is IP65 rated and has the stability of long-time use without stopping, that is to say, it can be treated roughly during operation compared with common commercial computers.


3. Appearance

With the development of society, the requirements for the appearance of industrial tablet computers have become higher and higher like commercial tablets. The use of the modular design of industrial tablet computers will become mainstream, lighter, thinner, and more compact compared with today's rigid heavy industrial products.


4. Expansion for I/O Ports

The industrial tablet computer is often the core of a complex application program, which needs to be connected with many other devices and run in harmony. Therefore, the industrial tablet PC needs plenty of I/O ports, and the industrial tablet computer with a modular design can support I/O interface expansion, which greatly improves its adaptability. While commercial tablet computer only has simple functions, they don't have such a kind of expansion function.






Display ParametersSize12"
Resolution1024*768
Screen Ratio4:3
Brightness500 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle85°/85°/85°/85° (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options






Motherboard Model SelectionCL-J1900B
CX-J4125-ACX-J6412

CX-12U01

CX-12U01CX-12U01
i3-1215Ui5-1235Ui7-1255U
System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB SSD (optional: 256GB/512GB SSD, 1T/2T HDD)
SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
MSATA1*MSATA1*MSATA1*MSATA/
M.2//1*M.21*M.2
Operating SystemWin 7/10Win 10/11

Win 10/11

Win 10/11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6

Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6

/






NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
4GSupport
5G

/

//M.2 5G
WIFIDual-band 2.4/5GHz
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)






Display FunctionLVDSSupport 1920*1080 60Hz output
EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
VGASupport 1920*1080 60Hz output
HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
Touch FunctionTouch InterfaceUSBUSBUSBUSB
I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0/USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
TTL////
GPIOGPIO*8 (input/output)
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
MICSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Support






PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension319*257*56.5mm
EnclosureAluminum alloy housing
Cooling SystemFanlessFanlessFanlessFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -10°C ~ 60°C
Storage Temp -20°C ~ 70°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65



















Industrial touch screen PC is widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC, and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations, and parks as media (advertising) players or information-checking terminals.


The industrial panel PC is suitable for desktop, wall-mounted, or embedded in another machine, cabinet, or install on the operating table, man-machine display operation interface. They are also served as a bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, they are used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


Industrial Panel PC



Screen Customization for Touch Screen PC


1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: resistive touch screen, capacitive touch screen, IR touch screen, or mouse control.

5. High-resolution screen: customize higher resolution than a standard LCD screen.

6. Screen size: support to the customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customizations for Touch Think Industrial All-in-one Panel PCs


1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize the wider working temp: -30~+80°C.

3. LOGO customization.

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial PCs can be customized fully-sealed dust-proof and waterproof.
