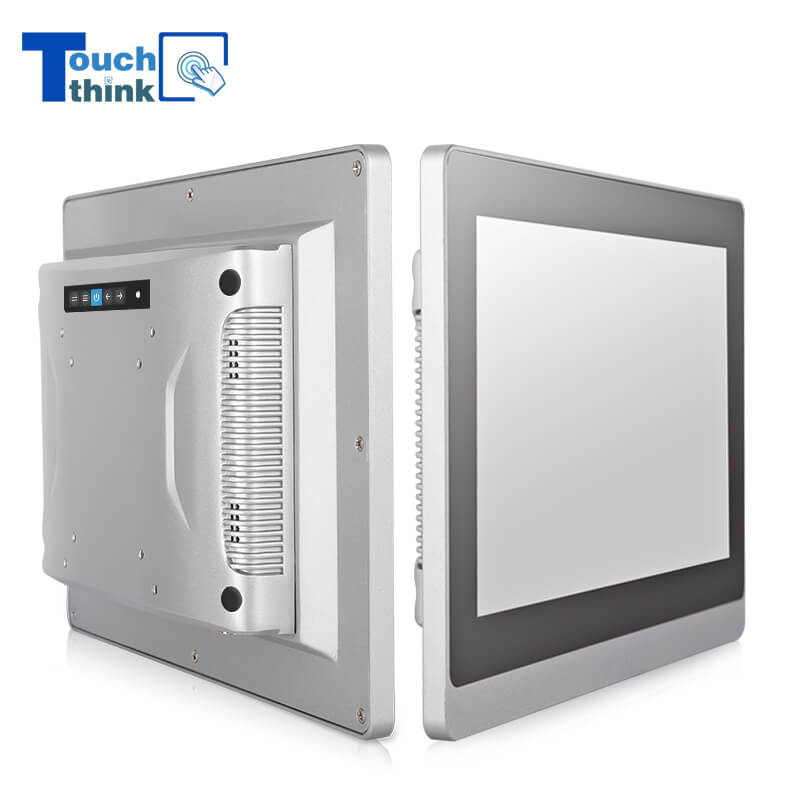

Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch

Size: 15

Touch Think 15" industrial LCD TFT touch screen displays are produced for professional industrial applications, indoor and outdoor applications with perfect performance under bright sunlight or harsh environments.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

15 inch Industrial HMI Screen Touch Panel Monitor IP65 Dustproof & Waterproof


Touch Think industrial LCD display monitors series with HMI interface features the latest TFT-LCD flat panel. Support multi-point capacitive, five-wire resistive touch screen and mouse-control type.


Touch Think Industrial Monitors Advantages


• Aluminum alloy enclosure, suitable for light or heavy industrial applications and rugged conditions.

 Full flat panel technology, compact design, suitable for limited-space devices.

 Fanless cooling systems, offer good heating-dissipation performance. Reduces power consumption.

 Displays functions: On-Screen-Display (OSD) for contrast ratio, brightness adjustment, and other adjustments.

 A variety of touching types to meet different applications, 10-point capacitive, single-point resistive, and mouse control for optional.

 Viewing cone up to 170°, 1024×768 resolution, 350 nits standard brightness to fit your viewing needs.

 Support plug-and-play, easy-to-use for customers.

 Standard VESA mount threaded hole pattern for universal mounting.

 Perfect performance at extreme temperature for 24/7 hours.

 Industrial A /A+ level perfect LED backlight with high definition screen, support indoor & outdoor devices.

 Adopt REALTEK brand industrial-grade display chipset with wide voltage 12-24V input;

• Compliance with the standard of flame-proof, explosion-proof, and moisture-proof.

 Board filter solid-state capacitor voltage value36V/105 degree; Port contact is 6KV, air contact is 16KV EMI, anti-magnetic design.


Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch Embedded


Touch Think Industrial Monitor Installation Diagram

Take wall-mounted and desktop mount as an example:


Industrial HMI Screen Touch Panel Monitor IP65 Waterproof 15 inch Embedded





















Screen parametersScreen size15 inch
ModelTPC150-M4
Resolution1024*768
Proportion4:3 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast800:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 300cd/m2 (customizable high brightness)
Touch-typeResistive / capacitive / mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (can be customized ≥16KV)
Power≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, cantilever
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
O/I interface parametersSignal Interface DVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think provides a wide range of reliable touch screen monitors from 7" to 22" display size, they're produced with high-scalability and high-reliability, including IP65-rated dustproof & waterproof, industrial-grade motherboards, rugged appearance, etc. Providing trustworthy industrial-grade touch control & display solution for the following applications:


Industrial fields:

Laser equipment

CNC machines

Equipment manufacturing


Commercial fields:

Digital signage

Self-service kiosks


Medical:

Bedside service terminals

Nurs station

Medical carts

Medical equipment

Lab equipment


Intelligent manufacturing:

Smart production line

Intelligent workbench


We provide a variety of OEM/ODM customization services for global customers, please feel free to contact us for details.
