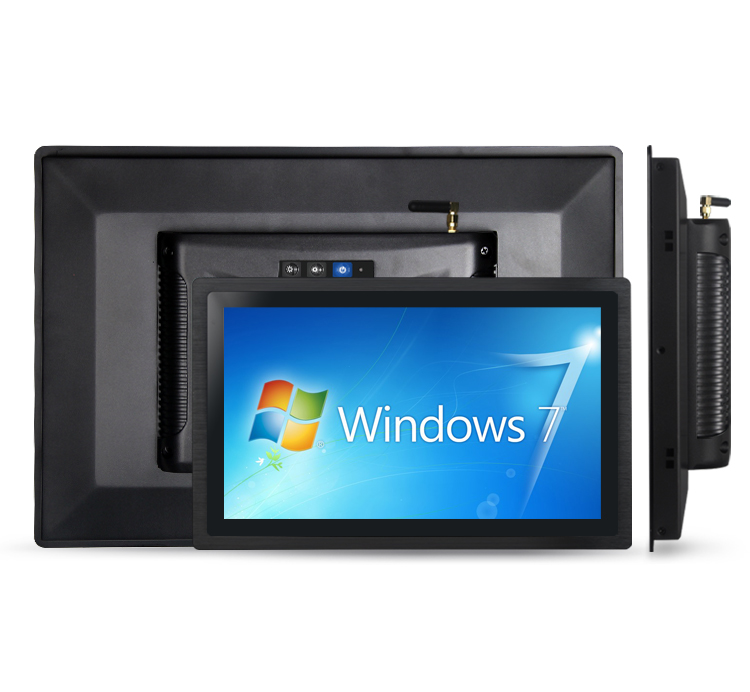

Intel Core Industrial Automation PC All In One Panel PC 19 inch

Size: 19"

This 19-inch industrial touchscreen panel PC is suitable for industrial automation, digital production lines, factory workshops, and other smart factory projects.

Product Color

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Intel Core Industrial Automation PC All In One Panel PC 19"


Model: TPC190-W4


Touch Think 19-inch industrial panel PCs support Windows 7 / 8 / 10 system, with a professional R&D department of hardware and software to support our product service. Our industrial touch PCs adopt the most trustworthy suppliers.



Touch Think Industrial Panel PC Features


● This industrial all-in-one-panel PC is designed with a full-flat front panel, suitable for embedded installation.

● 10mm front bezel with strong impact resistance under harsh environments.

● The seamless pure front plate, effectively withstanding the infiltration of dust and water vapor.

● This Aluminum alloy all-in-one PC with good heating-dissipation improves protection performance.

● Offers IP65 dustproof, waterproof, and shock-proof, high and low-temperature resistance for the whole PC.

● Working temperature ranges from -10°C  to +60°C, support customized wide temperature up -30~80°C.

● The back cover of the all-in-one panel PC was designed with a circular arc structure, high heat-dissipation during working.

● Meeting the demands from EMI/EMC standard performs perfectly under harsh conditions.

● Reserved dust-proof and waterproof speaker hole: the speaker adopts the technology of industrial sound transmission material, it also supports dust-proof and waterproof.

● External button adjustment function: built-in button for adjusting the touch screen brightness, which reduced complex and tedious operation.

● We choose the most trustworthy forwarders to ship the industrial panel PCs to customers.

● Touch Think offers customization services for multiple functional modules.




Intel Core Industrial Automation PC All In One Panel PC 19"



Intel Core Industrial Automation PC All In One Panel PC 19"

Intel Core Industrial Automation PC All In One Panel PC 19"





Display ParametersSize19"
Resolution1280*1024
Screen Ratio5:4
Brightness250~300 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle85°/85°/80°/80° (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options






Motherboard Model SelectionCL-J1900B
CX-J4125-ACX-J6412

CX-12U01

CX-12U01CX-12U01
i3-1215Ui5-1235Ui7-1255U
System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
MSATA1*MSATA1*MSATA1*MSATA/
M.2//1*M.21*M.2
Operating SystemWin 7/10Win 10/11

Win 10/11

Win 10/11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6

Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6

/






NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
4GSupport
5G

/

//M.2 5G
WIFIDual-band 2.4/5GHz
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)






Display FunctionLVDSSupport 1920*1080 60Hz output
EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
VGASupport 1920*1080 60Hz output
HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
Touch FunctionTouch InterfaceUSBUSBUSBUSB
I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0/USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
TTL////
GPIOGPIO*8 (input/output)
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
MICSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Support






PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension423.3*372.9*59.9mm
EnclosureAluminum alloy housing
Cooling SystemFanlessFanlessFanlessFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -10°C ~ 60°C
Storage Temp -20°C ~ 70°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65


































Touch Think industrial computers are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.

These industrial computers are suitable for desktop, wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.

In addition to the above areas, they are used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.




Screen Customization for Touch Think Industrial All-in-one Panel PCs

1. High-light screen: default 400cd/m2, support customization to 1500cd/m2.

2. Photosensitive head: customize the screen brightness automatically based on ambient light.

3. All perspective: standard 160°, 178° WVA customized.

4. Touch screen: resistive touch screen, capacitive touch screen, IR touch screen or mouse control.

5. High resolution screen: customize higher resolution than standard LCD screen.

6. Screen size: support to customized screen.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.

Other Customization for Touch Think Industrial All-in-one Panel PCs

1. Appearance customization: support appearance design, sample customization.

2. Working temperature: standard temp is -20~+70°C, we can customize wider working temp: -30~+80°C.

3. LOGO customization.

4. System software customization: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: for special occasions.

8. IP grade: The industrial PCs can be customized fully-sealed dust-proof and waterproof.
