This 19" industrial computer equipped with industrial motherboards, excellent for embedded computing solutions for digital signage, retail, healthcare, hospitality, medical equipment, and industrial automation.
Appearance of the color
8”
10.1”
10.4”
11.6”
12”
15”
15.6”
17”
17.3”
19”
19.1”
21.5”

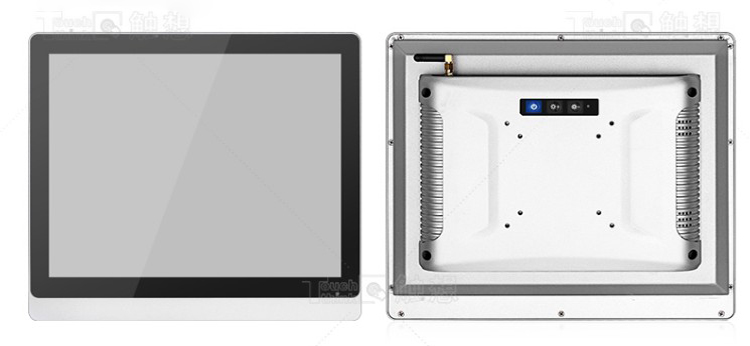

Industrial Fanless Embedded Computer J1900 Industrial Panel PC 19"
This 19 inch wide screen industrial all-in-one panel PC has an IP65 rating dust-proof and water proof for
front bezel, high brightness support sunlight readable. Industrial grade motherboard making it suitable for
harsh industrial environments and outdoor devices. Besides, the fanless design making it runs mute, and
it is perfect for heat-dissipation. This panel PC has a powerful Intel Core i3/i5/i7 CPU and is built with high
quality components to ensure the highest reliability for 7/24 use of industrial and commercial applications.
This industrial panel PC is designed with compact structure, saves much space and perfect for embedding
in cabinets, also enables you to fully maximize business output by making your processes more efficient.
Touch Think Industrial Panel PC Features
● This industrial all in one panel PC designed with full-flat front panel, suitable for embedded installation.
● 10mm front bezel with strong impact resistant under harsh environments.
● Seamless pure front plate, effectively withstanding the infiltration of dust and water vapor.
● Aluminum alloy all in one pc with good heating-dissipation, improves protection performance. dust-proof,
shock-proof, high and low temperature resistance for the whole pc, working temperature range up to
-10 ~60°C, support customized wide temperature -20~70°C.
● The back cover of all-in-one panel PC designed with a circular arc structure, high heating-dissipation
● Meeting the demands from EMI/EMC standard, performs perfect under harsh condition.
● Reserved dust-proof and waterproof speaker hole: the speaker adopts to industrial grade sound
transmission material, it also support dust-proof and water proof.
● OSD: external button adjustment function: built-in button for adjust the touch screen brightness, which
reduced complex and tedious operation.
● 75 x 75mm VESA Mount.
● Three (3) years warranty.
Functional Modules Customization
| Screen parameters | Screen size | 19 inch |
| Model | TouchTEC-190A | |
| Resolution | 1280*1024 | |
| Proportion | 4:3 square size screen | |
| Motherboard parameters | CPU | intel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7) |
| Hard Disk | 32G SSD (Optional 64G SSD/500G HDD) | |
| Memory | 2G DDR3 (supports 8G DDR3) | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | pre-installed windows7, support other version | |
| Speakers | available | |
| Interface parameters | USB interface | 8"-10.4":USB2.0*2, Other sizes: USB2.0*3+USB3.0*1 |
| Serial Interface | 8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol | |
| WIFI connector | WIFI antenna*1 | |
| Power Interface | DC 12V*1 | |
| High-definition interface | HDMI*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O | |
| Support extensions | Multiple industry interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 1000:1 | |
| Display brightness | 400cd/m2 (customizable high brightness above 400cd/m2) | |
| View angle | (H160 (V) 160, customizable wide viewing angle 178° | |
| Backlight type | LED backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Resistive/Capacitive/Infrared Touch Screen | |
| Installation method | Embedded, desktop, wall-mounted, cantilever | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Full body made of aluminum alloy material | |
| Color | Silver Black | |
| Warranty Policy | One year free warranty | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Tablet PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |
Touch Think industrial panel PCs are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.
These industrial panel PCs are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.
In addition to the above areas, they are also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.
19-inch industrial touch screen AIO Panel PC
