Size: 21.5"
This 21.5" industrial touch panel PC adopts to a fanless cooling system for heating dissipation, and energy efficient CPU for optimal performance. They are widely used in Industrial Internet of Things (IIoT), Machine-to-Machine (M2M), intelligent building automation, HVAC control, access control, check-in system, interactive security systems.
Product Color
Industrial Panel Mount PC Touch Screen HMI Computer 21.5"
Model: TPC215-W42
The 21.5" interactive widescreen industrial panel PC is equipped with J1900 and quad-core 2GHz for CPU high computing functionality. Its single-point, 4/5-wire resistive touch screen provides an intuitive user experience for operators in harsh environments. And the aluminum alloy housing and fanless design make this industrial panel PC ideal for maintaining a mute working environment. The flat touch screen all in one PC provides various installation methods such as panel mount, VESA, wall mount, tabletop, embedded, and so on. This panel PC is perfect for industrial automation, check-in system, company & community security, and kinds of outdoor terminal devices.
Touch Think 21.5-inch Industrial Panel PC Features
● 21.5” single-point resistive touch screen.
● A fanless heat-dissipation system with ultra-low power consumption.
● Expansion for digital I/O (Phoenix Type).
● Front bezel with IP65 Dust and Waterproof.
● TFT LCD screen with 16:9 aspect ratio and LED backlight.
● Aluminum alloy housing.
● Supports panel mount, wall mount, VESA arm, and desktop stand.

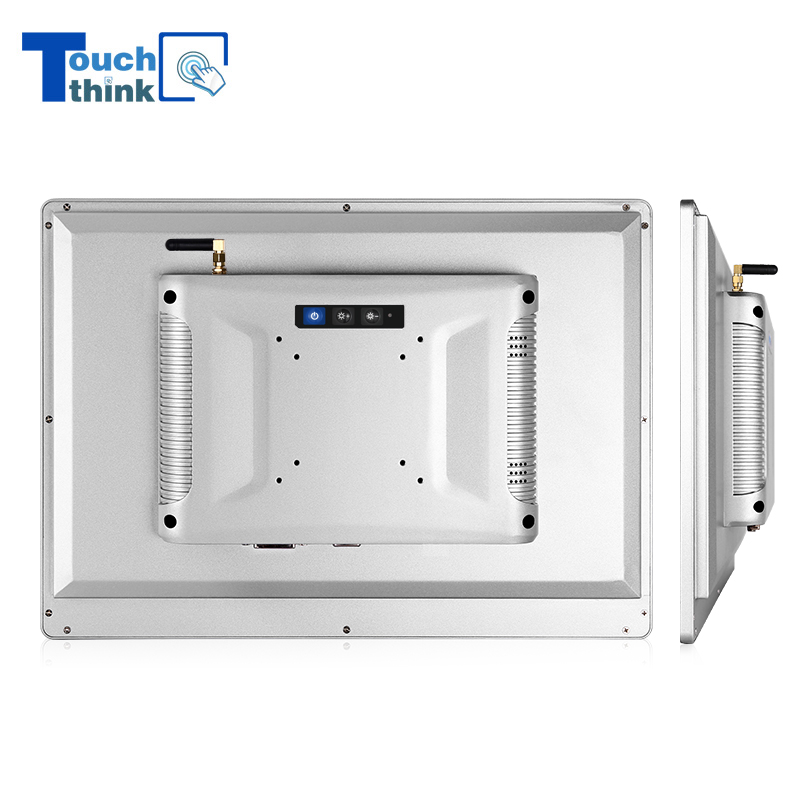

● Offer programmable OSD function key on the back panel.
● Industrial-grade motherboard, 7/24 long-term operation under all weather conditions.
● Special design for DC power port with anti-shedding, prolong its service life.
● Triple protection: moisture-proof, explosion-proof, and flameproof.
● Supports customized functional modules.
| Screen parameters | Screen size | 21.5 inch |
| Model | TPC215-W42 | |
| Resolution | 1920*1080 | |
| Proportion | 16:9 widescreen | |
| Motherboard parameters | CPU | Intel Celeron J1900 2GHz quad-core (optional Intel Celeron 1037 1.8GHz dual core, optional Intel H81 equipped with Core i3/i5/i7) |
| Hard Disk | 32G SSD (Optional 64G SSD/500G HDD) | |
| Memory | 2G DDR3 (supports 8G DDR3) | |
| Audio | Integrated Audio Chip | |
| Network | Integrated Gigabit LAN | |
| Wireless network | Built-in wifi antenna, support wireless connection | |
| Graphics Cards | Integrated Graphics | |
| System | Pre-installed windows7, support other versions | |
| Speakers | Available | |
| Interface parameters | USB interface | 8"-10.4": USB2.0*2, Other sizes: USB2.0*3+USB3.0*1 |
| Serial Interface | 8"-10.4": COM*1, Other Sizes: COM*2, Default RS232 Protocol, Can Change 422/485 Protocol | |
| WIFI connector | WIFI antenna*1 | |
| Power Interface | DC 12V*1 | |
| High-definition interface | HDMI*1 | |
| Extended display | VGA*1, support for synchronous dual display and differential display | |
| Network interface | RJ-45*1 | |
| Audio Interface | Audio I/O | |
| Support extensions | Multiple industry interface support customization | |
| Display parameters | Color | 16.7M |
| Point distance | 0.264mm | |
| Screen Panel | Industrial control panel | |
| Contrast | 1000:1 | |
| Display brightness | 400cd/m2 (customizable high brightness above 400cd/m2) | |
| View angle | (H160 (V) 160, customizable wide viewing angle 178° | |
| Backlight type | LED backlit screen Lifetime ≥ 50000h | |
| Gray-scale response time | 5ms | |
| Touch Optional | Resistive / Capacitive / Non-touch | |
| Installation method | Embedded, desktop, wall-mounted, VESA, panel mount, open frame. | |
| Other parameters | Power | 12V-5A Professional External Power Adapter |
| Power consumption | ≤60W | |
| Working temperature | -10°C～60°C | |
| Storage temperature | -20°C～60°C | |
| Relative humidity | 0%-65% (without condensation) | |
| Material | Full body made of aluminum alloy material | |
| Color | Silver / Black | |
| Warranty Policy | One year free warranty | |
| Degree of protection | Front panel IP65 dustproof and waterproof | |
| Packing list | Industrial Panel PC / Mounting Accessories / Power Cord / Power Adapter / Driver CD / Manual / Warranty Card |
Touch Think industrial Panel PCs are designed with high scalability, easy installation. They are very suitable for use in fields of industrial automation, medical, retail, transport, marine, and education. Offering a touch interface to deliver important data visualization or image information display.
Our industrial fanless panel PCs are available ranging from 7” to 23.8”. Many of their features are depending on the application's environment, such as the IP rating, touch screen technology, screen types, screen brightness, I/O interfaces, etc. Usually, the resistive touch panel PCs are suitable for harsh and complex industrial environments, such as machinery building, industrial sites, CNC manufacturing; And capacitive touch panel PCs are widely used in commercial applications, such as kiosks, HMI terminal devices.
