Size: 10.4"
This industrial panel mount computer delivers the flexibility of Android 13, the durability of a sealed industrial chassis, and the intuitive multi-touch experience needed for next-generation automation. It’s the perfect choice for organizations seeking reliable edge devices that integrate easily into existing infrastructure.
Product Color
Model: TPC104-A28
The 10.4 inch Industrial Panel Mount Panel PC combines modern Android 13 performance with a rugged, factory-ready design. Built for industrial automation, kiosks, and edge computing, this compact all-in-one computer offers multi-touch capability, wide connectivity, and reliable 24/7 operation.
Android 13 for Industrial Applications
Preloaded with Android 13, this panel PC delivers a familiar interface and robust security updates while supporting industrial control apps, IoT platforms, and custom HMI software. Developers can leverage the latest Android APIs for faster deployments and future-proof solutions.

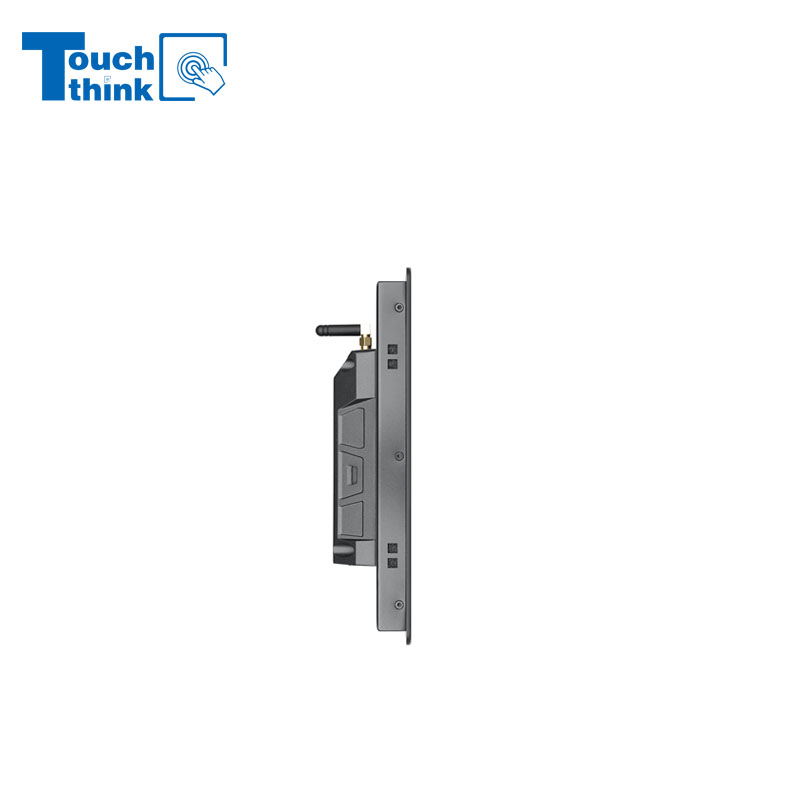

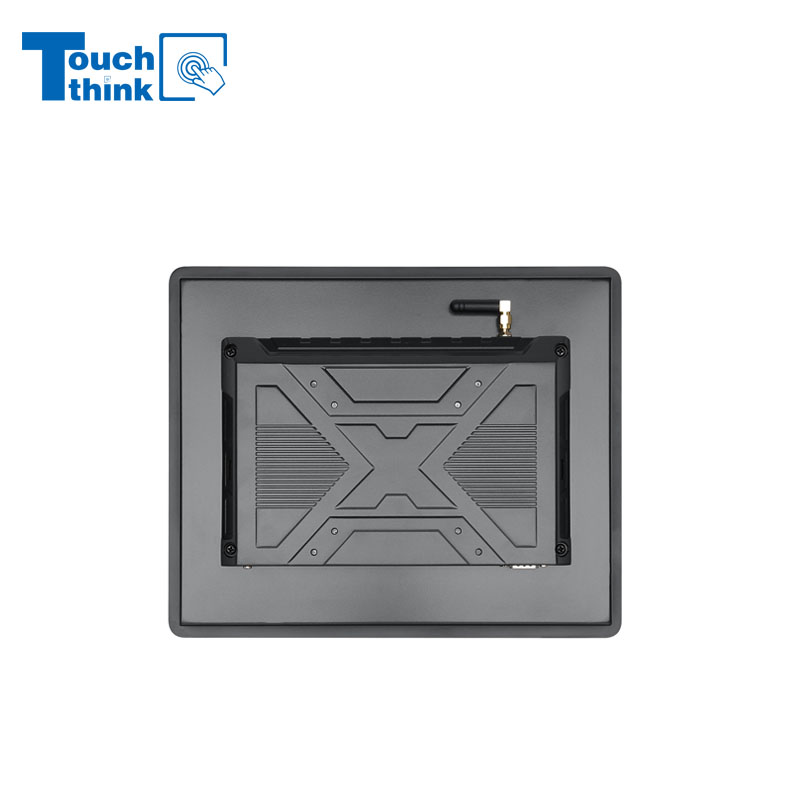

Durable Panel-Mount Design
Engineered for flush mounting in cabinets, walls, or control panels, the 10.4 inch unit fits seamlessly into factory floors, retail kiosks, and transportation hubs. Its fanless architecture minimizes maintenance, while the industrial-grade housing withstands vibration, dust, and temperature fluctuations.
Responsive Multi-Touch Display
The 10.4 inch multi-touch capacitive screen ensures precise gesture control, even with gloved hands. High brightness and wide viewing angles keep critical data visible in bright or dim environments, enhancing operator efficiency.

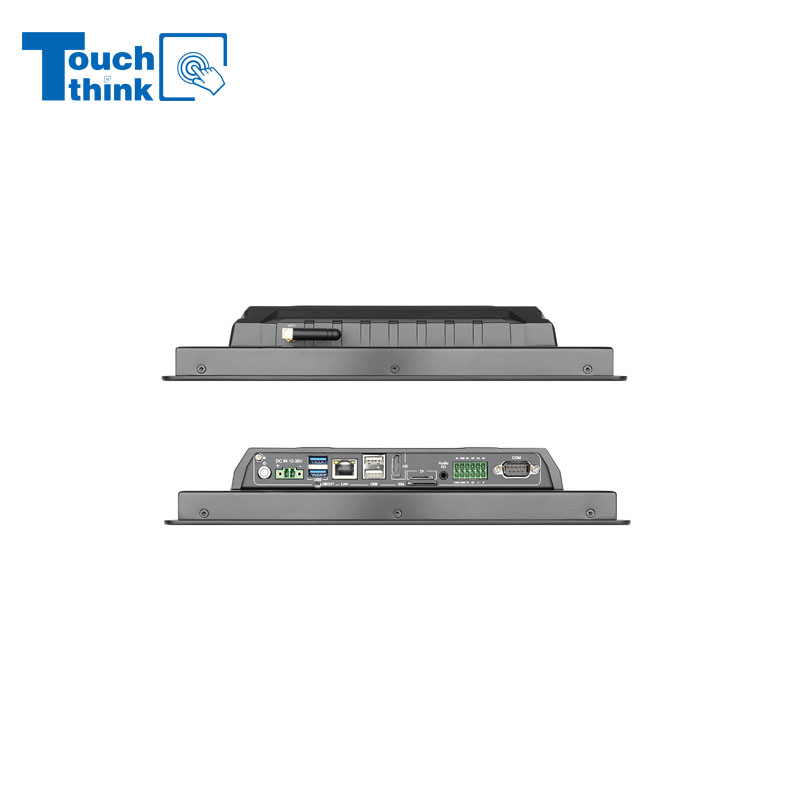

Rich I/O and Connectivity
Equipped with USB, RS-232/422/485, and dual Gigabit Ethernet, this panel PC integrates easily with PLCs, sensors, barcode scanners, and IoT gateways. Optional Wi-Fi, Bluetooth, or 4G modules enable remote monitoring and cloud connectivity for smart-factory applications.
| Display Parameters | Model | TPC104-A28 | |
| Size | 10.4" | ||
| Resolution | 1024*768 | ||
| Aspect Ratio | 4:3 | ||
| Contrast | 1000:1 | ||
| Display Color | 16.7M | ||
| Brightness | 400cd/㎡ (Optional high brightness) | ||
| Visual Angle | 89°/89°/89°/89° (L/R/U/D) | ||
| Backlight Type | LED backlight screen, service life ≥ 50000H | ||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||
| Motherboard Model Selection | CX3568-Z | CX3588-Z | |
| System Architecture | CPU | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.4GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | ARM Mali-G52 MP2 | ARM Mali G610 MP4 | |
| Memory (DDR) | 2GB (4/8GB optional) | 8GB (16GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 64GB (256GB optional) | |
| SATA | / | / | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options) |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.3 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |
| EDP | Support 1920*1080 60Hz output | ||
| MIPI | Support 1920*1080 60Hz output | ||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | ||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |
| HDMI Input | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC |
| I/O Ports | MICRO USB | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | |
| USB 3.0 | USB3.0*2 (including OTG*1) | USB3.0*2（including OTG*1) | |
| RS232 | RS232*3 | RS232*3 | |
| RS485 | RS485*3 | RS485*3 | |
| TTL | TTL*2 | TTL*2 | |
| GPIO | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | |
| TF Slot | Support | Support | |
| CAN | CAN*1 | CAN*1 | |
| Speaker | 3.5mm standard Jack | 3.5mm standard Jack | |
| MIC | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | |
| Power | Power Input | DC 12~36V | DC 12~36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | ||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | |
1. Factory & Process Automation – Real-time machine control and HMI visualization.
2. Retail & Kiosk Systems – Interactive displays with secure Android management.
3. Transportation & Fleet Management – Reliable onboard computing with multi-network support.
4. Building & Energy Management – Centralized dashboards for HVAC and smart-grid operations.
