Sunlight Readable Industrial Displays 17 Inch

Size: 17

Touch Think offer resistive and capacitive touch screen monitors. 7 inch to 21.5 inch display size are available for industrial applications and commercial display touch terminal devices. OEM/ODM service and three-year warranty for global customers.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM

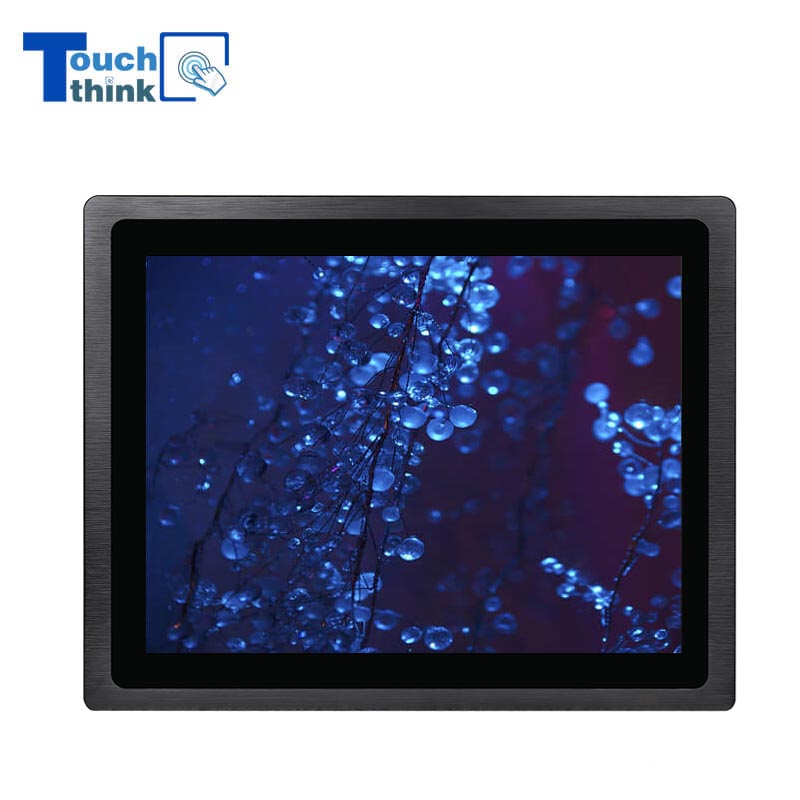

Sunlight Readable Industrial Displays 17 Inch

The Touch Think 17-inch new 4th generaton of industrial touch screen monitor delivers high quality picture

for users no matter for indoor or outdoor devices. The monitors are designed for multi applications, and

withstands wide operating temperature range in harsh environments.

Touch Think 17-inch Industrial Monitor Display

Sunlight Readable Industrial Displays 17 Inch

Industrial Monitors Features

● Touch Think 4th generation industrial monitors offer multiple interfaces for customers to meet various

    needs, support I/O interfaces expansion.

● Aluminum alloy wiring drawing process technology, presenting professional quality, polishing for layer

   up layer, showing natural texture and luster metal.

● 10mm thickness of front panel with impact resistance, good mechanical properties, modular forming

   of aluminum alloy, one-piece die casting whole monitor body, showing a delicate appearance.

● Widely used in industrial automation, kiosk, factory production line, self-service vending machines, me-

   dical self-service devices, public self-help service devices, etc.

● IP65 rated dust-proof and waterproof for the front panel.


Industrial LCD Monitor Details

Sunlight Readable Industrial Displays 17 Inch

Sunlight Readable Industrial Displays 17 Inch

Sunlight Readable Industrial Displays 17 Inch

Sunlight Readable Industrial Displays 17 Inch

Sunlight Readable Industrial Displays 17 Inch





Screen parametersScreen size17 inch
ModelTPC170-M4
Resolution1280*1024
Proportion5:4 square screen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight typeLED, use length≥50000h
Display color

16.7M

Visual angle160/160 (Customizable 178° full view angle)
Brightness 400cd/m2 (high brightness customizable)
Touch typeResistive / capacitive / Mouse control
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticcontact 4KV-air 8KV (can be customized ≥16KV)
Power ≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofIP65 dust-proof and waterproof front panel
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, VESA, cantilever, open frame
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output


Touch Think industrial LCD monitors are widely used in multimedia, mobile telecommunications, power national defense, automation equipment, manufacturing industry, operation man-machine interface, industrial client, PLC and POS communication and control terminals. They also are used in public places such as banks, shopping malls, hotels, railway stations, buses, subway stations and parks as media (advertising) players or information-checking terminals.


These industrial displays are suitable for wall-mounted, or embedded in other machine, cabinet or install on the operating table, man-machine display operation interface. They are also served as bedside service terminal and outpatient terminal in digital hospitals, which improve the hospital services and management level.


In addition to the above areas, industrial LCD monitor also be used as home service terminals in high-end districts to achieve intercommunication, message, cost query, commodity ordering, household appliances management, temperature and humidity control, etc.


Touch Think industrial monitors support OEM/ODM customization service enven for one piece.


Screen Customization

1. High-light screen: default with 400cd/m2, support customization up to 1500cd/m2.

2. Photosensitive head: support screen brightness automatically adjustment based on ambient light.

3. Screen viewing angle: default with 160°, but all perspective 178° WVA can be customized.

4. Touch screen: support resistive touch screen, capacitive touch screen, IR touch screen and non-touch screen.

5. High resolution screen: higher resolution than standard LCD screen can be customized.

6. Screen size: standard display size range is 7 inch to 21.5 inch, other size is available.

7. Others: explosion-proof, anti-glare, dust-proof, water-proof, electromagnetic screen.


Other Customization Items

1. Appearance customization: support appearance and product color design, sample customization.

2. Working temperature: standard temp is -20~+70°C, support wide working temp: -30~+80°C.

3. LOGO customization.

4. System software: compatible with all software requirements.

5. I/O ports customization: support adding more ports according to your demands.

6. Wide voltage: 12V-24V.

7. Special materials: the monitors are made from aluminum alloy by default, other materials are available.

8. IP protection rating: front IP65 protection level by default, full-sealed dust-proof and waterproof can be customized.

9. Installation methods: support different installation methods for different applications.
