Size: 19.1"
19.1-inch industrial AiO panel PC with touch screen and Windows operating system supports J6412, J4125, J1900 Intel CPU.
Product Color
Industrial Tablet PC Windows All In One PC 19.1"
Model: TPC191-W2
Touch Think industrial tablet PC is designed to operate under harsh industrial conditions. Front IP65 is waterproof and dust-proof. They are designed to withstand vibration and shock, safe during shipment. Support a fanless cooling system, without noise during running. Easy to install & maintain for users. Offer multi-touch capacitive touch and resistive touch screen, also support non-touch for the panel PC according to different applications.
Industrial All In One PC Panel PC with Windows System 19.1"
| Display Parameters | Size | 19.1" | |||||
| Resolution | 1440*900 | ||||||
| Screen Ratio | 16:10 | ||||||
| Brightness | 250~300 nits (Optional high brightness) | ||||||
| Contrast Ratio | 1000:1 | ||||||
| Viewing Angle | 80°/80°/80°/80° (L/R/U/D) | ||||||
| Backlight type | LED backlight screen, service life ≥ 50000H | ||||||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||||||
| Motherboard Model Selection | CL-J1900B | CX-J4125-A | CX-J6412 | CX-12U01 | CX-12U01 | CX-12U01 | |
| i3-1215U | i5-1235U | i7-1255U | |||||
| System Architecture | CPU | Intel Celeron J1900 Quad-Core 2.0GHz | Intel Celeron J4125 Quad-Core 2.0GHz | Intel Celeron J6412 Quad-Core 2.0GHz | Intel Core i3 1215U 1.2GHz | Intel Core i5 1235U 1.3GHz | Intel Core i7 1255U 1.7GHz |
| Architecture | Intel Bay Trail | Intel Gemini Lake Refresh | Intel Elkhart Lake | Intel Alder Lake | |||
| GPU | Intel HD Graphics | Intel UHD Graphics 600 | Intel UHD Graphics 16 EUs | Intel Iris Xe Graphics 64 | Intel Iris Xe Graphics 80 | Intel Iris Xe Graphics 96 | |
| Memory | DDR3 8GB | DDR4 4/8GB | DDR4 8/16GB | DDR4 32GB | |||
| Storage | 16GB (optional: 32/64/128/256/512GB) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 32GB (optional: 64/128/256/512GB, 1T/2T HDD) | 64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD) | |||
| SATA | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | 1*SATA3.0 | |||
| MSATA | 1*MSATA | 1*MSATA | 1*MSATA | / | |||
| M.2 | / | / | 1*M.2 | 1*M.2 | |||
| Operating System | Win 7/10 | Win 10/11 | Win 10/11 | Win 10/11 | |||
| Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04 | / | ||||||
| Centos7.4/7.8/7.9; Redhat7.4; Debian11.6 | Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6 | / | |||||
| Networking | Ethernet | 2*10M/100M/1000M adaptive Ethernet | |||||
| 4G | Support | ||||||
| 5G | / | / | / | M.2 5G | |||
| WIFI | Dual-band 2.4/5GHz | ||||||
| Bluetooth | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | BT4.0 (Optional) | |||
| Display Function | LVDS | Support 1920*1080 60Hz output | |||||
| EDP | Supports 3840*2160 60Hz output | Supports 4096*2160 60Hz output | Supports 4096*2304 120Hz output | ||||
| VGA | Support 1920*1080 60Hz output | ||||||
| HDMI | Supports 3840*2160 30Hz output | Supports 4096*2160 30Hz output | Supports 4096*2304 60Hz output | ||||
| Touch Function | Touch Interface | USB | USB | USB | USB | ||
| I/O Ports | USB 2.0 | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*4 on board | USB2.0*2 + USB2.0*2 on board | USB2.0*2 + USB2.0*4 on board | ||
| Type-C | / | / | / | 2*type-c | |||
| USB 3.0 | / | USB3.0*2 | USB3.0*2 | USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C) | |||
| RS232 | 6*RS232 (one of which is for RS232/RS422/RS485 mutual conversion) | ||||||
| RS485 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| RS422 | 1*RS232/RS422/RS485 mutual conversion | ||||||
| TTL | / | / | / | / | |||
| GPIO | GPIO*8 (input/output) | ||||||
| SIM Slot | 1*SIM Slot + 1*SIM Slot on board | ||||||
| MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | 1*MINI PCIE | / | |||
| Speaker | 4PIN on board supports 8Ω5W | Built-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier | |||||
| MIC | Support | Support | Support | Support | |||
| Audio Port | 3.5mm earphone jack, support input/output | ||||||
| I/O Expansion | Support | ||||||
| Power | Power Input | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | ||
| Adapter | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 4A | |||
| Mechanical | Dimension | 486*332*63mm | |||||
| Enclosure | Aluminum alloy housing | ||||||
| Cooling System | Fanless | Fanless | Fanless | Fanless | |||

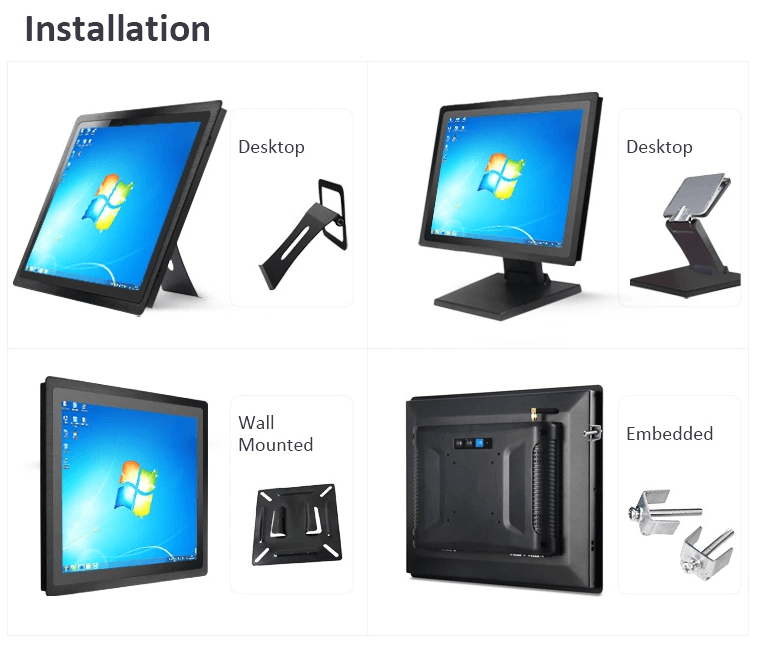

| Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | ||||||
Product Reliability | Working Temp | -10°C ~ 60°C | |||||
| Storage Temp | -20°C ~ 70°C | ||||||
| Ambient Humidity | 5% - 95% (relative humidity non-condensing) | ||||||
| IP rating | Front IP65 | ||||||
19.1-inch industrial All-in-one Panel PCs are suitable use in the following applications:
Industrial Automation:
Field Services Tablet, SCADA HMI Panel PCs, IIoT (Industrial Internet of Things), Automation System Integrator, Smart Manufacturing, process control, Process Automation, etc.
Medical Fields:
Epic Compliant Medical Computers, Radiograph Room (X-Ray), Healthcare Computer, Electronic Medical Records Computer, Hospital Surgery Room, medical cart, Bedside Terminal Panel PC, etc.
Signage Systems:
Interactive Displays, Outdoor Digital Signage, POS Computer, Kiosk Computer, ATM Displays, Vending Machines, Self-service Terminals, Interactive Kiosks, etc.
Transportation System:
Logistics & Transportation Computer, Fleet Management, In-vehicle Panel PC, Marine Panel PC, Heavy Car Industrial Panel PC, etc.
We offer OEM/ODM customization service for global customers, please feel free to contact us for details anytime.
