17 Inch Touch Screen Panel PC OEM ODM Customization

Size: 17"

17-inch touch screen Intel Core Windows 7/10/11 All In One tablet PC is a reliable computing solution, widely used in kiosk solutions, automation, industrial processes, and control projects. With strict testing and robust hardware engineering, our industrial touch panel PCs can easily withstand a series of extreme environmental challenges.

Product Color



17" Industrial Touch Screen Panel PC - Support OEM ODM Customization


Model: TPC170-W2


This 17-inch industrial-grade Windows all-in-one-panel PC is designed to work under harsh industrial conditions, providing a variety of touch control and display solutions for industrial automation, AI, IoT, commercial smart terminals, etc. We offer OEM/ODM customization services in terms of appearance, screen size, screen types, and function modules.



Product Features


● Display Size: 17-inch; 1280*1024

● CPU: Intel J6412, J4125, J1900 options.

● RAM: 4GB DDR3 ( 8GB / 16GB optional ).

● SSD: 64GB ( 128GB / 256GB / 512GB optional ).

● Operation system: Win11 Pro, 64 Bits. (Win 7 / Win 10 / Win 11 / Ubuntu / Debian optional)

● True flat industrial-grade LCD.

● High brightness screen: 1000 Nits.

● Supports UV resistance coating, Anti-glare coating, and sunlight readable.

● IP65 protection for the front panels.

● Long Span-Life Solid-State

● Wide operational temperature range -10°C to +60°C.

● Abundant I/O and Ethernet ports, and is expandable.

● Support automatically powers on after power failure.

● Industrial aesthetic design and Reasonable interface layout.

● Multi-touch screen technologies available: capacitive, resistive, and Non-touch screen.

● Fanless cooling design: offer a silent and low-consumption solution that maximizes heat dissipation.

● Ideal for multiple applications: industrial and commercial, educational, medical, security, financial, and virtualization platforms.




Product Model Quick Guide


ModelLCD DisplayResolutionAspect RatioTouch Screen Type
Get A Quote Now
TPC070-W-QD7"1024*60016:9Capacitive / Resistive / Non-TouchInquiry
TPC080-W-QD8"
1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC101-W210.1"1280*80016:10Capacitive / Resistive / Non-TouchInquiry
TPC104-W210.4"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC116-W211.6"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC120-W212"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC121-W212.1"1280*80016:10Capacitive / Resistive / Non-TouchInquiry
TPC133-W213.3"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC150-W215"1024*7684:3Capacitive / Resistive / Non-TouchInquiry
TPC156-W215.6"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC170-W217"1280*10245:4Capacitive / Resistive / Non-TouchInquiry
TPC173-W217.3"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC185-W218.5"1920*108016:9Capacitive / Resistive / Non-TouchInquiry
TPC190-W219"1280*10245:4Capacitive / Resistive / Non-TouchInquiry
TPC191-W219.1"1440*90016:10Capacitive / Resistive / Non-TouchInquiry
TPC215-W221.5"1920*108016:9
Capacitive / Resistive / Non-TouchInquiry
TPC238-W223.8"1920*108016:9Capacitive / Resistive / Non-TouchInquiry





  • product description
  • Product parameters
  • Application
  • OEM/ODM

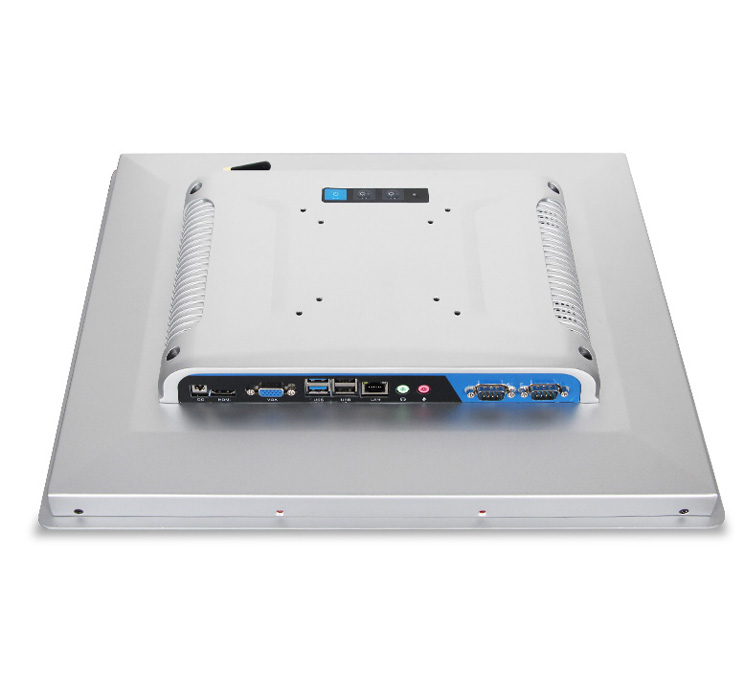

17 Inch Touch Screen Panel PC OEM ODM CustomizationAluminum Alloy Cases and Surface IP65


This 17" industrial panel PC is built from high precision and easy heat dissipation aluminum alloy casing and with a surface IP65 rating dustproof and waterproof panel to meet industrial standards in demanding environments.










17 Inch Touch Screen Panel PC OEM ODM CustomizationMulti-system Adaptability


- At present, the commonly used Windows systems for industrial all-in-one panel PCs generally include Windows 7, Windows 10, Windows 11, and Windows 11 / Win 11 Pro, which can easily import PPT, Word, picture, and video format files, which can make daily operations easier and faster, and provide users with an efficient and easy working environment.


- Support Linux system, The application environment of the Linux system industrial panel PC is more complicated, the performance requirements are higher, and the service life is longer. The Linux system industrial panel computer has the ability to meet various special customization requirements.





17 Inch Touch Screen Panel PC OEM ODM Customization

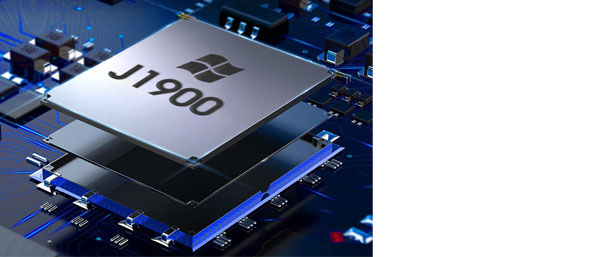

Low-Power Consumption Processor


- CPU: Supports Intel Celeron J4125/J1900/J6412 Quad-core 2.0GHz.

- High reliability, high cost-effectiveness, the best choice for industrial applications.










17 Inch Touch Screen Panel PC OEM ODM Customization

Industrial Control A/A+ level Screens


- Long-span-life LED backlight type.

- Contrast Ratio:1000:1.

- Brightness: 300cd/㎡ (higher brightness is customizable)

- Color: 16.7M

- 24/7 long-time operation







17 Inch Touch Screen Panel PC OEM ODM Customization

Wide Operating Temperature Ranges


- Standard ranges: -10°C to 60°C

- Support customization for super-wide operating temperature ranges, such as -30°C to 80°C.










17 Inch Touch Screen Panel PC OEM ODM Customization


3mm Ultra-Thin Front Bezel, Perfect For Embedded Projects


- This is a Touch Think 2nd-GEN series panel PC, it is engineered with a thin front bezel, excellent for embedding into other cabinets, such as electrical cabinets, kiosk machines, etc.


- Seamless front panel, offers perfect suit with other equipment.









Touch Think Industrial All-in-one PCs Application Casetouch panel PCIntelligent Ticket Selling and Ticket Picking-up Machine


The use of the ticket vending machine greatly shortens the time for passengers to buy tickets and improves the quality of service. With integrity, visibility, and east-to-maintain, Touch Think all-in-one PC is an effective

guarantee for automated business processing.


Installation of anti-peep screen

The screen is equipped with a peep-proof screen to ensure passengers' personal information security.


Functional Module Customization

The industrial all-in-one computers support customized cameras, speakers, thermal printers, ID card readers, etc., which can meet ticket selling, ticket picking-up, safe, convenient, and simple to operate for passengers. The all-in-one PC's back end supports monitor use of the equipment and supports the automatic power-on function.


Working Temperature and High-Bright Screen

The working temperature range of the industrial all-in-one panel PC can reach - 20 ~70°C and the screen brightness is 800cd/m2, which can meet the needs of indoor and outdoor devices.




Multi-mounting Methods for Different Applications


Touch Screen Panel PC OEM ODM Customization 17"






Display ParametersSize17"
Resolution1280*1024
Screen Ratio5:4
Brightness250~300 nits (Optional high brightness)
Contrast Ratio1000:1
Viewing Angle85°/85°/80°/70° (L/R/U/D)
Backlight typeLED backlight screen, service life ≥ 50000H
Touch ScreenCapacitive, Resistive, or Non-touch options






Motherboard Model SelectionCL-J1900B
CX-J4125-ACX-J6412

CX-12U01

CX-12U01CX-12U01
i3-1215Ui5-1235Ui7-1255U
System ArchitectureCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzIntel Core i3 1215U 1.2GHzIntel Core i5 1235U 1.3GHzIntel Core i7 1255U 1.7GHz
ArchitectureIntel Bay TrailIntel Gemini Lake RefreshIntel Elkhart LakeIntel Alder Lake
GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80 Intel Iris Xe Graphics 96
MemoryDDR3 8GBDDR4 4/8GBDDR4 8/16GBDDR4 32GB
Storage16GB (optional: 32/64/128/256/512GB)32GB (optional: 64/128/256/512GB, 1T/2T HDD)32GB (optional: 64/128/256/512GB, 1T/2T HDD)64/128GB (optional: 256GB/512GB SSD, 1T/2T HDD)
SATA1*SATA3.01*SATA3.01*SATA3.01*SATA3.0
MSATA1*MSATA1*MSATA1*MSATA/
M.2//1*M.21*M.2
Operating SystemWin 7/10Win 10/11

Win 10/11

Win 10/11
Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
Centos7.4/7.8/7.9; Redhat7.4; Debian11.6

Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6

/






NetworkingEthernet2*10M/100M/1000M adaptive Ethernet
4GSupport
5G

/

//M.2 5G
WIFIDual-band 2.4/5GHz
BluetoothBT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)BT4.0 (Optional)






Display FunctionLVDSSupport 1920*1080 60Hz output
EDPSupports 3840*2160 60Hz outputSupports 4096*2160 60Hz outputSupports 4096*2304 120Hz output
VGASupport 1920*1080 60Hz output
HDMISupports 3840*2160 30Hz outputSupports 4096*2160 30Hz outputSupports 4096*2304 60Hz output
Touch FunctionTouch InterfaceUSBUSBUSBUSB
I/O PortsUSB 2.0USB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*4 on boardUSB2.0*2 + USB2.0*2 on boardUSB2.0*2 + USB2.0*4 on board
Type-C///2*type-c
USB 3.0/USB3.0*2USB3.0*2USB3.0*2 + USB3.0*2 on board (converted by 2*Type-C)
RS2326*RS232 (one of which is for RS232/RS422/RS485 mutual conversion)
RS4851*RS232/RS422/RS485 mutual conversion
RS4221*RS232/RS422/RS485 mutual conversion
TTL////
GPIOGPIO*8 (input/output)
SIM Slot1*SIM Slot + 1*SIM Slot on board
MINI PCIE1*MINI PCIE1*MINI PCIE1*MINI PCIE/
Speaker4PIN on board supports 8Ω5WBuilt-in dual-channel 4R/10W or 8R/5W dual-channel power amplifier
MICSupportSupportSupportSupport
Audio Port3.5mm earphone jack, support input/output
I/O Expansion Support






PowerPower Input12-36V DC12-36V DC12-36V DC12-36V DC
Adapter24V / 2.5A24V / 2.5A24V / 2.5A24V / 4A

MechanicalDimension414*345*63mm
EnclosureAluminum alloy housing
Cooling SystemFanlessFanlessFanlessFanless
MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product

Reliability

Working Temp -10°C ~ 60°C
Storage Temp -20°C ~ 70°C
Ambient Humidity 5% - 95% (relative humidity non-condensing)
IP ratingFront IP65



































17-inch industrial touch screen AIO Panel PC Applications


All Touch Think 2nd-GEN series of industrial panel PCs are built with the ultra-thin front bezel, which is quite suited for embedded into other equipment.


17 Inch Touch Screen Panel PC OEM ODM Customization







17-inch industrial touch screen AIO Panel PC support multi-customization items in terms of appearance, LOGO, configuration, CPU, screen size, and color, etc.

Please feel free to contact us to discuss the details.
