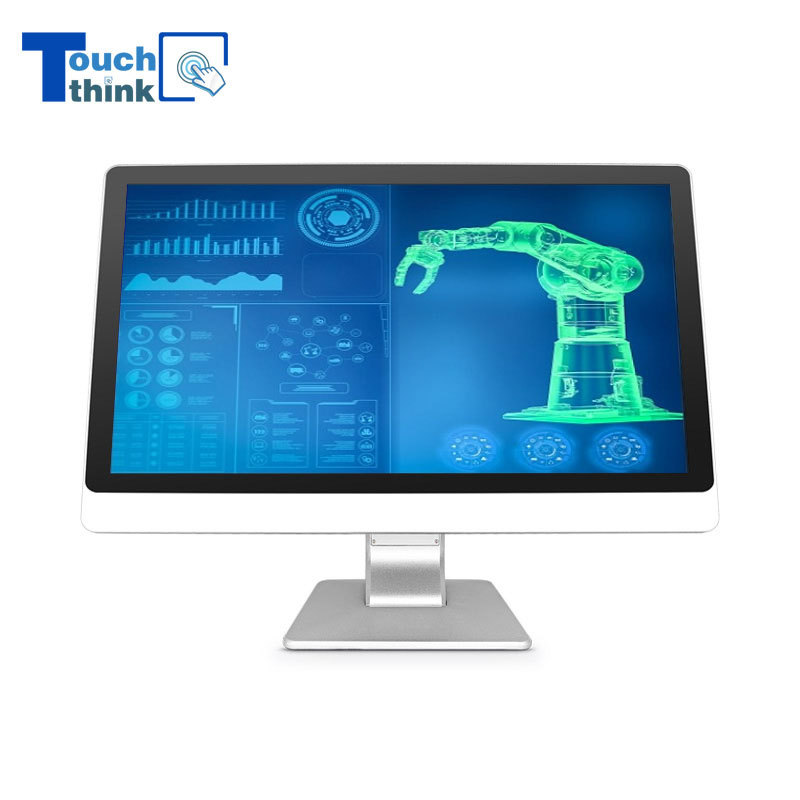

Rugged LCD Monitors Displays For Industrial Production 15.6 Inch

Size: 15.6"

The 15.6-inch screen is ideal for most industrial work setups, its HD graphics bring excellent display quality, and zoom in or out on this Touch Think one-point touch industrial-grade monitor brings incredibly clear results for operators.

Product Color

  • 8”

  • 10.1”

  • 10.4”

  • 11.6”

  • 12”

  • 15”

  • 15.6”

  • 17”

  • 17.3”

  • 19”

  • 19.1”

  • 21.5”


8 inch industrial monitor


10.1 inch industrial monitor


10.4 inch industrial monitor


11.6 inch industrial monitor


12 inch industrial monitor


15 inch industrial monitor


15.6 inch industrial monitor


17 inch industrial monitor


17.3 inch industrial monitor


19 inch industrial monitor


19.1 inch industrial monitor


21.5 inch industrial monitor

  • product description
  • Product parameters
  • Application
  • OEM/ODM

Rugged LCD Monitors Displays For Industrial Production 15.6"

Touch Think manufacturers a wide variety of industrial grade displays with mounting designs and

flexible mounting solutions such as panel mount, wall/VESA mount, fully-enclosed gasket sealed,

embedded mount, open frame and table top. The industrial monitors are available with enhance-

ments such as high brightness and sunlight readable technology, shock & vibration resilient com-

ponents, like industrial-grade motherboards, EMI protection, and wide operational temperatures

and wide voltage. Environmentally sealed protection for the whole shell, IP65 dustproof & water-

proof ratings (front panel) enable these harsh duty displays to be used in applications where dirt,

dust, moisture, water and other foreign debris can be present in the work environment.


Touch Think industrial displays can be custom designed to meet customer's exact needs, and are

available with several touch screen technologies including multi-touch capacitive, single-touch style

resistive, or projective capacitive (PCAP).

Touch Think Industrial Monitor Show

Rugged LCD Monitors Displays For Industrial Production 15.6"

Features of Touch Think Industrial Display

● 15.6-inch bright active matrix TFT display.

● Base video inputs: VGA, HDMI, display port

● High contrast ratio & definition, excellent vivid color and image quality.

● Rugged aluminum alloy housing.

● Fanless design, no-noise running, energy efficient, low power consumption.

● IP65 rating dustproof & waterproof for front panel. High environmental reliability and performance.

● Support anti-reflective protective window.

● Wide screen aspect ratio 16:9 and 1920 x 1080 resolution.

● Wide Operational Temperature Range, -10°C to +60°C. Support extended temperature ranges.

● Full-sealed front bezel, support OSD on back of panel.

● CE, RoHS compliant.

● Three (3) Year Warranty.

Touch Think Industrial Monitors Upgradable Items

Rugged LCD Monitors Displays For Industrial Production 15.6"

Application of Touch Think Industrial Monitors

Metal Case Industrial Touch Screen Monitor 15.6"








Screen parametersScreen size15.6 inch
ModelTPC156-M42
Resolution1920*1080
Proportion16:9 widescreen
Gray-scale response time5ms
Panel Type IndustrialControl A style TFT
Point distance

0.264mm

Contrast1000:1
Backlight type LED, use length≥50000h
Display color

16.7M

Visual angle160/160 (178° full view angle customizable)
Brightness 400cd/m2 (customizable high brightness)
Touch-typeResistive (capacitive / mouse control for optional)
Number of touches≥ 50 million times
Other parametersPower Supply4A External Power Adapter
Power Performance100-240V, 50-60HZ
Input voltage12-24V
Anti-staticContact 4KV-air 8KV (≥16KV can be customized)
Power≤48W
Anti-vibrationGB2423 standard
Anti-interferenceEMC|EMI anti-electromagnetic interference
Dustproof and waterproofFront panel IP65 dustproof and waterproof
Housing MaterialBlack/Silver, Aluminum Alloy
Installation methodEmbedded, desktop, wall-mounted, VESA 75, VESA 100, panel mount, open frame.
Ambient temperature<80%, non-condensable
Working temperature-10°C~60°C (customizable -30°C~80°C)
Language menuChinese, English, German, French, Korean, Spanish, Italian, Russian
O/I interface parametersSignal InterfaceDVI, HDMI, VGA
Power connectorDC with ring attachment (optional DC terminal block)
Touch interfaceUSB
Other interfacesAudio input and output
