Touch Think Industrial Non-Touch Screen Monitor

Jun. 15, 2022

7” to 21.5" Non-Touch, Industrial-Grade High MTBF Monitors



Our Business

Touch Think® is a brand-leading manufacturer, offering advanced industrial-grade touch/non-touch control and display solutions to the automation markets including industrial automation, building automation, electrical automation, manufacturing automation, process automation, equipment manufacturing, life sciences, energy, and transportation, etc.


Our spectacular 7-inch to 23.8-inch industrial displays provide brilliant resolution visual aid to most harsh environments. Built to be fully compatible with VESA 75/100 mounts while being a breeze to install. Our industrial monitors incorporate a modern minimalistic design for maximum compatibility.



All Touch Think industrial monitors are designed and built to withstand oil, dust, high and low temperature, and high vibrations environments. In terms of installation, these monitors support panel-mount, desktop, embedded, wall-hanging, and open frames. And comes with capacitive, resistive, and Non-touch screens as per different applications' requests.



Take Touch Think 15-inch industrial monitor as an example.



We have three best-selling series for these 15-inch monitors, the 2nd-GEN series, the 4th-GEN series, and the 5th-GEN series.

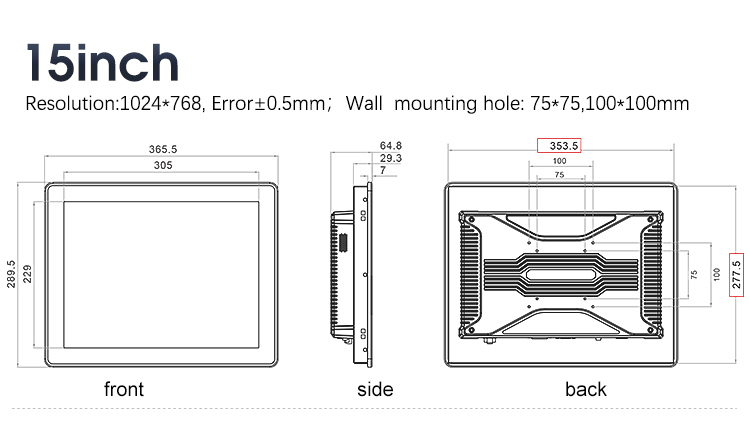

Main features of 2nd-GEN industrial monitors

Models at glance

Touch Screen Types

Model Name

Capacitive touch screen

TPC150-M21

Resistive touch screen

TPC150-M22

Non-touch screen

TPC150 / TPC150-M200


● 15-inch display, square screen, 4:3 aspect ratio

● Fully sealed enclosure, front IP65

● Aluminium alloy housing

● VGA or HDMI or DVI

● Designed for multi-purpose functionality

● 3mm ultra-thin front bezel, easy for panel-mount, and embedded mount. Suitable for kiosks, industrial/retail/medical machines, and more.


Touch Think Industrial Non-Touch Screen Monitor

Touch Think Industrial Non-Touch Screen Monitor

Touch Think Industrial Non-Touch Screen Monitor

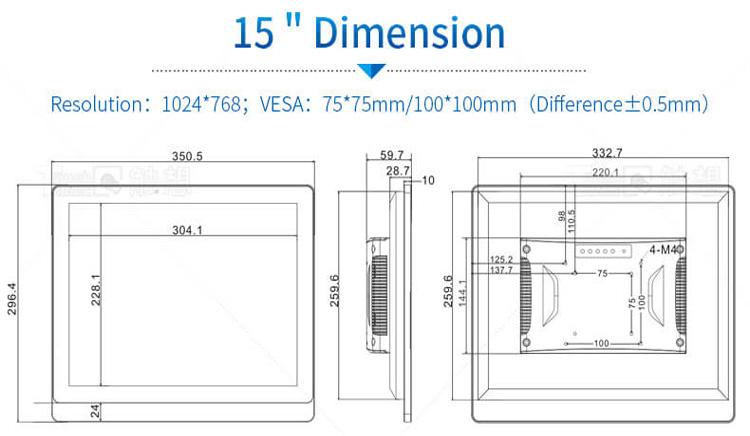

Main features of 4th-GEN industrial monitors

Models at glance

Touch Screen Types

Model Name

Capacitive touch screen

TPC150-M41

Resistive touch screen

TPC150-M42

Non-touch screen

TPC150-M40



● 15-inch display, square screen, 4:3 aspect ratio

● Fully sealed enclosure, front IP65

● Aluminium alloy housing

● VGA or HDMI or DVI

● Designed for multi-purpose functionality

● 10mm front bezel, suitable for VESA mount, desktop, and wall-hanging, presenting excellent impact resistance performance in high-intense environments, such as industrial equipment manufacturing sites and factory automation floors.


Touch Think Industrial Non-Touch Screen Monitor

Touch Think Industrial Non-Touch Screen Monitor

Touch Think Industrial Non-Touch Screen Monitor

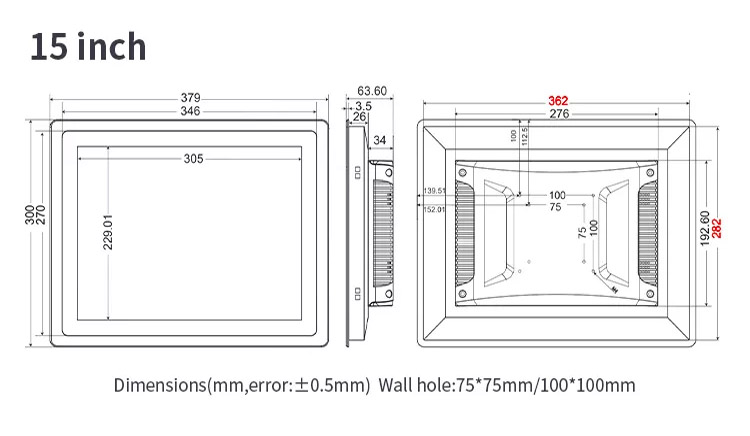

Main features of 5th-GEN industrial monitors

Models at glance

Touch Screen Types

Model Name

Capacitive touch screen

TPC150-M51

Resistive touch screen

TPC150-M52

Non-touch screen

TPC150-M500 / TPC1507A



● 15-inch display, square screen, 4:3 aspect ratio

● Fully sealed enclosure, front IP65

● Aluminium alloy housing

● VGA or HDMI or DVI

● Engineered with a rugged enclosure

● 7mm front bezel, support panel-mount, embedded, VESA mount, desktop, and wall-hanging. Suitable for multiple applications, including Industry 4.0, process automation, Robots, public area equipment, kiosk equipment, mining, and various industrial equipment and harsh sites.


Touch Think Industrial Non-Touch Screen Monitor

Touch Think Industrial Non-Touch Screen Monitor

Touch Think Industrial Non-Touch Screen Monitor


After viewing a brief description of the three series industrial monitors, you can figure out the main difference among them are the thickness of front bezels, and which decided their installation and applications.



Spec Sheet Details for Touch Think 15-inch Industrial monitors

Size

15-inch monitor

Panel Type

Industrial LCD panel A+ grade

Aspect Ratio

4:3

Resolution

1024*768

Contrast

1000:1

Luminance

500nit

MTBF (LCD)

70000Hr.

Response time

5ms

Active Area (mm)

305.8*229.8mm

Display colors

16.7M(8-bit)

Interface

VGA/DVI/HDMI/USB

Power Input

AC 110-240V, 50/60Hz

Operation Temperature

-20°C-70°C

Storage Temperature

-30°C-80°C

Operation Humidity

10%--80%

Storage Humidity

10%-90%

Menu Languages

English/Portuguese/French…etc.

Certificate of Approval

CE, FCC, RoHS, ISO, IP65

Installation

VESA, Embedded, Wall Mount, Desktop, Panel Mount

IP-rating

Front IP65 dustproof and waterproof

View angle

88/88/88/88

Touch Screen

NON-Touch Screen or Touch Screen

Color

Silver & Black

Material

Aluminum Alloy
