21.5 inch Inch Industrial Panel Mount PC, Full HD Display, IP65 Waterproof Front, Wide Voltage 12–36V

Size: 21.5"

With its Full HD display, IP65 waterproof front, wide voltage input, and rugged fanless design, this 21.5-inch industrial panel PC is engineered for industrial automation and mission-critical operations. It provides a reliable, high-performance solution for organizations needing a large, durable, and visually clear industrial touch computer.

Product Color

Black Silvery

Inquiry Now Next Product

product description
Product parameters
Application
OEM/ODM

Model: TPC215-A28

The 21.5-inch Industrial Panel Mount PC delivers crystal-clear Full HD resolution, rugged construction, and wide voltage support (12–36 V) for reliable operation in harsh industrial environments. Designed for factory automation, machine control, and HMI (Human-Machine Interface) systems, this panel PC ensures round-the-clock stability in dusty, wet, or vibration-heavy settings.

Full HD Display for Precision

A 1920 × 1080 Full HD LCD provides sharp visuals for detailed process monitoring and data visualization. Wide viewing angles and high brightness allow operators to clearly see critical information on production lines, control rooms, and outdoor kiosks.

IP65 Waterproof Front Panel

The IP65-rated front bezel protects against water jets, oil splashes, and airborne dust, making it ideal for food processing plants, chemical factories, and outdoor installations. The flat, easy-to-clean surface supports projected capacitive (PCAP) touch, enabling smooth, glove-friendly operation.

Wide 12–36 V DC Input

A wide-range 12–36 V DC power input allows flexible integration with different power systems, from factory control cabinets to vehicle-mounted equipment. Built-in protections guard against voltage fluctuations, ensuring stable performance in demanding industrial sites.

Rugged Design & Fanless Cooling

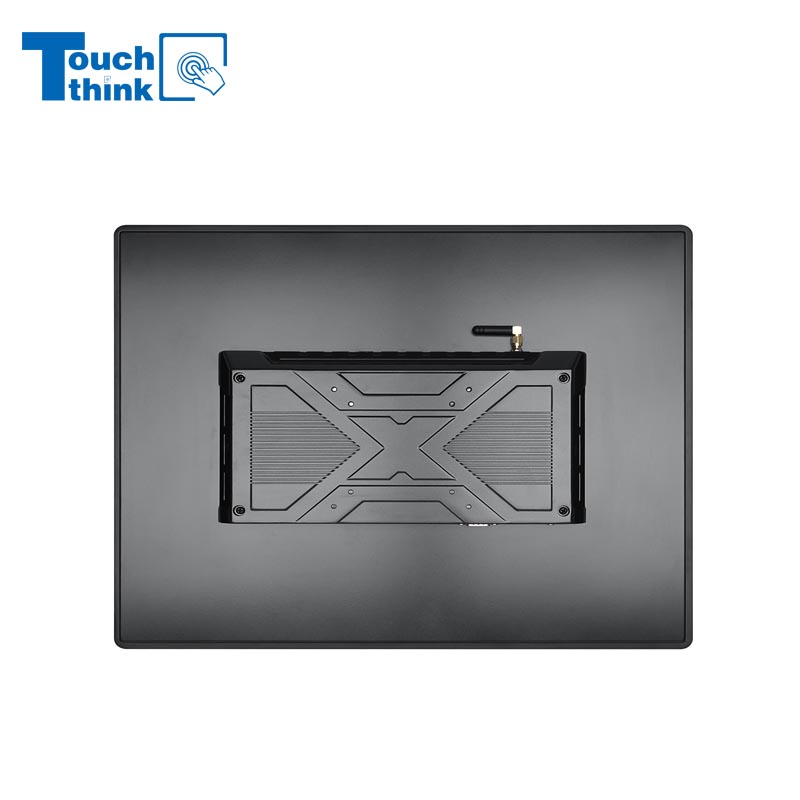

The fanless aluminum chassis enhances durability and reduces maintenance. This silent design resists vibration and minimizes dust ingress, providing dependable 24/7 industrial computing for years of continuous service.

Versatile Connectivity

Rich I/O ports—USB, RS-232/422/485, and dual Gigabit Ethernet—support PLC connections, sensors, cameras, and IoT networks. An optional Wi-Fi, Bluetooth, or 4G module enables remote monitoring and cloud integration.


Display Parameters	Model	TPC215-A28
	Size	21.5"
	Resolution	1920*1080
	Aspect Ratio	16:9
	Contrast	1000:1
	Display Color	16.7M
	Brightness	250~300cd/㎡ (Optional high brightness)
	Visual Angle	89°/89°/89°/89° (L/R/U/D)
	Backlight Type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		CX3568-Z	CX3588-Z
System Architecture	CPU	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.4GHz
	Core Architecture	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	ARM Mali-G52 MP2	ARM Mali G610 MP4
	Memory (DDR)	2GB (4/8GB optional)	8GB (16GB optional)
	Storage (eMMC)	32GB (64/128/256GB optional)	64GB (256GB optional)
	SATA	/	/
	Operating System	Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11	Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11

Networking	Ethernet	11000M (21000M Ethernet options)	11000M Ethernet (11000M + 1*100 Mbit Ethernet options)
	4G	Optional. Based on the 4G module selection	Optional. Based on the 4G module selection
	WIFI	WIFI6, Dual-band 2.4/5GHz	WIFI6, Dual-band 2.4/5GHz
	Bluetooth	BT5.3	BT5.3

Display Function	LVDS	Support 1920*1080 60Hz output
	EDP	Support 1920*1080 60Hz output
	MIPI	Support 1920*1080 60Hz output
	Mipi Camera	30-pin FPC interface, supports 1300W Camera
	HDMI Output	HDMI 2.0, support 4K 3840*2160 60Hz output	HDMI 2.1, support 8K 7680*4320 60Hz output
	HDMI Input	/	/
Touch Function	Touch Interface	USB/IIC	USB/IIC
I/O Ports	MICRO USB	/	/
	USB 2.0	USB2.02 HOT(This can change to Gigabit Ethernet port), USB2.05 on board	USB2.02 HOT(This can change to Gigabit Ethernet port), USB2.03 on board
	USB 3.0	USB3.02 (including OTG1)	USB3.02（including OTG1)
	RS232	RS232*3	RS232*3
	RS485	RS485*3	RS485*3
	TTL	TTL*2	TTL*2
	GPIO	GPIO*12 (input/output)	GPIO*6 (input/output)
	SIM Slot	Support	Support
	TF Slot	Support	Support
	CAN	CAN*1	CAN*1
	Speaker	3.5mm standard Jack	3.5mm standard Jack
	MIC	Support	Support
	Audio Port	3.5mm earphone jack, supports input/output	3.5mm earphone jack, supports input/output
	I/O Expansion	Available	Available

Power	Power Input	DC 12~36V	DC 12~36V
Power	Adapter	24V / 2.5A	24V / 2.5A

Mechanical	Enclosure	Aluminum alloy housing	Aluminum alloy housing
	Cooling System	Fanless	Fanless
	Mounting	Desktop, wall-mounted, VESA75/100mm, ceiling-mounted

Product Reliability	Working Temp	-10°C ~ 60°C	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C	-20°C ~ 70°C
	Ambient Humidity	20% - 95% (relative humidity non-condensing)	20% - 95% (relative humidity non-condensing)
	IP rating	Front IP65	Front IP65
