Size: 7"
When space is tight but power matters, the 7-inch Compact Industrial Panel PC delivers a perfect mix of small size, rugged durability, and multi-OS versatility. Powered by a high-performance ARM Cortex processor, it runs both Android and Linux to support factory automation, IoT, and edge-computing applications.
Product Color
Model: TPC070-A28
When space is limited but performance is critical, the 7 inch Compact Industrial Panel PC provides the ideal balance of small form factor, rugged design, and multi-OS flexibility. Built around a powerful ARM Cortex processor, this industrial touch computer supports both Android and Linux to meet the diverse needs of factory automation, IoT, and edge-computing environments.
ARM Cortex Processing Power
The efficient ARM Cortex CPU delivers reliable multitasking and low-power operation, ensuring stable 24/7 performance on the factory floor or in remote installations. Its architecture supports real-time control, HMI dashboards, and IoT data collection without excessive heat generation.
Flexible Android & Linux Operating Systems
Choose between Android for easy app deployment or Linux for advanced industrial software and custom integrations. Preconfigured OS options simplify installation and reduce setup time, allowing fast deployment in smart manufacturing, kiosks, or embedded control systems.

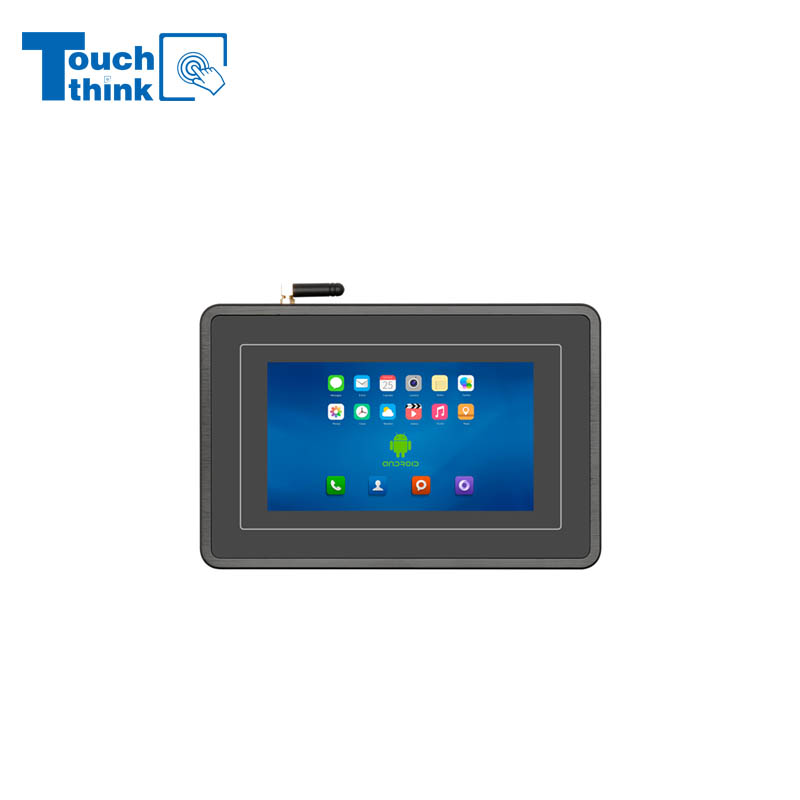

Compact 7 Inch Touchscreen
The 7 inch capacitive touch display offers crisp visuals and responsive multi-touch control, even when operators wear light gloves. Its high brightness and wide viewing angles ensure excellent readability in bright production areas or semi-outdoor environments.
Rugged, Fanless Construction
Designed for harsh industrial settings, the panel PC features a fanless aluminum housing, wide operating temperature range, and protection against dust, vibration, and shock. This maintenance-free design guarantees long-term reliability in continuous operations.

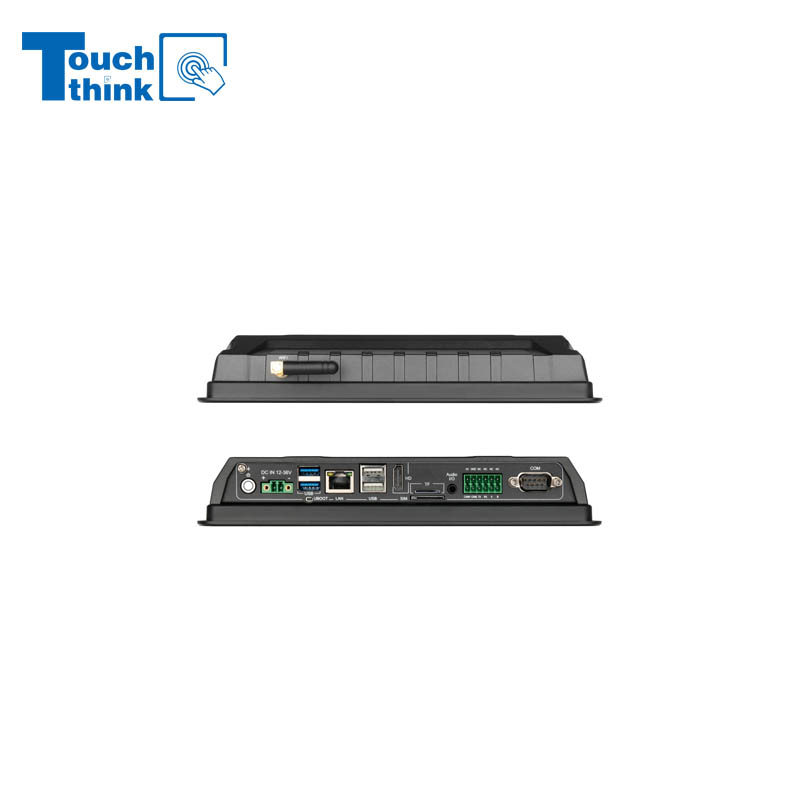

Rich Connectivity & Expansion
Multiple I/O interfaces—including USB, RS-232/422/485, and dual Gigabit Ethernet—make it easy to integrate with PLCs, sensors, barcode scanners, and IoT gateways. Optional Wi-Fi, Bluetooth, and 4G module enable remote monitoring and cloud connectivity.
| Display Parameters | Model | TPC070-A28 | |
| Size | 7" | ||
| Resolution | 1024*600 | ||
| Aspect Ratio | 16:9 | ||
| Contrast | 1000:1 | ||
| Display Color | 16.7M | ||
| Brightness | 500cd/㎡ (Optional high brightness) | ||
| Visual Angle | 89°/89°/89°/89° (L/R/U/D) | ||
| Backlight Type | LED backlight screen, service life ≥ 50000H | ||
| Touch Screen | Capacitive, Resistive, or Non-touch options | ||
| Motherboard Model Selection | CX3568-Z | CX3588-Z | |
| System Architecture | CPU | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.4GHz |
| Core Architecture | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
| GPU | ARM Mali-G52 MP2 | ARM Mali G610 MP4 | |
| Memory (DDR) | 2GB (4/8GB optional) | 8GB (16GB optional) | |
| Storage (eMMC) | 32GB (64/128/256GB optional) | 64GB (256GB optional) | |
| SATA | / | / | |
| Operating System | Android 12/14, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | Android 13.0, Linux 5.10, Ubuntu 20.04/22.04, Debian 11 | |
| Networking | Ethernet | 1*1000M (2*1000M Ethernet options) | 1*1000M Ethernet (1*1000M + 1*100 Mbit Ethernet options) |
| 4G | Optional. Based on the 4G module selection | Optional. Based on the 4G module selection | |
| WIFI | WIFI6, Dual-band 2.4/5GHz | WIFI6, Dual-band 2.4/5GHz | |
| Bluetooth | BT5.3 | BT5.3 | |
| Display Function | LVDS | Support 1920*1080 60Hz output | |
| EDP | Support 1920*1080 60Hz output | ||
| MIPI | Support 1920*1080 60Hz output | ||
| Mipi Camera | 30-pin FPC interface, supports 1300W Camera | ||
| HDMI Output | HDMI 2.0, support 4K 3840*2160 60Hz output | HDMI 2.1, support 8K 7680*4320 60Hz output | |
| HDMI Input | / | / | |
| Touch Function | Touch Interface | USB/IIC | USB/IIC |
| I/O Ports | MICRO USB | / | / |
| USB 2.0 | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*5 on board | USB2.0*2 HOT(This can change to Gigabit Ethernet port), USB2.0*3 on board | |
| USB 3.0 | USB3.0*2 (including OTG*1) | USB3.0*2（including OTG*1) | |
| RS232 | RS232*3 | RS232*3 | |
| RS485 | RS485*3 | RS485*3 | |
| TTL | TTL*2 | TTL*2 | |
| GPIO | GPIO*12 (input/output) | GPIO*6 (input/output) | |
| SIM Slot | Support | Support | |
| TF Slot | Support | Support | |
| CAN | CAN*1 | CAN*1 | |
| Speaker | 3.5mm standard Jack | 3.5mm standard Jack | |
| MIC | Support | Support | |
| Audio Port | 3.5mm earphone jack, supports input/output | 3.5mm earphone jack, supports input/output | |
| I/O Expansion | Available | Available | |
| Power | Power Input | DC 12~36V | DC 12~36V |
| Adapter | 24V / 2.5A | 24V / 2.5A | |
| Mechanical | Enclosure | Aluminum alloy housing | Aluminum alloy housing |
| Cooling System | Fanless | Fanless | |
| Mounting | Desktop, wall-mounted, VESA75/100mm, ceiling-mounted | ||
| Product Reliability | Working Temp | -10°C ~ 60°C | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C | -20°C ~ 70°C | |
| Ambient Humidity | 20% - 95% (relative humidity non-condensing) | 20% - 95% (relative humidity non-condensing) | |
| IP rating | Front IP65 | Front IP65 | |
Ideal Applications
1. Factory Automation & HMI – Real-time process monitoring in tight control panels.
2. IoT Edge Devices – Reliable data collection and local processing.
3. Retail & Kiosk Systems – Compact interactive displays for customer engagement.
4. Transportation & Energy – Embedded control for fleet management and smart grids.
